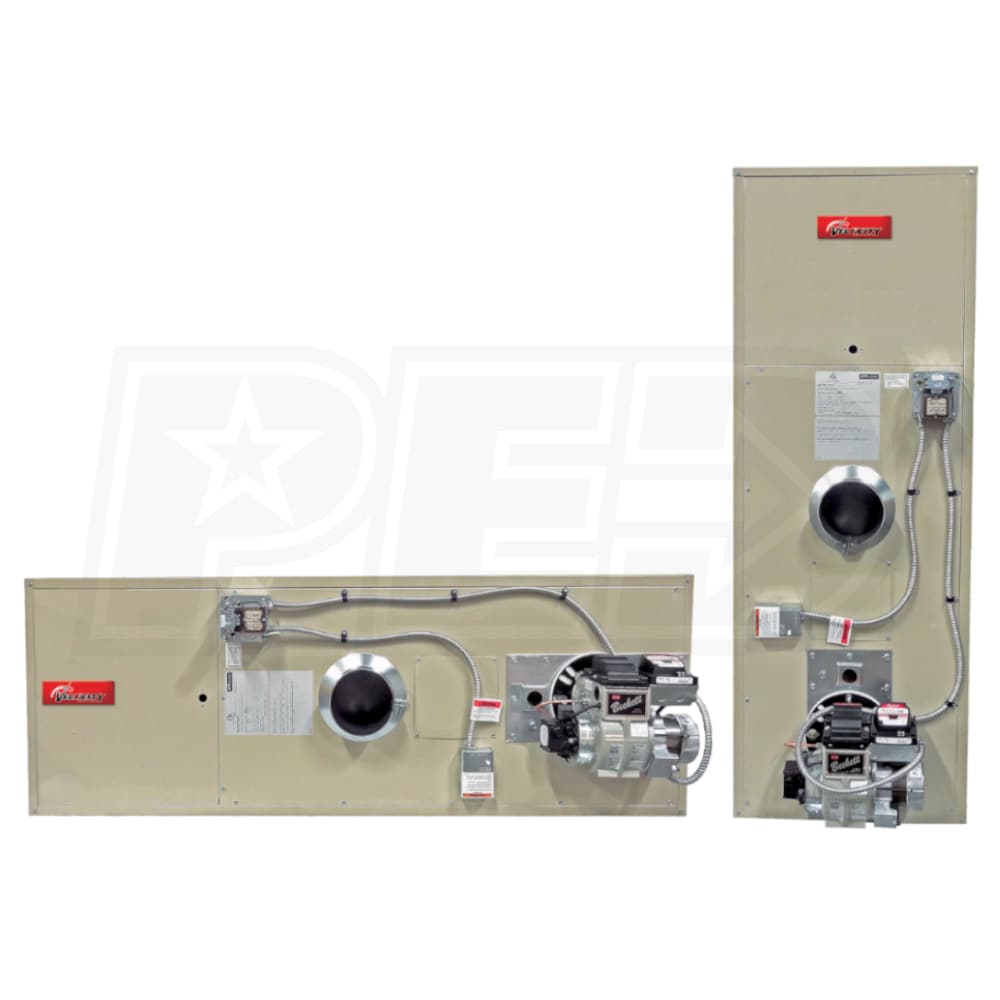

Crown Boiler Horizontal/Counterflow - 97K BTU - Oil Furnace - 85% AFUE



Write A Review
Free Shipping
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Ships in 2-3 Weeks
synchrony card logo
$58 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Crown Boiler Horizontal/Counterflow - 97K BTU - Oil Furnace - 85% AFUE
Crown Boiler Horizontal/Counterflow - 97K BTU - Oil Furnace - 85% AFUE
Model: VCHC68-96CBP
Product Q&A
How-To Articles

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10


    The Crown Oil Furnace includes a heavy gauge, drum-style heat exchanger to provide powerful forced air heating. The oil furnace features a ceramic fiber combustion chamber along with a multi-speed blower motor to heat your home quickly and efficiently. With a limited lifetime warranty on the heat exchanger, you can be confident that the Crown Oil Furnace will provide comfort for years to come.
  • Crown VCHC68-96CBP Features
  • Heavy Gauge, Drum-Style Heat Exchanger
  • Ceramic Fiber Combustion Chamber
  • Heavy Duty 22-Gauge Powder Coated Cabinet
  • Multi-Speed Direct Drive Blower Motor
  • Limited Lifetime Warranty on Heat Exchanger
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to:


specs product image PID-103190
Product Category
General Information
Oil Furnace
Product Sub-line
Horizontal/Counter Flow
Product Category
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging Learn More
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Motor Type
PSC Multi-Speed
Mount Type
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
AFUE Learn More
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85 %
Heating BTU
High Fire Output
97000 BTU
Low Fire Output
69000 BTU
Electrical Data
120 Volts
60 Hz
Flue Connection Size
6 Inches
Product Height
61 1/4 Inches
Product Width
22 1/4 Inches
Product Depth
22 1/4 Inches
Shipping Weight
280 Pounds
ETL Listed
AHRI Certified
AHRI Reference Number
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
20 Years
