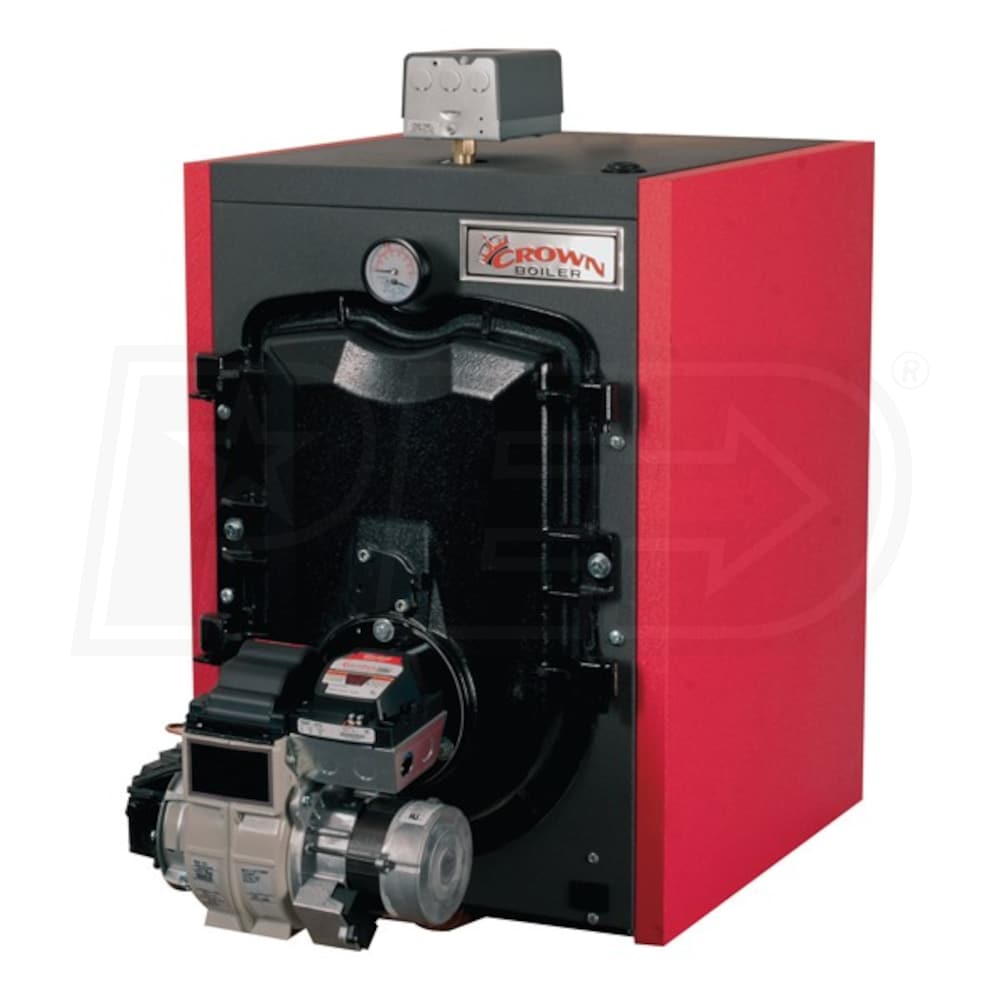

Crown Boiler FWZ060 - 73K BTU - 86.0% AFUE - Hot Water Oil Boiler - Chimney Vent

Model:

FWZ060BOLT1SSU

Recommended
Write a Review
$2,891.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
synchrony card logo
$51 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Crown Boiler FWZ060 - 73K BTU - 86.0% AFUE - Hot Water Oil Boiler - Chimney Vent
Crown Boiler FWZ060 - 73K BTU - 86.0% AFUE - Hot Water Oil Boiler - Chimney Vent
Model: FWZ060BOLT1SSU
$2,891.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    The Crown Freeport boiler is an oil fired boiler designed from the ground up to maximize reliability across every part of construction. At its core is a three-pass cast iron heat exchanger - the heat from the burned flue gases is circulated three times throughout the heat exchanger, maximizing the heat energy transferred to the water circulating within. A front side swinging burner door provides easy access to all heating surfaces, making routine maintenance an easy task. An included control tops off the feature list of the Freeport, providing thermal purge functionality for increased efficiency.
  • Three-Pass Cast Iron Heat Exchanger
  • The Freeport series of oil fired boilers uses a three-pass cast iron heat exchanger. The combusted flue gases pass three times over the heat exchanger, maximizing the amount of heat energy transferred to the heat transfer medium.
  • Easy-Access Front-Opening Door
  • The Freeport burner orifice is located on a front opening burner door. All heating surfaces can be accessed for cleaning using this door, making cleaning and maintenance a breeze.
  • Included Thermal Purge Control
  • All Freeport boilers come equipped with a control that provides thermal purge functionality for the boiler. This involves transferring any residual heat left inside the boiler after burner firing to the system medium, increasing efficiency.
  • Included Beckett AFG Burner
  • This boiler comes with a Beckett AFG oil burner included. Beckett is a well known industry burner brand whose burners have proven reliable and efficient in thousands of boiler installs.
  • Product Includes
  • Freeport Oil Fired Boiler with Heat Exchanger
  • Taco Circulation Pump
  • Beckett AFG Burner
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

FWZ060BOLT1SSU
specs product image PID-24094
General Information
Product Line
Freeport
Medium Learn More
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Oil
Combustion Type Learn More
Conventional
Vent Type Learn More
Chimney Vent
DHW Production Learn More
No
Modulating/Staging Learn More
Single Stage
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Beckett AFG
Performance
AFUE Learn More
86 %
Input Rate
0.6 GPH
DOE Heating Capacity Learn More
73000 BTU
Net I=B=R Capacity Learn More
63000 BTU
Maximum Operating Pressure
50 PSI
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
7.7 Gallons
Flue Connection Size
5 Inches
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
35 7/8 Inches
Product Width
16 1/4 Inches
Product Depth
20 3/4 Inches
Product Weight
430 Pounds
Certifications
Country of Origin
United States
AHRI Certified
Yes
AHRI Reference Number
5433306
Warranty Information
Parts Warranty Learn More
1 Year
Heat Exchanger Warranty
20 Years
