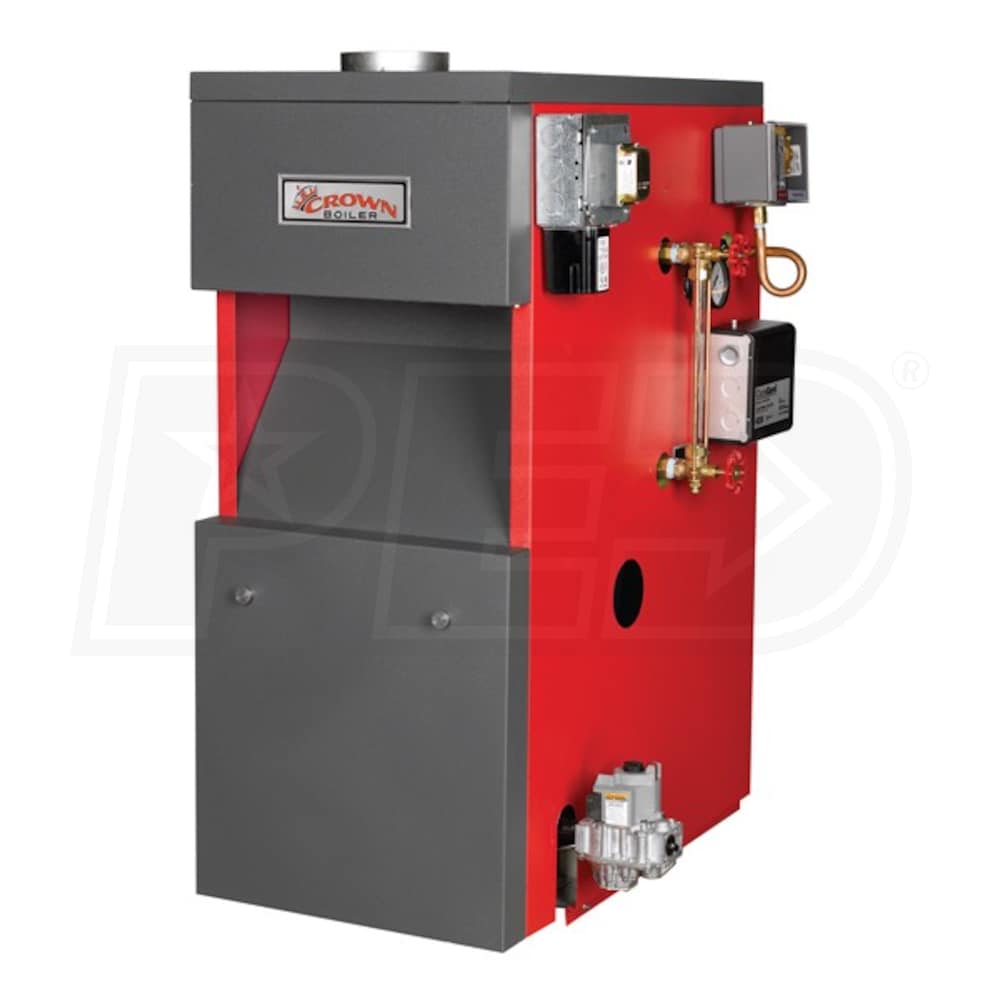

Crown Boiler Bermuda - 64K BTU - 82.0% AFUE - Steam Gas Boiler - Chimney Vent

Model:

BSI103ENPZZPSU

Write a Review
$2,471.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
synchrony card logo
$412 / Month
Suggested monthly payments with 6 month financing.
Crown Boiler Bermuda - 64K BTU - 82.0% AFUE - Steam Gas Boiler - Chimney Vent
Crown Boiler Bermuda - 64K BTU - 82.0% AFUE - Steam Gas Boiler - Chimney Vent
Model: BSI103ENPZZPSU
$2,471.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The Bermuda boiler from Crown is a steam boiler designed to be installed in a wide variety of locations. At its core is a cast iron heat exchanger, a material that ensures maximum heat transfer from your fuel source to the steam itself while holding up to years of use. An automatic vent damper is included, regulating the flow of flue exhaust to your home's chimney, and a built-in draft diverter allows the boiler to fit into low-clearance spaces. As long as it isn't carpeting, the Bermuda can be installed on combustible flooring without an issue. An attractive, rugged jacket tops off the Bermuda's feature list, making it an excellent addition to any home that requires a steam boiler.
  • Cast Iron Heat Exchanger
  • The heat exchanger at the core of the Bermuda is made of durable cast iron, a material proven many times over for its reliability in heating applications and efficiency in heat transfer.
  • Low Clearance Draft Diverter
  • Crown's Bermuda line of boilers come with a low height, automatic draft diverter, allowing it to be installed in low clearance areas or in areas with complicated venting configurations.
  • Installable on Combustible Floors
  • The Bermuda boiler line is designed for installation on combustible flooring. It is safe to install on any traditional utility room flooring from concrete to laminate.
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

BSI103ENPZZPSU
specs product image PID-24031
General Information
Product Line
Bermuda
Medium Learn More
Steam
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Natural Gas
Combustion Type Learn More
Conventional
Vent Type Learn More
Chimney Vent
DHW Production Learn More
No
Modulating/Staging Learn More
Single Stage
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Includes Pump
No
Assembly Type
Packaged
Performance
AFUE Learn More
82 %
Maximum Input Capacity Learn More
103000 BTU
DOE Heating Capacity Learn More
85000 BTU
Net I=B=R Capacity Learn More
64000 BTU
Ultra Low NOx Emissions Learn More
No
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
5 Inches
Supply Connection
2 Inches
Return Connection
2 Inches
Product Height
40 7/16 Inches
Product Width
16 Inches
Product Depth
28 Inches
Shipping Weight
432 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
2100189
Warranty Information
Parts Warranty Learn More
1 Year
Heat Exchanger Warranty
12 Years
