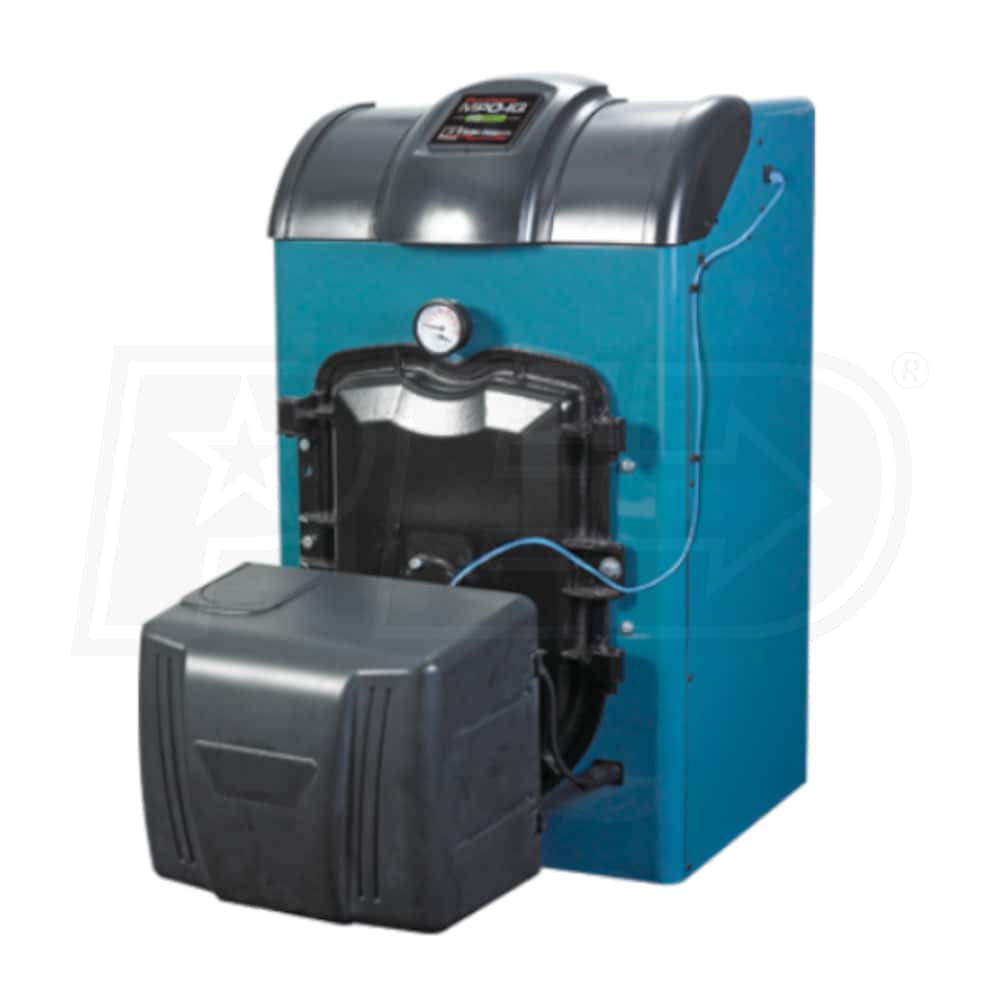

Burnham MPO-IQ115 - 101K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney Vent

Model:

MPO-IQ115-TB

Write a Review
$2,844.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
synchrony card logo
$50 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Burnham MPO-IQ115 - 101K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney Vent
Burnham MPO-IQ115 - 101K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney Vent
Model: MPO-IQ115-TB
$2,844.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient boilers on the market today. The MPO-IQ is a brilliant marriage of reliable design elements and advanced controls. The result is an incredibly efficient boiler that is easy to use. A 3" thick insulated jacket and vacuum-formed burner door provide the MPO-IQ115-TB with superior heat retention, one of several ways that an MPO-IQ hot water boiler reduces your energy consumption without compromising your comfort. In addition to superior insulation, MPO-IQ boilers also improve efficiency by virtue of their three-pass heat exchanger, which recirculates heat instead of venting it away. Whether you are replacing an existing oil boiler or this is your first, the MPO-IQ is a fantastic choice.
  • Intelligent Oil Boiler Control
  • Burnham's IQ system consists of two primary components: an IQ Option Panel and an Intelligent Oil Boiler Control. The Intelligent Control has an adjustable setpoint, provides two relays, and acts as an aquastat.
  • IQ Option Panel
  • The IQ Option Panel provides a standardized and simplified way to add functionality to your boiler. It supports Burnham's plug-and-play IQ Option Cards for outdoor reset, an auxiliary high limit, and low water cutoff.
  • Superior Accessibility
  • The MPO-IQ115-TB is designed for ease of installation and maintenance. The burner door is reversible and the rear plates may be removed easily for access to the flue passages.
  • Simple Venting
  • MPO-IQ boilers include a barometric draft regulator and stainless steel flue baffles. These components provide simple, safe, and efficient natural draft venting for your boiler.
  • Durable Construction
  • The longevity of MPO-IQ boilers is owed, in part, to the proprietary BC25HSi silicon-inoculated iron used for the boiler sections. Additionally, the heat exchanger is made from cast-iron, which allows it to accept lower return water temperatures.
  • Product Includes
  • (1) Burnham MPO-IQ115-TB Hot Water Boiler
  • (1) Beckett AFG Burner
  • (1) Taco 007-2 Circulator
  • (1) Burnham 8116287 5" Barometric Draft Regulator Carton
  • (1) Parts Carton
  • (1) Instruction Envelope
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

MPO-IQ115-TB
specs product image PID-37905
General Information
Product Line
MPO-IQ
Medium Learn More
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Oil
Combustion Type Learn More
Conventional
Vent Type Learn More
Chimney Vent
DHW Production Learn More
No
Modulating/Staging Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Beckett AFG
UPC
672616668563
Performance
AFUE Learn More
87 %
Input Rate
0.8 GPH
DOE Heating Capacity Learn More
101000 BTU
Net I=B=R Capacity Learn More
88000 BTU
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
5 Inches
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
38 Inches
Product Width
21 9/16 Inches
Product Depth
16 5/8 Inches
Product Weight
430 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
4412737
Warranty Information
Parts Warranty Learn More
1 Year
Heat Exchanger Warranty
Limited Lifetime Years
