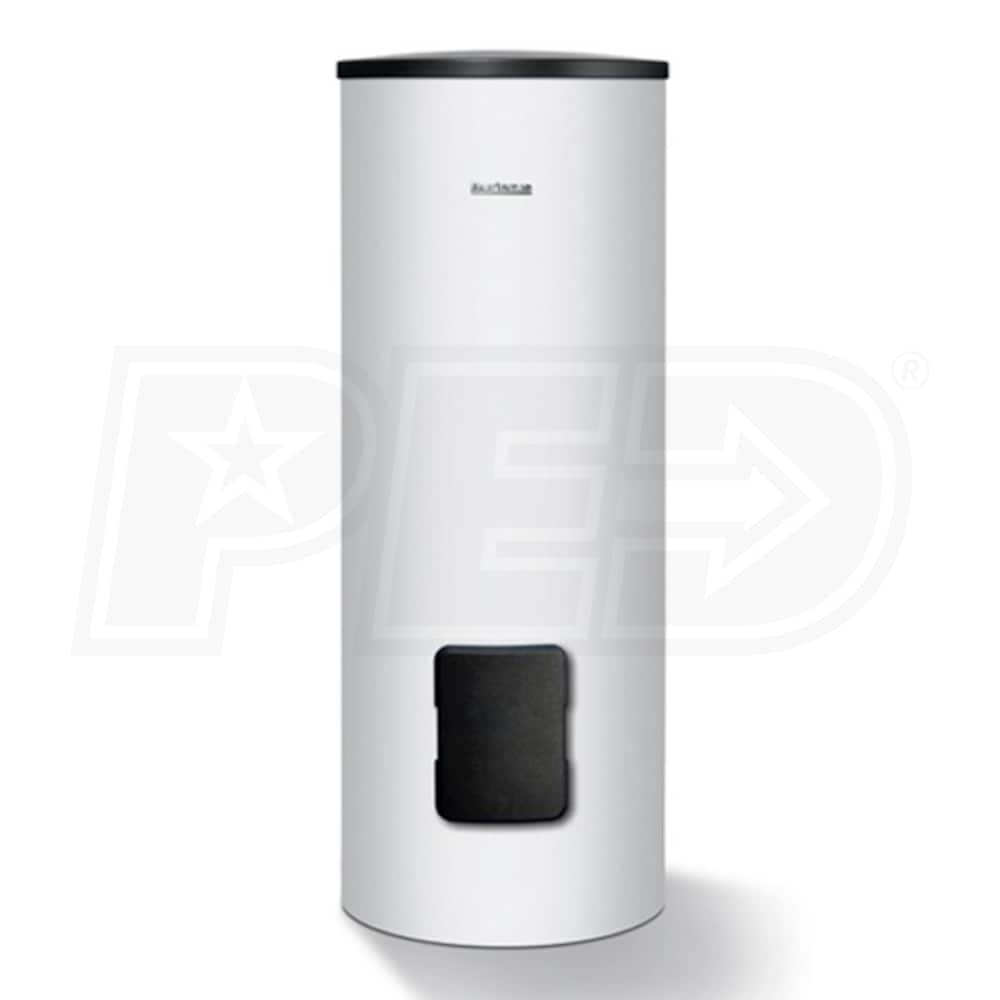

Buderus SM - 103 Gallons - Indirect Fired Water Heater - Thermoglaze Lined

Model:

SM100/5

Write A Review
$3,921.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks
synchrony card logo
$69 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Buderus SM - 103 Gallons - Indirect Fired Water Heater - Thermoglaze Lined
Buderus SM - 103 Gallons - Indirect Fired Water Heater - Thermoglaze Lined
Model: SM100/5
$3,921.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Buderus dual coil indirect fired hot water heaters are designed to bring together a solar and traditional hydronic heating system. The dual internal coils can accept heat from both boiler and solar panel, while the patented thermoglaze interior keeps internal corrosion at bay. An included magnesium anode rod extends the service life of the water heater by a factor of years by further reducing corrosion. Screw-on feet allow for easy leveling of the tank even on slightly inclined surfaces.
  • Thermoglaze Enamel Interior
  • The Buderus SM100/5W indirect fired water heater is coated internally with Buderus' Thermoglaze enamel, protecting the inside of the tank from corrosion.
  • Included Anode Rod
  • The water heater includes a sacrificial, replaceable anode rod, significantly reducing pipe corrosion over time.
  • Dual Internal Coils
  • The SM series water heaters have two internal heating coils available for use, one for classic domestic hydronic heating from boilers and one for solar heat sources.
  • Included Leveling Legs
  • Included with the water heater are a set of adjustable legs, allowing the water heater to remain level even on inclined surfaces.

Specifications

SM100/5
specs product image PID-37642
Overview
Product Category
Water Heater - Solar
Additional Model Numbers

SM100/5W, SM100/5

General Information
Type
Indirect Water Heater
Product Line
SM
Product Category
Water Heater - Solar
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
2
Mount Type
Floor
Installation Location
Indoor
Performance
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
305 Gallons
Continuous Recovery Rate
305 Gallons
Dimensions
Storage Volume
103 Gallons
Cold Water Inlet
1 Inch
Hot Water Outlet
1 Inch
Boiler Supply
1 Inch
Boiler Return
3/4 Inch
Product Height
72 1/4 Inches
Product Width
26 3/8 Inches
Product Depth
26 3/8 Inches
Product Weight
298 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
20 Years
