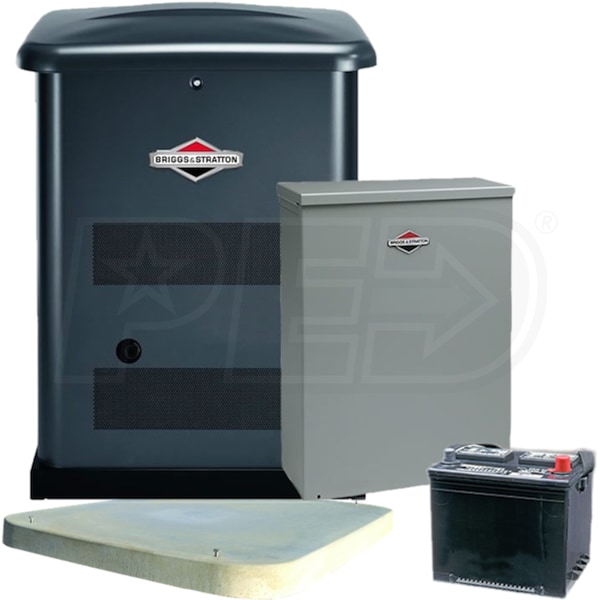

Briggs & Stratton 12kW Standby Generator System (Steel) (100A Service Disc. + Power Mgmt.) + 3" Mounting Pad + Battery

Model:

EGD-40533KIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton 12kW Standby Generator System (Steel) (100A Service Disc. + Power Mgmt.) + 3
Briggs & Stratton 12kW Standby Generator System (Steel) (100A Service Disc. + Power Mgmt.) + 3" Mounting Pad + Battery
Model: EGD-40533KIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Briggs & Stratton's New 12kW Home Standby Generator Pakcage
  • Automatically powers your home in seconds after sensing an outage
  • Streamlined, Space-Saving Design In A Quieter Package
  • Enclosure is 50% smaller and limits sound pressure to 69 dB(A)
  • 100-Amp Service Entrance Rated Automatic Transfer Switch (71071)
  • Power all circuits without a sub-panel; Rated at 100-Amps @ 240-Volts
  • NEMA 3R Indoor/Outdoor enclosure for mounting location flexibility
  • Symphony® II Power Management (Up To 8 High-Wattage Loads)
  • Automatically manages & balances loads while preventing overload
  • Uninterrupted, whole house power, with a smaller generator
  • 627cc Briggs & Stratton Commercial-Grade Vanguard™ Engine
  • Premium sintered iron cylinder sleeves for improved heat transfer
  • Full lubrication w/ spin-on oil filter cleans oil & protects engine components
  • Brushless Alternator (Less Than 5% THD)
  • Provides clean, safe power that won't harm computers or electronics
  • Automotive-Grade Galvaneal Steel Enclosure To Resist Rust
  • Adv. powder coat paint process for protection from the elements
  • Exclusive Front Exhaust Design For Flexible Placement
  • Can be placed as close as 18" from structure* (Verify Local Building Codes)
  • Industry Leading 5-Year Warranty
  • Parts, labor & travel covered for 5-Years
  • Includes Briggs & Stratton 3" Concrete Mounting Pad
  • A professional looking installation that looks great & lasts
  • Also Includes 26R Wet Cell Battery
  • Product Includes
    • (1) Briggs & Stratton 12kW Standby Generator System (Steel) (100A Service Disc. + Power Mgmt.) (40533)
    • (1) Briggs & Stratton 3" Concrete Mounting Pad for 8-12kW Generators (6325)
    • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Briggs & Stratton 12kW Standby Generator System (Steel) (100A Service Disc. + Power Mgmt.) (40533)
  • (1) Briggs & Stratton 3" Concrete Mounting Pad for 8-12kW Generators (6325)
  • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)
EGD-40533KIT
specs product image PID-93205
Overview
Assembly Required
Yes
Weight
318 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Style
Standby Generator
Product Length
25 Inches
Product Width
28 Inches
Product Height
37.2 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
10000 Watts
LP Power Capacity
12000 Watts
NG Fuel Consumption @ 50% Load
117 ft³/hr
LP Fuel Consumption @ 50% Load
1.7 gallons/hr
Rated Amps
50 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Battery
Included
Enclosure
Steel
A/C Ton Rating
2 x 4-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
627 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Assembly Required
Yes
Weight
318 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Style
Standby Generator
Product Length
25 Inches
Product Width
28 Inches
Product Height
37.2 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
10000 Watts
LP Power Capacity
12000 Watts
NG Fuel Consumption @ 50% Load
117 ft³/hr
LP Fuel Consumption @ 50% Load
1.7 gallons/hr
Rated Amps
50 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Battery
Not Included (540 CCA)
Enclosure
Steel
A/C Ton Rating
2 x 4-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
627 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
155 Pounds
Product Length
32 Inches
Product Width
29 Inches
Product Height
3 Inches
Product Specs
Frequency
60 Hertz
Overview
Weight
30 Pounds
Product Length
8.7 Inches
Product Width
6.8 Inches
Product Height
7.6 Inches
Product Specs
Frequency
60 Hertz
