AIC Alliance LB31-40DW, Brazed Flat Plate to Plate Heat Exchanger - Double Wall

AIC Alliance LB31-40DW, Brazed Flat Plate to Plate Heat Exchanger - Double Wall
Model: LB31-40 DW
$1,389.95
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)

Factory-Direct
Ships in 4-7 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
  • Product Description
  • Reviews
  • 2
    Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

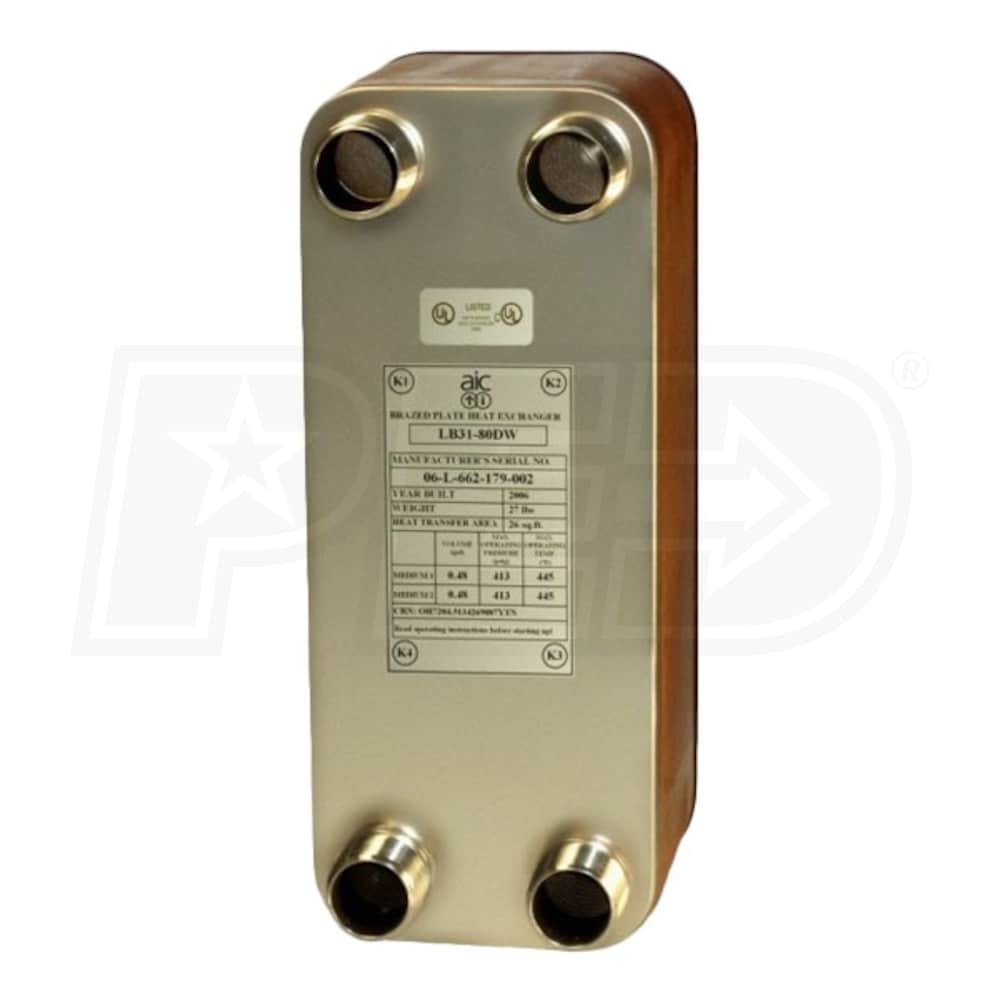

    AIC LB31-40DW, Brazed Flat Plate to Plate Heat Exchanger - Double Wall

    AIC LB31-40DW Brazed Flat Plate to Plate Heat Exchanger is designed with copper double wall plates and stainless steel connections. L-line heat exchangers have a working temperature up to 445-degrees F. Typical applications include potable water heating and domestic hot water heating. The LB31-40 DW has a working pressure up to 481 psi.

    AIC LB31-40DW Brazed Flat Plate to Plate Heat Exchanger Features:
    • Copper double wall plate
    • Stainless steel connections
    • Working pressure up to 481 psi
    • Working temperature up to 445-degrees F
    • 1" MPT connections
Specifications
General Information
Product Line
L-Line
Refrigerant Type
Hydronic
Casing
Uncased
Shape
Slab
Performance
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
100000 BTU
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
12 Inches
Product Width
5 Inches
Product Weight
10 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Features
Features

    AIC LB31-40DW, Brazed Flat Plate to Plate Heat Exchanger - Double Wall

    AIC LB31-40DW Brazed Flat Plate to Plate Heat Exchanger is designed with copper double wall plates and stainless steel connections. L-line heat exchangers have a working temperature up to 445-degrees F. Typical applications include potable water heating and domestic hot water heating. The LB31-40 DW has a working pressure up to 481 psi.

    AIC LB31-40DW Brazed Flat Plate to Plate Heat Exchanger Features:
    • Copper double wall plate
    • Stainless steel connections
    • Working pressure up to 481 psi
    • Working temperature up to 445-degrees F
    • 1" MPT connections
Specifications
General Information
Product Line
L-Line
Refrigerant Type
Hydronic
Casing
Uncased
Shape
Slab
Performance
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
100000 BTU
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
12 Inches
Product Width
5 Inches
Product Weight
10 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Product Specs
+
Specifications
General Information
Product Line
L-Line
Refrigerant Type
Hydronic
Casing
Uncased
Shape
Slab
Performance
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
100000 BTU
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
12 Inches
Product Width
5 Inches
Product Weight
10 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Reviews
+
This product has no reviews.
Be the first to voice your opinion on this AIC Alliance product.
Product Q&A
(2)
+
How do you keep it clean?
Gary
from Wisconsin
September 12, 2016
Read Response +
Answer
As with any flat plate heat exchanger, you will need to use a combination of prevention and maintenance to keep the LB31-30DW operating at peak efficiency. You will want to use a strainer or dirt separator on the inlet of both the hot and cold sides of the heat exchanger. If you are using the heat exchanger for domestic hot water production, you most likely will have to flush the domestic side periodically to dissolve any scale.
Hide Response -
What is the difference between a single plate and a double plate heat exchanger?
Terry
from Connecticut
April 27, 2016
Read Response +
Answer
The single wall heat exchangers have just a single plate between the two fluids. If a leak develops it will allow the two fluids to mix. A double wall heat exchanger has two plates between the fluids with a small air gap between the plates. If a leak develops in this type of heat exchanger, the fluid will leak out of the air gap before the two fluids are allowed to mix. Double wall heat exchangers are often recommended or required for domestic hot water applications.
Hide Response -
