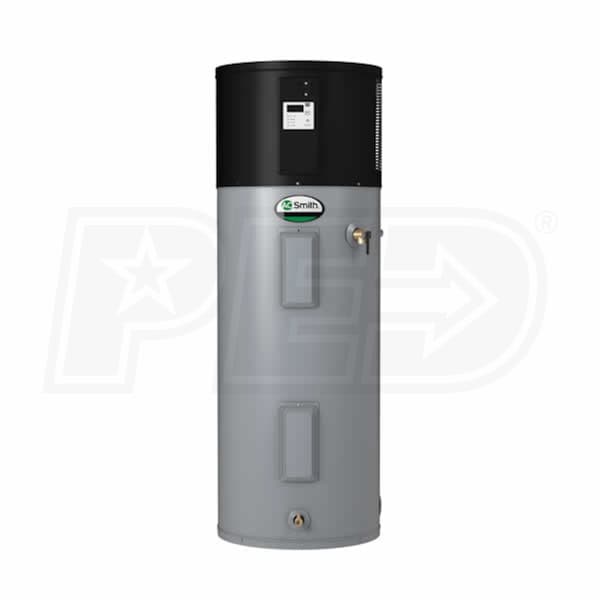

A.O. Smith - 80 Gal. Storage - 95 Gal. First Hour Delivery 3.06 EF Heat Pump Water Heater
Model: FPTU-80
+
Share This Product
-
Product Description
-
2Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Efficient Electric Hot Water
- The A.O. Smith Voltex line heats water with a high efficiency electric heat pump rather than conventional electric methods. This provides efficient hot water while also helping to dehumidify and cool the ambient air around the unit.
- Multiple Operating Modes
- The FPTU-80 comes with 3 different operating modes: Efficiency, Hybrid, and Electric, to meet any and all hot water needs. Hybrid mode automatically adjusts between the compressor and heating element. Vacation mode reduces costs for up to 99 days.
- Coreguard Anode Rod
- The stainless steel anode rod core helps extend the life of the heater by protecting it from the corrosive effects of hot water. Coreguard technology helps to extend the life more than that of a standard rod.
- User-Friendly Electronic Interface
- A built-in easy to read controller on the unit gives you easy access to temperature settings, operating mode, and multiple diagnostics to make sure your unit is running exactly how you want it.
A.O. Smith continues to lead the way in residential and commercial water heating with close to 70 years of innovative hot water solutions. The FPTU-80 features A.O. Smith's latest high efficiency electric water heating technology. By using an electric heat pump rather than resistive heating elements the FHPT line offers money saving efficiency while also dehumidifying and cooling ambient air. A 80 gallon tank and multiple operating modes allows the unit to fit nearly any domestic hot water need. Additional quality of life features such as backup electric elements, and a Coreguard anode rod keep the FPTU-80 running reliably and efficiently even in periods of high demand.
Specifications
General Information
Type
Hybrid Electric Water Heater
Product Line
Voltex
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Storage Type
Tank
Mount Type
Floor
UPC
671657242510
Performance
First Hour Delivery
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
95 Gallons
Energy Factor
Energy Factor
Energy Factor (EF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater. Learn More
3.06
Electrical Data
Voltage
208/240 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Current Draw
18.75 Amps
Dimensions
Storage Volume
80 Gallons
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
69 Inches
Product Width
27 Inches
Product Depth
27 Inches
Product Weight
264 Pounds
Shipping Weight
307 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8178040
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
6 Years
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Efficient Electric Hot Water
- The A.O. Smith Voltex line heats water with a high efficiency electric heat pump rather than conventional electric methods. This provides efficient hot water while also helping to dehumidify and cool the ambient air around the unit.
- Multiple Operating Modes
- The FPTU-80 comes with 3 different operating modes: Efficiency, Hybrid, and Electric, to meet any and all hot water needs. Hybrid mode automatically adjusts between the compressor and heating element. Vacation mode reduces costs for up to 99 days.
- Coreguard Anode Rod
- The stainless steel anode rod core helps extend the life of the heater by protecting it from the corrosive effects of hot water. Coreguard technology helps to extend the life more than that of a standard rod.
- User-Friendly Electronic Interface
- A built-in easy to read controller on the unit gives you easy access to temperature settings, operating mode, and multiple diagnostics to make sure your unit is running exactly how you want it.
A.O. Smith continues to lead the way in residential and commercial water heating with close to 70 years of innovative hot water solutions. The FPTU-80 features A.O. Smith's latest high efficiency electric water heating technology. By using an electric heat pump rather than resistive heating elements the FHPT line offers money saving efficiency while also dehumidifying and cooling ambient air. A 80 gallon tank and multiple operating modes allows the unit to fit nearly any domestic hot water need. Additional quality of life features such as backup electric elements, and a Coreguard anode rod keep the FPTU-80 running reliably and efficiently even in periods of high demand.
Specifications
General Information
Type
Hybrid Electric Water Heater
Product Line
Voltex
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Storage Type
Tank
Mount Type
Floor
UPC
671657242510
Performance
First Hour Delivery
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
95 Gallons
Energy Factor
Energy Factor
Energy Factor (EF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater. Learn More
3.06
Electrical Data
Voltage
208/240 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Current Draw
18.75 Amps
Dimensions
Storage Volume
80 Gallons
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
69 Inches
Product Width
27 Inches
Product Depth
27 Inches
Product Weight
264 Pounds
Shipping Weight
307 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8178040
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
6 Years
Product Specs
+−
Specifications
General Information
Type
Hybrid Electric Water Heater
Product Line
Voltex
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Storage Type
Tank
Mount Type
Floor
UPC
671657242510
Performance
First Hour Delivery
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
95 Gallons
Energy Factor
Energy Factor
Energy Factor (EF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater. Learn More
3.06
Electrical Data
Voltage
208/240 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Current Draw
18.75 Amps
Dimensions
Storage Volume
80 Gallons
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
69 Inches
Product Width
27 Inches
Product Depth
27 Inches
Product Weight
264 Pounds
Shipping Weight
307 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8178040
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
6 Years
Product Q&A
+−
Be the first to ask a question.
Recommended Accessories
+−

Expert Recommended Accessories
Hand Picked By Our Expert Bob
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Bob D.
Manuals
+−
+
Ask Bob, Our Product Expert, A Question!
*Required Fields

+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

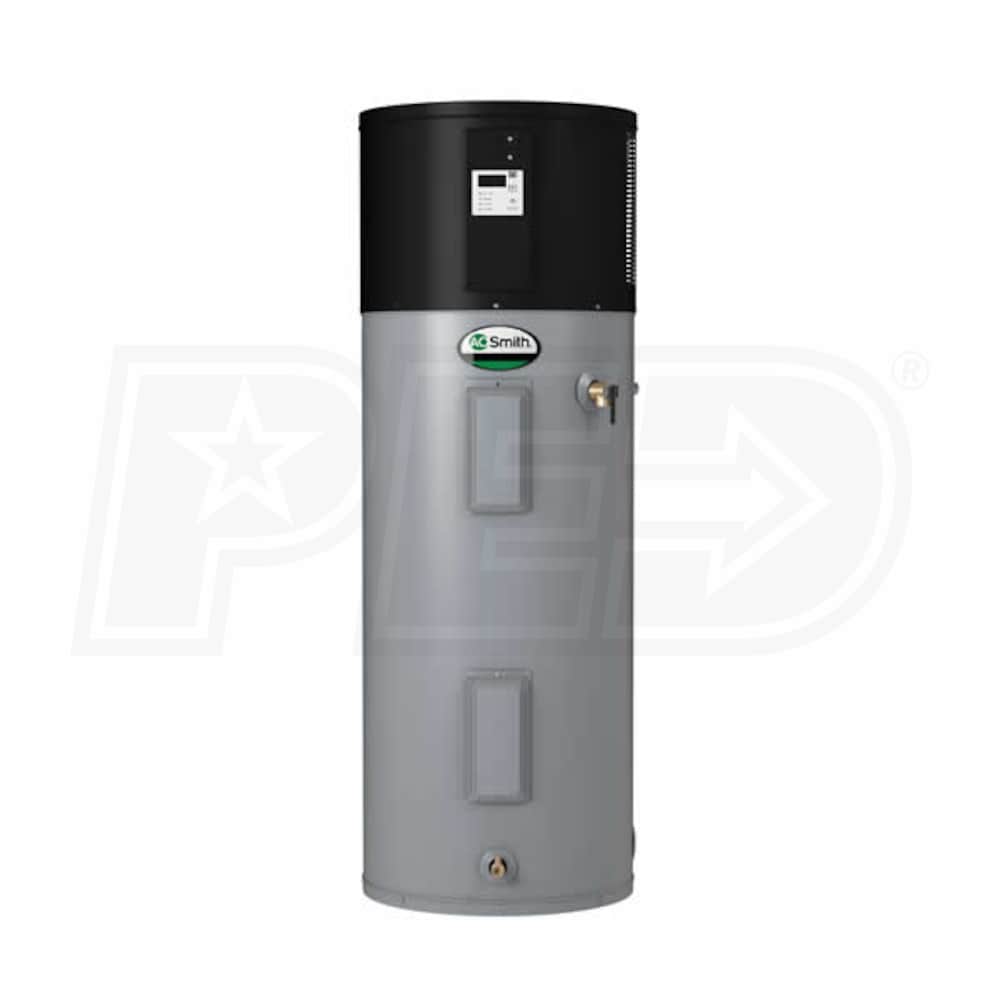

A.O. Smith - 80 Gal. Storage - 95 Gal. First Hour Delivery 3.06 EF Heat Pump Water Heater





×
