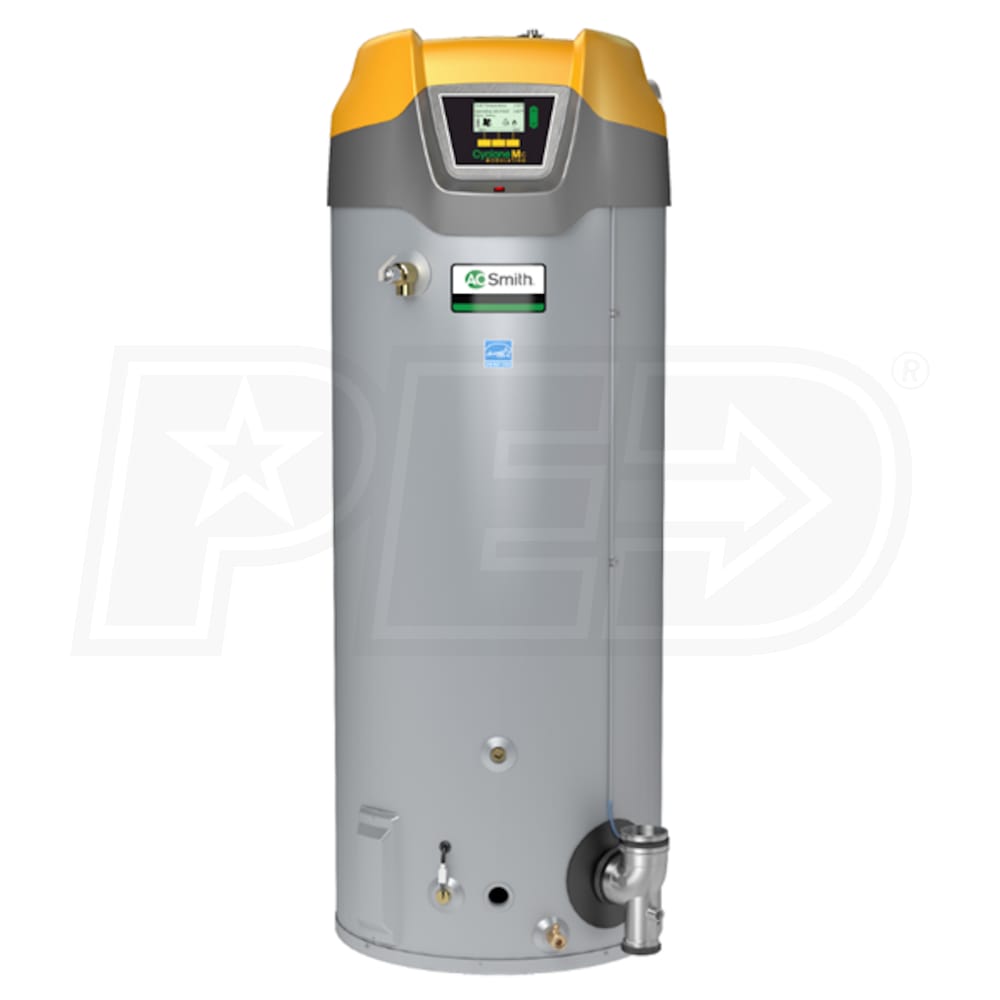

A.O. Smith Commercial BTH-199-LP
A.O. Smith Commercial BTH-199-LP
Hover to zoom
1 Of 5

A.O. Smith - 100 Gal. Storage - 305 Gal. First Hour Delivery - 97% Thermal Efficiency - Commercial Liquid Propane Water Heater - Direct Vent



Write A Review
Add to Cart for Lower Price
Was $9,985.00
Free Shipping
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Ships Thursday, Jul 18th
Shipping to60601
synchrony card logo
$113 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
A.O. Smith - 100 Gal. Storage - 305 Gal. First Hour Delivery - 97% Thermal Efficiency - Commercial Liquid Propane Water Heater - Direct Vent
A.O. Smith - 100 Gal. Storage - 305 Gal. First Hour Delivery - 97% Thermal Efficiency - Commercial Liquid Propane Water Heater - Direct Vent
Model: BTH-199-LP
Add to Cart for Lower Price
Was $9,985.00
Product Q&A
How-To Articles

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10


    A.O. Smith has led the way in innovative hot water solutions for nearly 80 years. The Cyclone Mxi is a highly efficient commercial water heater that has a rated thermal efficiency of 97% due to the modulating burner. Built with reliable components, the Cyclone Mxi provides you with years of hot water with minimal service needed. With its 100 gallon tank and easy to read display, the BTH-199-LP is ready to fulfill all of your hot water needs.
  • Helical Coil Heat Exchanger
  • The Cyclone Mxi line features a spiral heat exchanger that is positioned in the center of the unit for uniform heat distribution. It also allows the combustion gases to stay in the tank longer, lengthening the heat cycle and providing higher efficiency.
  • PermaGlass® Ultra Coat™
  • The tank has been coated using an industry exclusive glassing process where the coating is applied as a liquid and then mechanically rotated to ensure an even coat that provides protection against corrosion.
  • Fully Modulating Combustion
  • Modulating the burner results in higher operating efficiencies and longer service life by adjusting the firing rate as the demand changes.
  • Powered Anodes
  • All Cyclone Mxi models come with a titanium powered anode. A Powered anode works in all water conditions and never need replacing. It eliminates the possibility of odors usually related to standard anodes.
  • User-Friendly Electronic Interface
  • The intelligent control system, with easy to navigate menu, provides precise temperature control and unit operating information.
  • Venting Versatility
  • The Cyclone MXI line can be vented vertically or through a side wall. They can also have separate venting for the intake and exhuast or by using a concentric venting assembly.
  • iComm™ Compatible
  • These heaters are compatible with the iCOMM™ module, allowing them to be monitored remotely.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov


specs product image PID-73387
Product Category
Water Heater - Commercial
General Information
Gas Water Heater
Product Line
Cyclone Mxi
Product Category
Water Heater - Tank
Medium Learn More
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Storage Type
Mount Type
100 Gallons
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
199900 BTU
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
305 Gallons
Continuous Recovery Rate
261 Gallons
Efficiency Type
Thermal Efficiency
97 %
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Electrical Data
60 Hz
Recommended Breaker Size
15 Amps
Storage Volume
100 Gallons
Primary Vent Pipe Diameter
3 Inches
Gas Connection Size
3/4 Inch
Cold Water Inlet
1 1/2 Inches
Hot Water Outlet
1 1/2 Inches
Product Height
75 1/2 Inches
Product Width
27 3/4 Inches
Product Depth
27 3/4 Inches
Product Weight
523 Pounds
Shipping Weight
523 Pounds
Energy Star Listed
UL Listed
CSA Listed
AHRI Certified
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Vessel Warranty
3 Years
