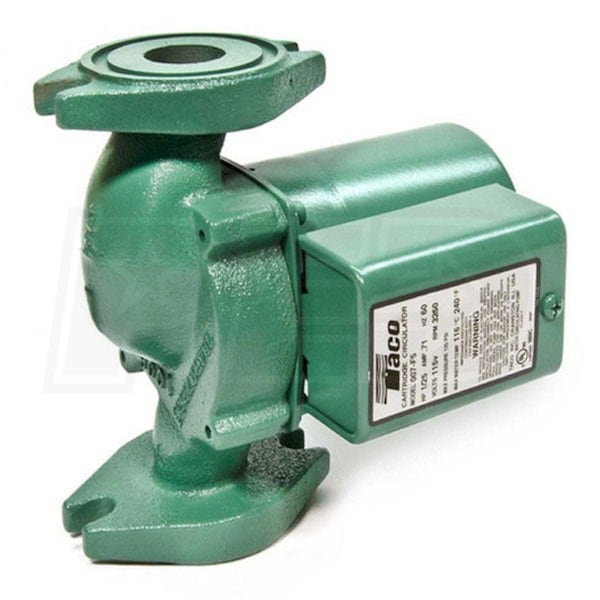

Taco 007 - 1/25 HP - Variable Speed Circulator Pump - Cast Iron - Outdoor Reset - Flange

Model:

007-VRF5

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Taco 007 - 1/25 HP - Variable Speed Circulator Pump - Cast Iron - Outdoor Reset - Flange
Taco 007 - 1/25 HP - Variable Speed Circulator Pump - Cast Iron - Outdoor Reset - Flange
Model: 007-VRF5
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Outdoor temperature conditions play a large role in determining how much heat your home needs to be comfortable. Many boilers use outdoor temperature reset to keep their heat production in line with their location's heat loss, which improves efficiency. With Taco's outdoor reset enabled variable speed circulators you can bring that efficiency to your system regardless of if your boiler supports it. The variable speed motor in these circulators allows for precise and constant flow adjustments, maximizing both comfort and efficiency. A simple wiring setup makes installation a breeze, and these circulators include warm weather shutdown to reduce wear and tear on your equipment when heating is unnecessary. The universal flange-to-flange dimension of Taco's "00" series circulators makes installation quick, even if you are replacing a different pump. With Taco, your hydronic circulation is in good hands.
  • Maximum Temperature Control
  • With an adjustable heating curve, as well as selectable supply and return temperatures, Taco's 00-VR circulators let you fine tune multiple aspects of circulation for maximum efficiency and comfort.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • Variable Speed Injection Mixing with Low and High Temperature Zones
  • Variable Speed Injection Mixing with Low Temperature Zones
  • Direct Injection Systems
  • Product Includes
  • (1) Taco 007-VRF5 Variable Speed Outdoor Reset Circulator Pump
  • (1) Outdoor Sensor
  • (1) Supply Sensor
  • (1) Return Sensor
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

007-VRF5
specs product image PID-33191
General Information
Type
Circulator
Product Line
007 Series
Motor Type
Variable Speed
Connection Type
Flanged
Material
Cast Iron
Flange Orientation
Standard
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
UPC
687752379587
Performance
Maximum Head
7.5 Feet
Maximum Flow Rate
13.5 GPM
Maximum Fluid Temperature
230 F
Horsepower
1/25 HP
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.52 Amps
Dimensions
Product Height
6 3/8 Inches
Product Width
5 Inches
Product Depth
5 3/8 Inches
Product Weight
8 Pounds
Shipping Weight
9 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
