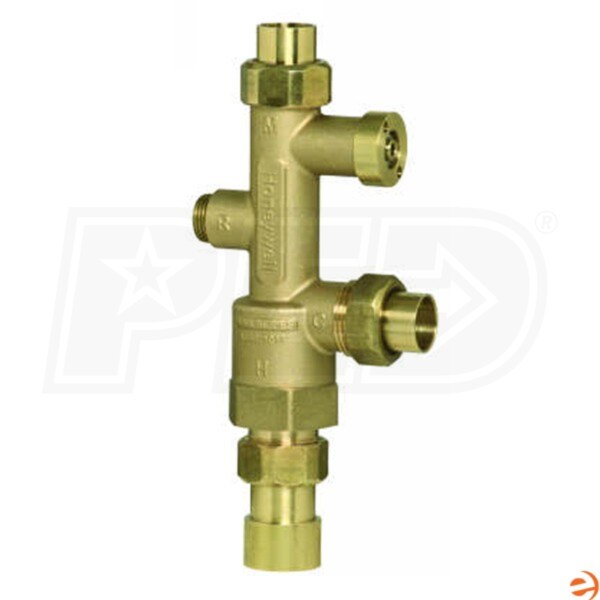

Honeywell DirectConnect Thermostatic Mixing Valve, 1/2" PEX, 3/4" Bottom
Model:
AMX100-UPEX-1
+
Share This Product
Features
- Designed to be directly installed on water heater hot outlet port
- Constant water temperature under different operating conditions
- Proportional valve (control of hot and cold water)
- Flow reduction in seconds if cold water supply is interrupted
- Temperature adjustable using 3/16 allen wrench (included)
- Union nuts/tail pieces included
- Heat trapping not required
- Recirculation port option for fast response
- Integral check valve on cold port
- Brass/stainless construction
- Teflon coated wear surfaces for extended service
- ASSE 1017 certified, CSA and IAPMO listed
- Parts: 1 Year
Honeywell DirectConnect Thermostatic Mixing Valve, 1/2" PEX, 3/4" Bottom
The Honeywell AMX100-UPEX-1 DirectConnect Thermostatic Mixing Valve reduces installation time. Orientation of cold and hot pots eliminates need for elbows and tees on typical water heater installations. Added safety designed to prevent scalding. Increased user comfort with more hot water available. Designed to be directly installed on water heater hot outlet port. The Honeywell AMX100-UPEX-1 DirectConnect Thermostatic Mixing Valve has a 0.5 inch Union PEX connection, with a Cv of 4.
Honeywell AMX100-UPEX-1 DirectConnect Thermostatic Mixing Valve Features:
Honeywell AMX100-UPEX-1 DirectConnect Thermostatic Mixing Valve Warranty:
Specifications
AMX100-UPEX-1
General Information
Product Line
AMX
Connection Type
Union PEX
Performance
CV Value
4
Minimum Operating Temperature
90 F
Maximum Operating Temperature
130 F
Dimensions
Connection Size
1/2 Inch
Product Height
8 5/8 Inches
Product Width
4 7/16 Inches
Product Length
4 7/16 Inches
Product Weight
5 Pounds
Certifications
CSA Listed
Yes
ASSE Certification
Yes
IAPMO Certification
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
