Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- ***NON-AUTOMATIC - Requires Float Switch or Controller***
- Submersible Sewage / Ejector Pump
- Ideal for average to above average sewage removal
- Durable Cast Iron Design
- Base, motor & pump housing
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- Thermally Protected Motor
- Oil-filled and hermetically sealed to prevent overheating
- Non-Clogging Vortex Plastic Impeller Design
- Capable of passing 2" spherical solids
- Carbon & Ceramic Shaft Seal
- Assures maximum protection for extended pump life
- Powder Coated Epoxy Finish
- Provides a corrosion resistant exterior
- Added Features:
- Neoprene square ring & gasket
- Completely submersible, watertight and dust tight
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
N267
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
43.6
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch

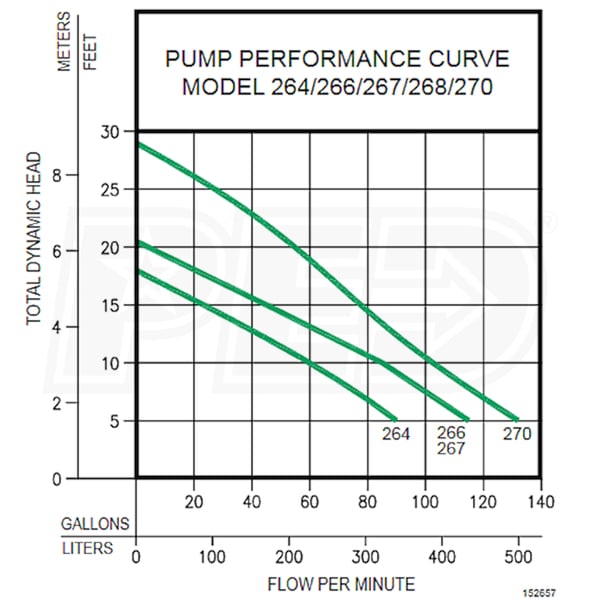

GPH @ 0 feet
7680
GPH @ 5 feet
7680
GPH @ 10 feet
5340
GPH @ 15 feet
3000
GPH @ 20 feet
600
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
52 Pounds
Consumer Warranty
3 Years
Product Length
13 Inches
Product Width
13 Inches
Product Height
14.3 Inches
UPC
053514017620
Additional Model Numbers
267-0002, N267
Reviews
(22)
Zoeller N267 Reviews & Ratings
Product Q&A
(3)
Product Questions
Answered by Bob, the eComfort Product Expert
Will this pump work as a sewer ejection pump for a basement bathroom or do I need a 'grinder' pump?
Bryan W.
from Michigan
May 02, 2017
Can I go from the 2 inch outlet to the 3 inch PVC on my N267? If so, how close to the pump should I make the change?
Greg A.
from Pennsylvania
March 02, 2017
does the zoeller pump have a capacitor in it?
Philip C
from Texas
January 29, 2015
