Williamson-Thermoflo OWT-3-T-S2-W-W
Williamson-Thermoflo OWT-3-T-S2-W-W
Hover to zoom
1 Of 5

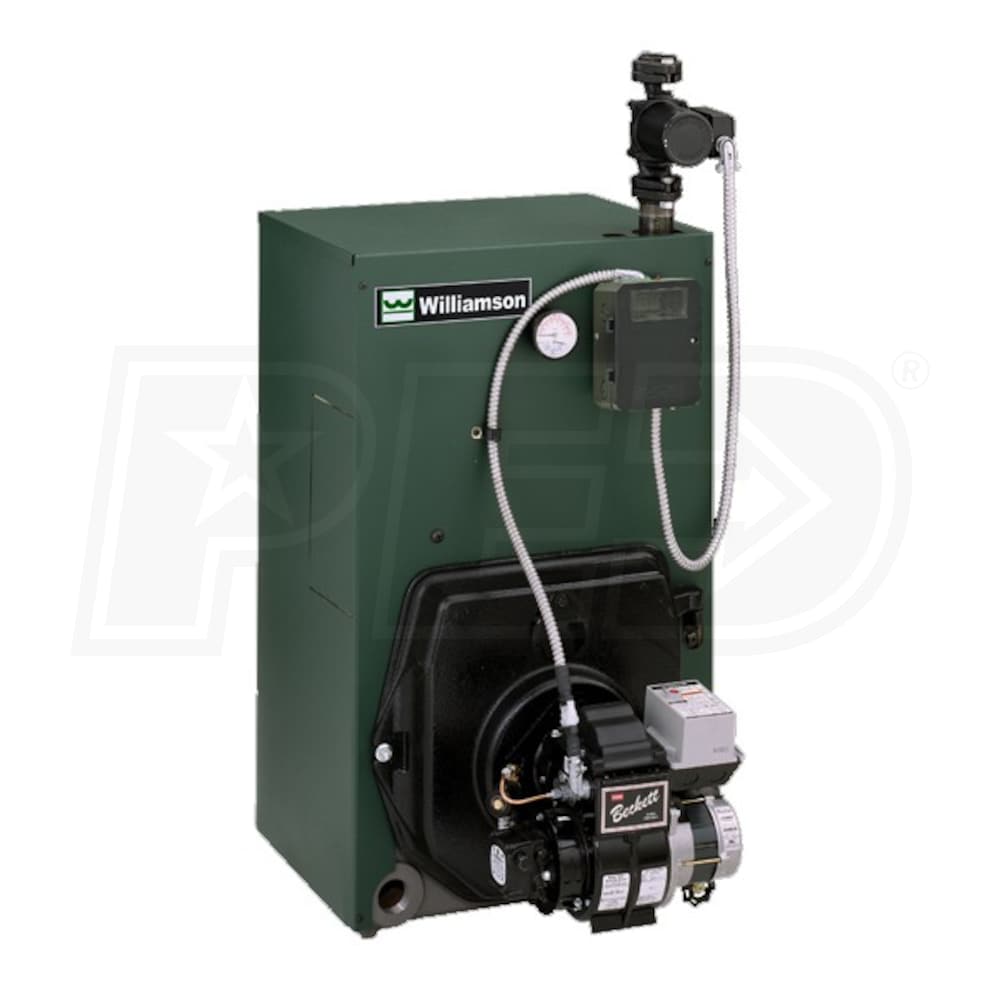

Williamson-Thermoflo OWT-3 - 114K BTU - 85.0% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately
Model: OWT-3-T-S2-W-W
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$2,079.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Wednesday, Jan 27th
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Utah, California or any destination outside of the United States
$347 / Month
Suggested monthly payments with 6 month financing.
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    "Uncover warm possibilities" with Williamson-Thermoflo's OWT Oil fired water boiler with tankless. The highly efficient OWT-3-T-S2-W pumps out 114,000 BTUs with a thermal efficiency rating rating of 85 percent. The OWT is also designed with a solenoid valve, PSC motor, and a solid state igniter to maintain that efficiency. This boiler is equipped with many features, such as a temperature limit control, cast-iron sections with built-in separator, and an insulated heavy-gauge steel jacket. The OWT is also easily serviced with a swing-away burner door, top access cleanout cover, and plug-in wiring harness. Since it is factory tested and comes with a limited lifetime warranty on the heat exchanger, you can be absolutely sure that your investment is reliable and built to last.
  • Factory Tested
  • OWB boilers are factory tested, ensuring reliability and properly functioning equipment.
  • Factory Assembled
  • OWT boilers are factory-assembled meaning that the boiler comes ready for installation. This includes the aluminized flue collector, swing-away burner mounting door, with the refractory blanket and recessed target wall in the combustion chamber.
  • Easy Service
  • With a swing-away burner door, top access cleanout cover, and plug-in wiring harness, servicing the OWB boiler easy.
  • Product Includes
  • Taco 007 Circulator Pump
Specifications
General Information
Product Line
OWT
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85 %
Input Rate
0.95 GPH
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
114000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
99000 BTU
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
35 5/8 Inches
Product Width
20 1/4 Inches
Product Depth
13 3/4 Inches
Product Weight
560 Pounds
Shipping Weight
570 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Heat Exchanger Warranty
Lifetime Years
Features
Features
    "Uncover warm possibilities" with Williamson-Thermoflo's OWT Oil fired water boiler with tankless. The highly efficient OWT-3-T-S2-W pumps out 114,000 BTUs with a thermal efficiency rating rating of 85 percent. The OWT is also designed with a solenoid valve, PSC motor, and a solid state igniter to maintain that efficiency. This boiler is equipped with many features, such as a temperature limit control, cast-iron sections with built-in separator, and an insulated heavy-gauge steel jacket. The OWT is also easily serviced with a swing-away burner door, top access cleanout cover, and plug-in wiring harness. Since it is factory tested and comes with a limited lifetime warranty on the heat exchanger, you can be absolutely sure that your investment is reliable and built to last.
  • Factory Tested
  • OWB boilers are factory tested, ensuring reliability and properly functioning equipment.
  • Factory Assembled
  • OWT boilers are factory-assembled meaning that the boiler comes ready for installation. This includes the aluminized flue collector, swing-away burner mounting door, with the refractory blanket and recessed target wall in the combustion chamber.
  • Easy Service
  • With a swing-away burner door, top access cleanout cover, and plug-in wiring harness, servicing the OWB boiler easy.
  • Product Includes
  • Taco 007 Circulator Pump
Specifications
General Information
Product Line
OWT
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85 %
Input Rate
0.95 GPH
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
114000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
99000 BTU
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
35 5/8 Inches
Product Width
20 1/4 Inches
Product Depth
13 3/4 Inches
Product Weight
560 Pounds
Shipping Weight
570 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Heat Exchanger Warranty
Lifetime Years
Product Specs
+
Specifications
General Information
Product Line
OWT
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85 %
Input Rate
0.95 GPH
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
114000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
99000 BTU
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
35 5/8 Inches
Product Width
20 1/4 Inches
Product Depth
13 3/4 Inches
Product Weight
560 Pounds
Shipping Weight
570 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Heat Exchanger Warranty
Lifetime Years
