Welcome:  Sign In | Contact Us
Call Us: 1 (866) 554-4328

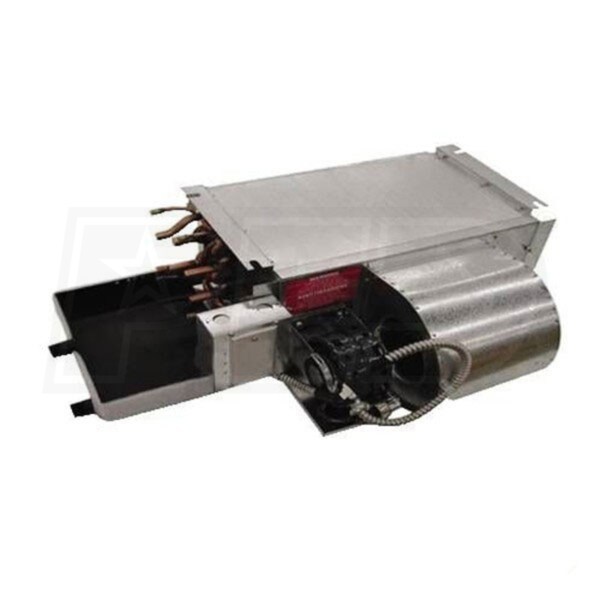

Williams 'H' Series Horizontal Fan Coil, Left Piping, 208V, 3 Coil Rows (CW or HW) - 800 CFM, 75,690 BTU

Williams 'H' Series Horizontal Fan Coil, Left Piping, 208V, 3 Coil Rows (CW or HW) - 800 CFM, 75,690 BTU
Our Price
Compare Prices
Shipping Info
Model: LH008W2B302L00
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Engineered for concealed or exposed ceiling applications, these top quality units come with multiple options and can be ordered with or without return-air plenums. The low profile and flexible design of the Horizontal Basic (LH-B) fan coil is ideal for multiple applications. The slim, compact design is well suited for drop-ceiling, closet, hallway and other concealed applications. The LH-B comes with a powder-coated epoxy drain pan and a wide range of coil, motor and controls options. These models have no exterior cabinet.
  • Williams H082302L00 Features
  • Heavy-gauge, galvanized steel construction.
  • Two-pipe or Four-pipe hydronic heating and/or cooling. Four-pipe system may be converted to a two-pipe system by capping off one set of pipes. Manual are-vents on water coils.
  • Coils are 1/2" OD copper tubes with aluminum fins (12 FPI) and tested underwater at 350 PSI with a 300 PSI working pressure.
  • Drain pan is black epoxy, powder-coat finish, insulated with 1/4" elastomeric insulation, and has both primary and secondary drain connections.
  • Three-speed, 115V or 208V/1/60Hz PSC motor with quick-connect plug wired to a junction box.
  • Motors are factory-wired and terminated in a junction box for single-point power supply.
  • One-inch duct collar on return-air and supply-air openings.
  • Optional return-air plenum has an easily accessible, 1" fiberglass, throwaway filter.
  • Rear and bottom return-air plenums are insulated with neoprene-coated, over three pound density, 1/2" fiberglass insulation.
  • 100% factory leak and performance tested.
Specifications
General Information
Product Line
H
Blower Motor
Multi-Speed
Coil Type
Hydronic
Motor Type
PSC
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Electric Heat
Optional
Additional Model Numbers
H082302L00, LH008W2B302L00
Performance
Heating BTU
75690
Nominal Maximum Cooling Capacity
18900 BTU
Maximum Air Flow
800 CFM
Electrical Data
Voltage
208 Volts
Phase
1
Frequency
60 Hz
Dimensions
Cold Water Inlet
1/2 Inch
Hot Water Outlet
1/2 Inch
Hot Water Inlet
1/2 Inch
Cold Water Outlet
1/2 Inch
Product Height
10 5/8 Inches
Product Width
40 1/2 Inches
Product Depth
22 1/4 Inches
Product Weight
130 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    Engineered for concealed or exposed ceiling applications, these top quality units come with multiple options and can be ordered with or without return-air plenums. The low profile and flexible design of the Horizontal Basic (LH-B) fan coil is ideal for multiple applications. The slim, compact design is well suited for drop-ceiling, closet, hallway and other concealed applications. The LH-B comes with a powder-coated epoxy drain pan and a wide range of coil, motor and controls options. These models have no exterior cabinet.
  • Williams H082302L00 Features
  • Heavy-gauge, galvanized steel construction.
  • Two-pipe or Four-pipe hydronic heating and/or cooling. Four-pipe system may be converted to a two-pipe system by capping off one set of pipes. Manual are-vents on water coils.
  • Coils are 1/2" OD copper tubes with aluminum fins (12 FPI) and tested underwater at 350 PSI with a 300 PSI working pressure.
  • Drain pan is black epoxy, powder-coat finish, insulated with 1/4" elastomeric insulation, and has both primary and secondary drain connections.
  • Three-speed, 115V or 208V/1/60Hz PSC motor with quick-connect plug wired to a junction box.
  • Motors are factory-wired and terminated in a junction box for single-point power supply.
  • One-inch duct collar on return-air and supply-air openings.
  • Optional return-air plenum has an easily accessible, 1" fiberglass, throwaway filter.
  • Rear and bottom return-air plenums are insulated with neoprene-coated, over three pound density, 1/2" fiberglass insulation.
  • 100% factory leak and performance tested.
Specifications
General Information
Product Line
H
Blower Motor
Multi-Speed
Coil Type
Hydronic
Motor Type
PSC
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Electric Heat
Optional
Additional Model Numbers
H082302L00, LH008W2B302L00
Performance
Heating BTU
75690
Nominal Maximum Cooling Capacity
18900 BTU
Maximum Air Flow
800 CFM
Electrical Data
Voltage
208 Volts
Phase
1
Frequency
60 Hz
Dimensions
Cold Water Inlet
1/2 Inch
Hot Water Outlet
1/2 Inch
Hot Water Inlet
1/2 Inch
Cold Water Outlet
1/2 Inch
Product Height
10 5/8 Inches
Product Width
40 1/2 Inches
Product Depth
22 1/4 Inches
Product Weight
130 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Product Line
H
Blower Motor
Multi-Speed
Coil Type
Hydronic
Motor Type
PSC
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Electric Heat
Optional
Additional Model Numbers
H082302L00, LH008W2B302L00
Performance
Heating BTU
75690
Nominal Maximum Cooling Capacity
18900 BTU
Maximum Air Flow
800 CFM
Electrical Data
Voltage
208 Volts
Phase
1
Frequency
60 Hz
Dimensions
Cold Water Inlet
1/2 Inch
Hot Water Outlet
1/2 Inch
Hot Water Inlet
1/2 Inch
Cold Water Outlet
1/2 Inch
Product Height
10 5/8 Inches
Product Width
40 1/2 Inches
Product Depth
22 1/4 Inches
Product Weight
130 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Bob, the Heating Product Expert
icon-social-fb1
+
Is the fan coil right side or left side piping from rear of coil or front of coil?
Jack
from Colorado
February 24, 2016
Answer
Piping is determined looking at the front of the unit. Both left and right hand piping configurations are available. Left hand piped models have a "L" in the third to last position of the model number; right hand piped models have an "R" in this same position.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Bob
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×
Williams 'H' Series Horizontal Fan Coil, Left Piping, 208V, 3 Coil Rows (CW or HW) - 800 CFM, 75,690 BTU
Williams LH008W2B302L00
+
Reset View
×
Customer Review Images
