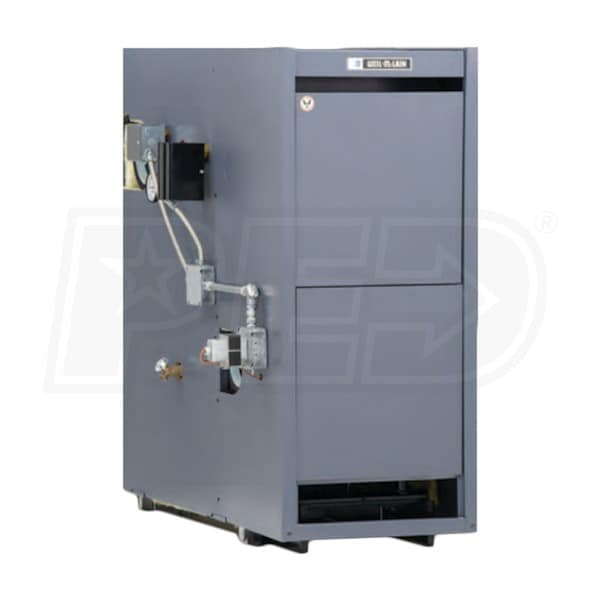

Weil-McLain LGB-10-S - 711K BTU - 81.0% Combustion Efficiency - Steam Gas Boiler - Chimney Vent

Weil-McLain LGB-10-S - 711K BTU - 81.0% Combustion Efficiency - Steam Gas Boiler - Chimney Vent
Our Price
Compare Prices
Shipping Info
Model: 133104304
$13,121.14
Ships in 7-14 Business Days
Free Shipping
Free Lift Gate Service -
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Add-Ons

Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California, Utah or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. Their dedication to producing lasting heating solutions is seen in every boiler they make. The LGB brings Weil-McLain reliability to the largest of applications. The LGB is available for natural gas or liquid propane installations in either steam or hot water. There are 20 sizes available, and that is just the beginning of customization. Weil-McLain knows that no two massive applications are the same, so they have developed a variety of control packages for the LGB. To keep installation and piping simple, Weil-McLain has ensured that even the largest LGB only requires two risers. When it comes to large applications, the LGB brings versatility, efficiency, and reliability together in a package that fits your application.
  • Durable, Efficient Construction
  • Corrosion-resistant, cast-iron boiler sections mean that your LGB will withstand the rigors of even the most trying applications. The sections also contain heat pin studs which improve heat transfer and efficiency by diverting hot gases.
  • Efficiency-Boosting Insulation
  • Heat retention is critical to energy efficiency. Heat leakage represents energy use without any comfort gains. An extended, insulated steel jacket prevents heat from escaping the LGB and improves the efficiency.
  • Captured Seals
  • Elastomer rings seal the sections' ports better than traditional metal push nipples. The elastomer expands and contracts with the section, maintaining a watertight seal in all conditions.
  • Easy Maintenance
  • Keeping the LGB clean and running efficiently is a breeze. The rear jacket and steel cleanout plates are easily removable, providing quick access to the flue passages.
  • Jumbo Top Port
  • The top port opening of the LGB-10-S is 9" and forms an internal header within the unit. This improves water circulation, which leads to even comfort and reduced wear-and-tear on your LGB.
  • Jumbo Steaming Area
  • Weil-McLain believes you should never have to wait for dry steam. The LGB-10-S features an extra-large steaming area for express steam generation and ideal comfort.
  • Product Note
    The Weil-McLain LGB-10-S has several standard options that must be selected before your order can be placed. Please contact an eComfort.com product advisor to discuss the fuel type, assembly type, and control system that best suit your application. Any additional, optional upgrades must be added at this time as well.
Specifications
General Information
Product Line
LGB
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam
Heat Exchanger Material
Cast Iron
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Conventional
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Assembly Type
Knockdown
Gas Conversion Kit
Not Convertible
UPC
672619200142
Performance
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
1170000 BTU
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
948000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
711000 BTU
Efficiency
81.0 %
Efficiency Type
Combustion Efficiency
Ultra Low NOx Emissions NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
16 Inches
Supply Connection
6 Inches
Return Connection
5 Inches
Product Height
50.375 Inches
Product Width
51 Inches
Product Depth
46.5 Inches
Shipping Weight
2800 Pounds
Certifications
Country of Origin
United States
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
5265298
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
Features
Features
    Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. Their dedication to producing lasting heating solutions is seen in every boiler they make. The LGB brings Weil-McLain reliability to the largest of applications. The LGB is available for natural gas or liquid propane installations in either steam or hot water. There are 20 sizes available, and that is just the beginning of customization. Weil-McLain knows that no two massive applications are the same, so they have developed a variety of control packages for the LGB. To keep installation and piping simple, Weil-McLain has ensured that even the largest LGB only requires two risers. When it comes to large applications, the LGB brings versatility, efficiency, and reliability together in a package that fits your application.
  • Durable, Efficient Construction
  • Corrosion-resistant, cast-iron boiler sections mean that your LGB will withstand the rigors of even the most trying applications. The sections also contain heat pin studs which improve heat transfer and efficiency by diverting hot gases.
  • Efficiency-Boosting Insulation
  • Heat retention is critical to energy efficiency. Heat leakage represents energy use without any comfort gains. An extended, insulated steel jacket prevents heat from escaping the LGB and improves the efficiency.
  • Captured Seals
  • Elastomer rings seal the sections' ports better than traditional metal push nipples. The elastomer expands and contracts with the section, maintaining a watertight seal in all conditions.
  • Easy Maintenance
  • Keeping the LGB clean and running efficiently is a breeze. The rear jacket and steel cleanout plates are easily removable, providing quick access to the flue passages.
  • Jumbo Top Port
  • The top port opening of the LGB-10-S is 9" and forms an internal header within the unit. This improves water circulation, which leads to even comfort and reduced wear-and-tear on your LGB.
  • Jumbo Steaming Area
  • Weil-McLain believes you should never have to wait for dry steam. The LGB-10-S features an extra-large steaming area for express steam generation and ideal comfort.
  • Product Note
    The Weil-McLain LGB-10-S has several standard options that must be selected before your order can be placed. Please contact an eComfort.com product advisor to discuss the fuel type, assembly type, and control system that best suit your application. Any additional, optional upgrades must be added at this time as well.
Specifications
General Information
Product Line
LGB
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam
Heat Exchanger Material
Cast Iron
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Conventional
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Assembly Type
Knockdown
Gas Conversion Kit
Not Convertible
UPC
672619200142
Performance
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
1170000 BTU
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
948000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
711000 BTU
Efficiency
81.0 %
Efficiency Type
Combustion Efficiency
Ultra Low NOx Emissions NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
16 Inches
Supply Connection
6 Inches
Return Connection
5 Inches
Product Height
50.375 Inches
Product Width
51 Inches
Product Depth
46.5 Inches
Shipping Weight
2800 Pounds
Certifications
Country of Origin
United States
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
5265298
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
Product Specs
+
Specifications
General Information
Product Line
LGB
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam
Heat Exchanger Material
Cast Iron
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Conventional
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Assembly Type
Knockdown
Gas Conversion Kit
Not Convertible
UPC
672619200142
Performance
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
1170000 BTU
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
948000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
711000 BTU
Efficiency
81.0 %
Efficiency Type
Combustion Efficiency
Ultra Low NOx Emissions NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
16 Inches
Supply Connection
6 Inches
Return Connection
5 Inches
Product Height
50.375 Inches
Product Width
51 Inches
Product Depth
46.5 Inches
Shipping Weight
2800 Pounds
Certifications
Country of Origin
United States
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
5265298
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Bob, the Heating Product Expert
icon-social-fb1
+
Why is there an altitude limit on this boiler?
Barry
from Montana
December 11, 2015
Answer
Like people or cars, boilers require a steady supply of oxygen to work properly. At high altitudes, the air is less dense, and there is less oxygen available for combustion. This means that a boiler that was designed to produce a certain amount of heat at sea level, will not be able to deliver the same performance when installed at high altitude. Boilers are typically set up at the factory to operate at these lower elevations. For higher elevations you will need to reduce the flow of fuel to the boiler to match the available oxygen. For most boilers this means that you will get approximately 4% less heat for every 1000' you are above sea level. Conversion kits are available to ensure that even as your heat output drops, you maintain safe and efficiency operation. Some manufacturers also offer models specifically designed for installation at higher altitudes.
