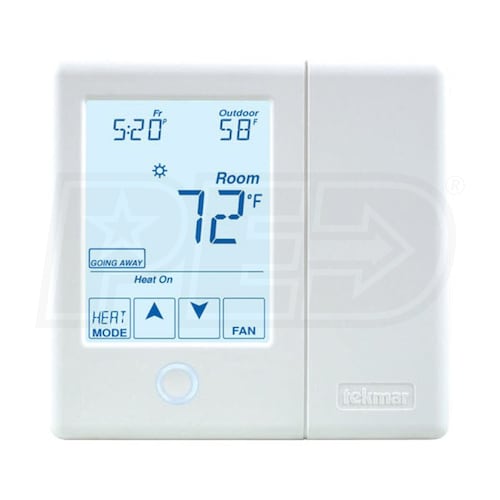

Tekmar tekmarNet - 557 - Thermostat - 7-Day Programmable - tN2/tN4 Compatible - Two Stage Heat/Cool - Heat Pump - Touchscreen

Model:

557

Write A Review
$584.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$98 / Month
Suggested monthly payments with 6 month financing.
Tekmar tekmarNet - 557 - Thermostat - 7-Day Programmable - tN2/tN4 Compatible - Two Stage Heat/Cool - Heat Pump - Touchscreen
Tekmar tekmarNet - 557 - Thermostat - 7-Day Programmable - tN2/tN4 Compatible - Two Stage Heat/Cool - Heat Pump - Touchscreen
Model: 557
$584.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For nearly three decades, tekmar has been providing zoning and control solutions for a variety of heating and cooling applications. Products made by tekmar can improve the efficiency and comfort delivered by almost any system. The tekmarNet 557 Thermostat has controls for humidity and a one stage fan in addition to being able to operate a system with two stages of heating and two stages of cooling, or a radiant floor with a two stage heat pump for heating and cooling as well as a single-stage of backup heat. This touchscreen thermostat is a simple, and efficient, way to manage the temperature of a single zone while improving the connectivity of your home.
  • Synchronize Your Zones, Save Energy
  • When connected to a tekmarNet system it can communicate with other tekmarNet thermostats in your system. Communication means that your thermostats can synchronize their cycles, when possible, instead of operating independently.
  • In situations where your 557 is not connected to a tekmarNet system, or it is not part of a hydronic zone, then it may use auto cycling instead of synchronization. Auto cycling calculates and executes the ideal number of cycles per hour.
  • You can also use this tekmarNet thermostat to instruct connected thermostats not to run heating operations and cooling operations simultaneously. These functions minimize short cycling, save energy, and reduce wear and tear on your system.
  • Program Your Ideal Schedule
  • This thermostat supports a seven day or 24 hour schedule with two or four events per day. If you connect the 557 to a tekmarNet system your schedule can be maintained independently, or it can be applied to other tekmarNet thermostats as a master schedule.
  • The 557 can also follow master schedules as set by other devices. Whether you want to maintain an independent zone or coordinate devices, the tekmar 557 Thermostat has you covered.
  • Temperature Monitoring
  • The tekmar 557 has built-in humidity and temperature sensors for evaluating and managing the relative humidity level heating and air temperature of your room. The 557 Thermostat has auxiliary inputs for three additional sensors.
  • It supports a number of different auxiliary sensors, allowing you to customize the information that your system receives in a way that optimizes performance. You can control air and floor temperatures if you connect a slab sensor to your thermostat.
  • If your tekmar 557 Thermostat is connected to an outdoor reset sensor, directly or through tekmarNet, then it has warm weather shut down to prevent overuse of energy when outdoor temperatures are high.
  • Product Note
    A tekmarNet 4 Wiring Center or Zone Manager is required for power and communication. This thermostat may be used in a stand-alone capacity.

Specifications

557
specs product image PID-32554
Overview
Product Category
Thermostats and Controls
General Information
Product Category
Thermostats and Controls
Stages
Multi-Stage
Switch Contact Type
Digital
System Type
Cool/Heat or Heat Pump
Voltage Type
Low-Voltage
Programmable
Yes
Power Source
Hard Wired
Interface
Touchscreen
Dimensions
Product Height
4 1/2 Inches
Product Width
4 3/4 Inches
Product Depth
7/8 Inch
Product Weight
0.9 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
