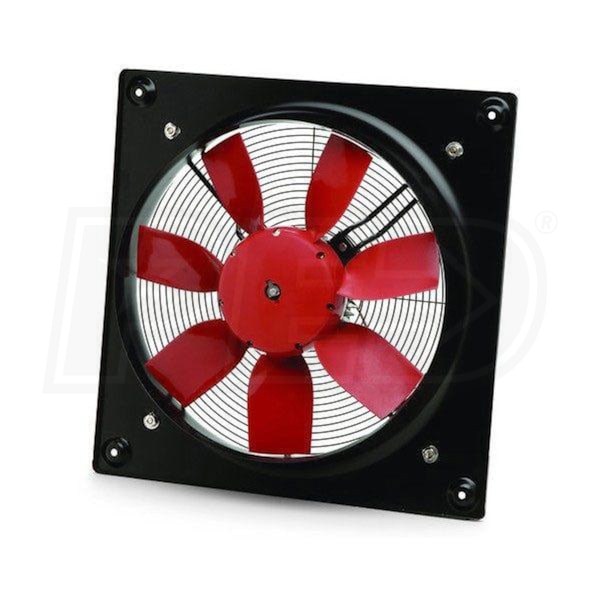

The S&P COMPACT WALL and DUCT AXIAL FANS feature, as the name suggests, an extremely compact design created by the combination of an external rotor motor matched with a direct drive wrap around an impeller hub. This very low profile design optimizes airflow performance while minimizing noise generation. Both wall and duct mounted versions require an absolute minimum depth for any given wall, ceiling, panel or in-line duct mounted installation. The S&P COMPACT WALL AXIAL FANS are designed to be installed directly into side walls, ceilings and panels in order to exhaust or supply air to the surrounding environments.
Motor
All models include asynchronous induction capacitor run and start motors
Constructed from die cast aluminum and finished in a black polyester paint coating
100% Speed controllable
Totally enclosed IP/65 protection
Class F insulation
All models include a Safety Auto Reset Thermal Overload Protection
Terminal Box
Manufactured from high impact grade aluminum
IP65 protected
Wheel/Impeller
Manufactured from glass filled UV resistant polyamide
Special Order: Die cast aluminum
Corrosion and weather resistant
Specifications
General Information
Type
Axial Fan
Mount Type
Wall
UPC
812482010480
Performance
Maximum Air Flow
2430 CFM
Electrical Data
Power Consumption
310 Watts
Dimensions
Duct Connection
16 Inches
Product Height
16 5/8 Inches
Product Width
19 11/16 Inches
Product Length
4 1/4 Inches
Product Weight
24 Pounds
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
The S&P COMPACT WALL and DUCT AXIAL FANS feature, as the name suggests, an extremely compact design created by the combination of an external rotor motor matched with a direct drive wrap around an impeller hub. This very low profile design optimizes airflow performance while minimizing noise generation. Both wall and duct mounted versions require an absolute minimum depth for any given wall, ceiling, panel or in-line duct mounted installation. The S&P COMPACT WALL AXIAL FANS are designed to be installed directly into side walls, ceilings and panels in order to exhaust or supply air to the surrounding environments.
Motor
All models include asynchronous induction capacitor run and start motors
Constructed from die cast aluminum and finished in a black polyester paint coating
100% Speed controllable
Totally enclosed IP/65 protection
Class F insulation
All models include a Safety Auto Reset Thermal Overload Protection
Terminal Box
Manufactured from high impact grade aluminum
IP65 protected
Wheel/Impeller
Manufactured from glass filled UV resistant polyamide
Special Order: Die cast aluminum
Corrosion and weather resistant
Specifications
General Information
Type
Axial Fan
Mount Type
Wall
UPC
812482010480
Performance
Maximum Air Flow
2430 CFM
Electrical Data
Power Consumption
310 Watts
Dimensions
Duct Connection
16 Inches
Product Height
16 5/8 Inches
Product Width
19 11/16 Inches
Product Length
4 1/4 Inches
Product Weight
24 Pounds
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+−
Specifications
General Information
Type
Axial Fan
Mount Type
Wall
UPC
812482010480
Performance
Maximum Air Flow
2430 CFM
Electrical Data
Power Consumption
310 Watts
Dimensions
Duct Connection
16 Inches
Product Height
16 5/8 Inches
Product Width
19 11/16 Inches
Product Length
4 1/4 Inches
Product Weight
24 Pounds
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
