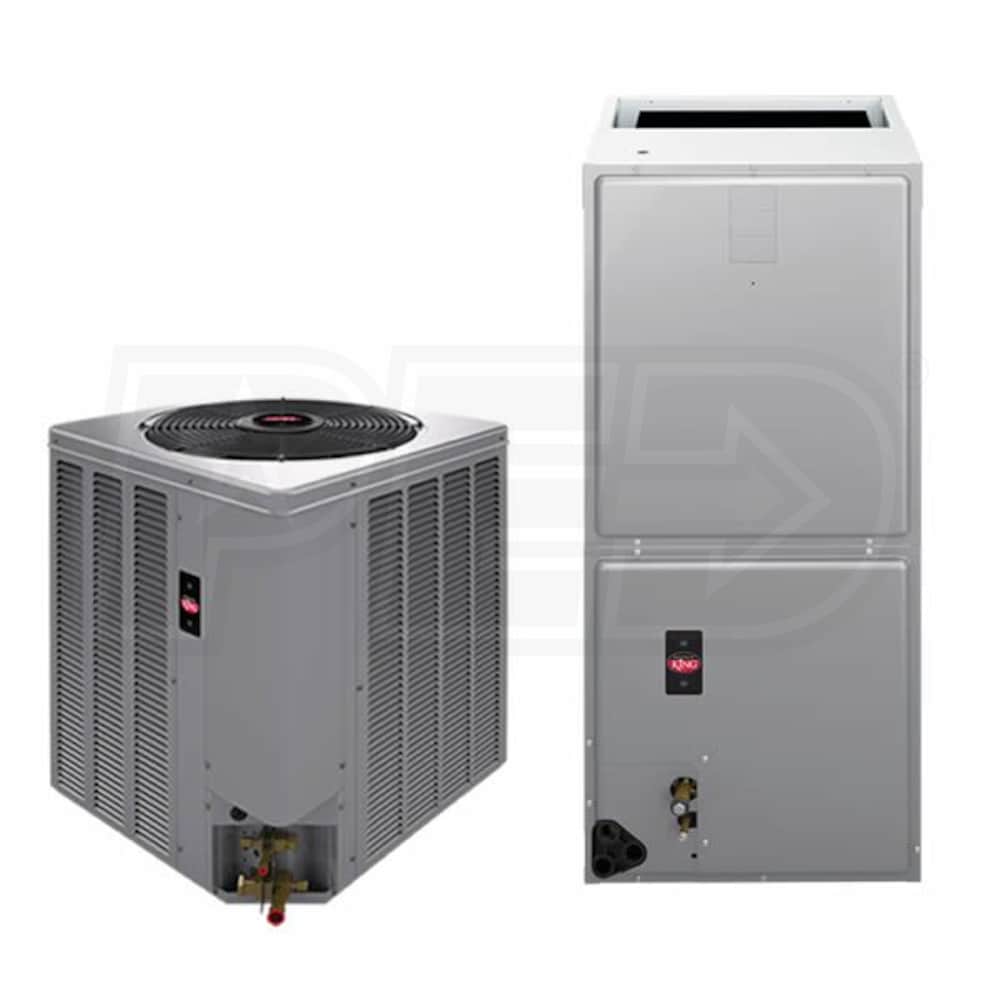

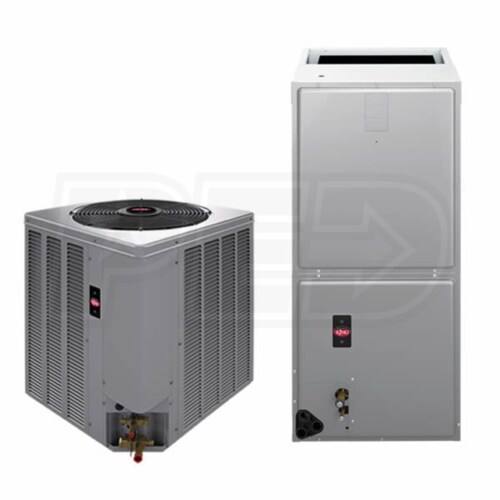

WeatherKing By Rheem - 5.0 Ton Cooling - Air Conditioner + Air Handler Kit - 14.0 SEER

Model:

WA1460WWH1T

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
WeatherKing By Rheem - 5.0 Ton Cooling - Air Conditioner + Air Handler Kit - 14.0 SEER
WeatherKing By Rheem - 5.0 Ton Cooling - Air Conditioner + Air Handler Kit - 14.0 SEER
Model: WA1460WWH1T
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Rheem provides reliable home comfort solutions with its WeatherKing line of HVAC systems. The WA1460WWH1T kit includes an air conditioner and an air handler, providing efficient cooling with a low upfront cost. The WA14 air conditioner features a louvered steel cabinet to protect the unit from the elements and uses a wrap-around outdoor coil for improved airflow and heat transfer. The WH1T air handler features a foil insulated cabinet to retain desired temperature and an all-aluminum evaporator coil for enhanced heat transfer. Each component of the kit is built with durability and reliability in mind, allowing for hassle-free home comfort for years to come.
  • Wrap-Around Coil
  • The WeatherKing WA14 implements a unique wrap-around coil which improves air flow and heat transfer while reducing energy consumption.
  • Solid Construction
  • Made with a sturdy louvered steel cabinet, the WA14 is built to withstand inclement weather, yard hazards, and corrosion.
  • Quiet Operation
  • Several characteristics of the WA14 reduce sound and vibration: a motor mount/grille combination, the discharge pattern of the top grilles that minimizes air restriction, and a one-piece base pan that elevates the coil off the pad to reduce vibration.
  • Filter Drier
  • A filter drier is included in the purchase of this air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
  • ECM Motor
  • The WeatherKing WH1T includes an ECM blower motor for improved efficiency and airflow control.
  • Quiet, Efficient Air Handler
  • Designed with a sturdy steel cabinet and foil faced insulation, the WH1T operates with minimal noise and maximum efficiency.
  • Powerful Performance
  • The WH1T features a factory-installed cooling coil for improved humidity and temperature control. The coil's laced fin design allows for improved energy efficiency and system performance.
  • TXV Valve
  • A thermal expansion valve that comes included with the WH1T provides accurate refrigerant flow, so you can always get the most out of your comfort system.
  • Product Includes
    • (1) WeatherKing By Rheem WA14 - 5 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant - Designed For Southwest Region (WA1460WJ1NA)
    • (1) WeatherKing By Rheem WH1T - 5 Ton - Air Handler - Multi-Position - ECM Motor (WH1T6024STANJA)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) WeatherKing By Rheem WA14 - 5 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant - Designed For Southwest Region (WA1460WJ1NA)
  • (1) WeatherKing By Rheem WH1T - 5 Ton - Air Handler - Multi-Position - ECM Motor (WH1T6024STANJA)
WA1460WWH1T
specs product image PID-95766
General Information
Product Line
WeatherKing
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling Capacity
60000 BTU
Nominal Cooling Capacity
60000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.7
Dimensions
Shipping Weight
455 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8937138
WA1460WJ1NA
General Information
Type
Condenser
Product Line
WeatherKing
Product Sub-line
WA14
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling BTU
60000
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
26 Amps
Recommended Breaker Size
45 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
35 3/8 Inches
Product Width
31 5/8 Inches
Product Depth
31 5/8 Inches
Product Weight
254 Pounds
Shipping Weight
274 Pounds
Certifications
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
WH1T6024STANJA
General Information
Type
Air Handler
Product Line
WeatherKing
Product Sub-line
WH1T
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
ECM
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Electric Heat
Available
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling BTU
60000
Maximum Air Flow
1800 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
55 1/2 Inches
Product Width
24 1/2 Inches
Product Depth
21 11/16 Inches
Product Weight
181 Pounds
Shipping Weight
181 Pounds
Certifications
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
