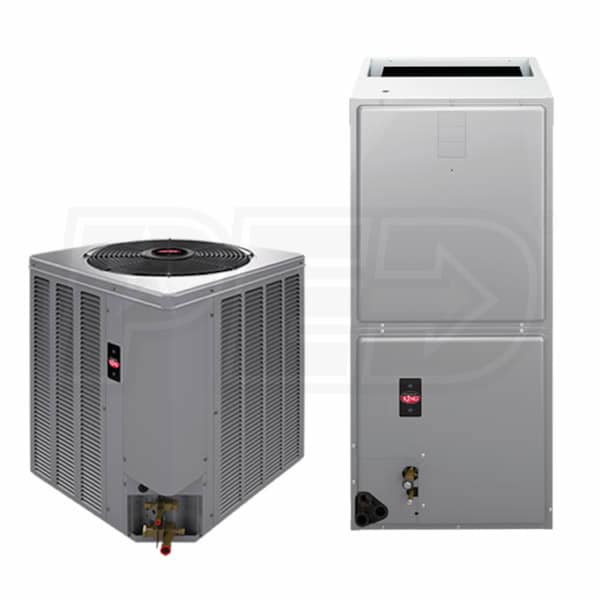

Rheem - 2.5 Ton Cooling - Air Conditioner + Air Handler Kit - 14.0 SEER
Share
+Share This Product
Product Description
Specs
Reviews
Product Q&A
Recommended Accessories
How-To Articles
Manuals
Product Description
+−
Features
Features
Rheem provides reliable home comfort solutions with its WeatherKing line of HVAC systems. The WA1430WH1P kit includes an air conditioner and an air handler, providing efficient cooling with a low upfront cost. The WA14 air conditioner features a louvered steel cabinet to protect the unit from the elements and uses a wrap-around outdoor coil for improved airflow and heat transfer. The included air handler features a foil insulated cabinet to retain desired temperature and an all-aluminum evaporator coil for enhanced heat transfer. Each component of the kit is built with durability and reliability in mind, allowing for hassle-free home comfort for years to come.
Wrap-Around Coil
The WeatherKing WA14 implements a unique wrap-around coil which improves air flow and heat transfer while reducing energy consumption.
Solid Construction
Made with a sturdy louvered steel cabinet, the WA14 is built to withstand inclement weather, yard hazards, and corrosion.
Quiet Operation
Several characteristics of the WA14 reduce sound and vibration: a motor mount/grille combination, the discharge pattern of the top grilles that minimizes air restriction, and a one-piece base pan that elevates the coil off the pad to reduce vibration.
Quiet, Efficient Operation
Designed with a sturdy steel cabinet and foil faced insulation, the WeatherKing WH1P operates with minimal noise and maximum efficiency.
Powerful Performance
The WH1P features a factory-installed cooling coil for improved humidity and temperature control. The coil's laced fin design allows for improved energy efficiency and system performance.
Built to Last
A high-grade drain pan fitted in the WH1P provides reliable operation, while the corrosion-resistant aluminum endplates keep the air handler looking in tip-top shape over the years.
TXV Valve
An included thermal expansion valve provides accurate refrigerant flow, so you can always get the most out of your comfort system.
Product Includes
(1) Rheem WA14 - 2.5 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (WA1430BJ1NA)
(1) Rheem WH1P - 2.5 Ton - Air Handler - Multi-Position - PSC Motor (WH1P3017STANJA)
Product Note
The recommended line set size for this system will vary based on the length of line set you require for installation. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
Specifications
General Information
Product Line
WeatherKing
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Configuration Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
Installation Available
Yes
Performance
Capacity Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling Capacity
28600 BTU
Nominal Cooling Capacity
30000 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
Maximum Air Flow
950 CFM
Dimensions
Shipping Weight
248.5 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10384293
WA1430BJ1NA Specifications+
General Information
Type
Condenser
Product Line
WeatherKing
Product Sub-line
WA14
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
Installation Available
Yes
Performance
Capacity Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
17 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
24 1/4 Inches
Product Width
27 5/8 Inches
Product Depth
27 5/8 Inches
Product Weight
137.5 Pounds
Shipping Weight
144.5 Pounds
Certifications
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
WH1P3017STANJA Specifications+
General Information
Type
Air Handler
Product Line
WeatherKing
Product Sub-line
WH1P
Refrigerant Type
R-410A
Blower Motor
Multi-Speed
Motor Type
PSC
Configuration Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Electric Heat
Available
Installation Available
Yes
Performance
Capacity Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
Maximum Air Flow
1200 CFM
Minimum Air Flow
1000 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
42 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
21 11/16 Inches
Product Weight
104 Pounds
Shipping Weight
104 Pounds
Certifications
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
Rheem provides reliable home comfort solutions with its WeatherKing line of HVAC systems. The WA1430WH1P kit includes an air conditioner and an air handler, providing efficient cooling with a low upfront cost. The WA14 air conditioner features a louvered steel cabinet to protect the unit from the elements and uses a wrap-around outdoor coil for improved airflow and heat transfer. The included air handler features a foil insulated cabinet to retain desired temperature and an all-aluminum evaporator coil for enhanced heat transfer. Each component of the kit is built with durability and reliability in mind, allowing for hassle-free home comfort for years to come.
Wrap-Around Coil
The WeatherKing WA14 implements a unique wrap-around coil which improves air flow and heat transfer while reducing energy consumption.
Solid Construction
Made with a sturdy louvered steel cabinet, the WA14 is built to withstand inclement weather, yard hazards, and corrosion.
Quiet Operation
Several characteristics of the WA14 reduce sound and vibration: a motor mount/grille combination, the discharge pattern of the top grilles that minimizes air restriction, and a one-piece base pan that elevates the coil off the pad to reduce vibration.
Quiet, Efficient Operation
Designed with a sturdy steel cabinet and foil faced insulation, the WeatherKing WH1P operates with minimal noise and maximum efficiency.
Powerful Performance
The WH1P features a factory-installed cooling coil for improved humidity and temperature control. The coil's laced fin design allows for improved energy efficiency and system performance.
Built to Last
A high-grade drain pan fitted in the WH1P provides reliable operation, while the corrosion-resistant aluminum endplates keep the air handler looking in tip-top shape over the years.
TXV Valve
An included thermal expansion valve provides accurate refrigerant flow, so you can always get the most out of your comfort system.
Product Includes
(1) Rheem WA14 - 2.5 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (WA1430BJ1NA)
(1) Rheem WH1P - 2.5 Ton - Air Handler - Multi-Position - PSC Motor (WH1P3017STANJA)
Product Note
The recommended line set size for this system will vary based on the length of line set you require for installation. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
Specifications
General Information
Product Line
WeatherKing
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Configuration Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
Installation Available
Yes
Performance
Capacity Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling Capacity
28600 BTU
Nominal Cooling Capacity
30000 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
Maximum Air Flow
950 CFM
Dimensions
Shipping Weight
248.5 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10384293
WA1430BJ1NA Specifications+
General Information
Type
Condenser
Product Line
WeatherKing
Product Sub-line
WA14
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
Installation Available
Yes
Performance
Capacity Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
17 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
24 1/4 Inches
Product Width
27 5/8 Inches
Product Depth
27 5/8 Inches
Product Weight
137.5 Pounds
Shipping Weight
144.5 Pounds
Certifications
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
WH1P3017STANJA Specifications+
General Information
Type
Air Handler
Product Line
WeatherKing
Product Sub-line
WH1P
Refrigerant Type
R-410A
Blower Motor
Multi-Speed
Motor Type
PSC
Configuration Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Electric Heat
Available
Installation Available
Yes
Performance
Capacity Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
Maximum Air Flow
1200 CFM
Minimum Air Flow
1000 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
42 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
21 11/16 Inches
Product Weight
104 Pounds
Shipping Weight
104 Pounds
Certifications
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+−
Specifications
General Information
Product Line
WeatherKing
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Configuration Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
Installation Available
Yes
Performance
Capacity Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling Capacity
28600 BTU
Nominal Cooling Capacity
30000 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
Maximum Air Flow
950 CFM
Dimensions
Shipping Weight
248.5 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10384293
WA1430BJ1NA Specifications+
General Information
Type
Condenser
Product Line
WeatherKing
Product Sub-line
WA14
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
Installation Available
Yes
Performance
Capacity Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
17 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
24 1/4 Inches
Product Width
27 5/8 Inches
Product Depth
27 5/8 Inches
Product Weight
137.5 Pounds
Shipping Weight
144.5 Pounds
Certifications
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
WH1P3017STANJA Specifications+
General Information
Type
Air Handler
Product Line
WeatherKing
Product Sub-line
WH1P
Refrigerant Type
R-410A
Blower Motor
Multi-Speed
Motor Type
PSC
Configuration Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Electric Heat
Available
Installation Available
Yes
Performance
Capacity Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
Maximum Air Flow
1200 CFM
Minimum Air Flow
1000 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
42 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
21 11/16 Inches
Product Weight
104 Pounds
Shipping Weight
104 Pounds
Certifications
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
+−
Be the First to Write a Review
Do you own this product? Please share your insights with fellow shoppers.
Product Q&A
+−
Be the first to ask a question.
Recommended Accessories
+−
Expert Recommended Accessories Hand Picked By Our Expert Chris
