Reznor WS-60/85-HA11
Reznor WS-60/85-HA11
Hover to zoom
1 Of 5

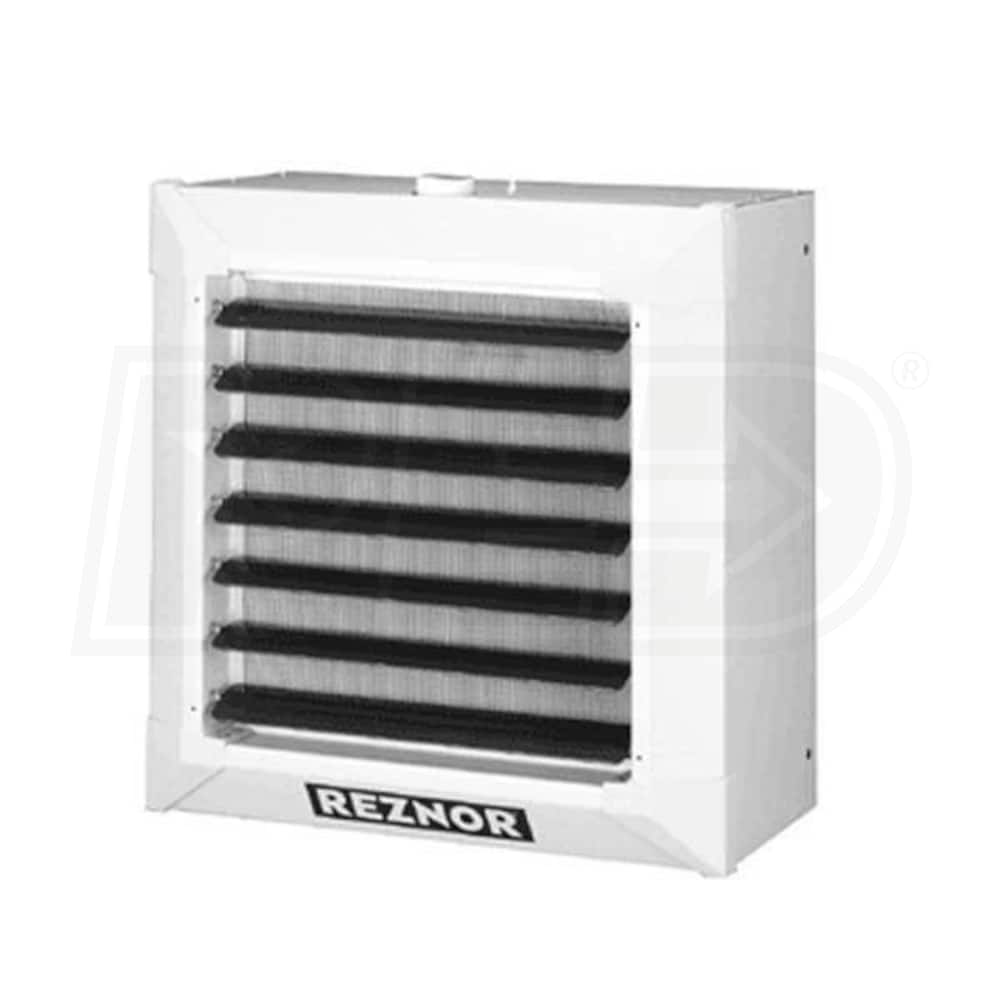

Reznor WS-60/85 Suspended Hydronic Unit Heater - 2 Row Steel Coil - Hot Water Only - 85,000 BTU
Model: WS-60/85-HA11
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$747.09
Was $786.41
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Input Capacity (BTU/h)
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • 2
    Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Reznor WS-60/85-HA11 Suspended Hydronic Unit Heater is a two-speed hydronic suspended unit heater designed with an output capacity of 85000 BTU/hr. WS models are designed for a high-pressure of 150 PSI for hot water usage. Heat exchangers are coated with a special paint to increase lifetime usage and thermal output. Cabinets are painted for corrosion resistance and designed with shake-proof screws for additional strength and durability.
  • Reznor WS-60/85-HA11 Features
  • Steel tube heat exchanger with aluminum fins
  • Galvanized fan guard
  • Cabinet composed with shake-proof screws and molded corner sections
  • Spring mounted horizontal louvers
Specifications
General Information
Product Line
WS
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Hydronic
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Performance
Heating Capacity
64000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
85000 BTU
Maximum Air Flow
1250 CFM
Minimum Air Flow
800 CFM
Electrical Data
Phase
1
Dimensions
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
20 11/16 Inches
Product Width
20 11/16 Inches
Product Depth
18 5/16 Inches
Product Weight
55 Pounds
Shipping Weight
65 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    Reznor WS-60/85-HA11 Suspended Hydronic Unit Heater is a two-speed hydronic suspended unit heater designed with an output capacity of 85000 BTU/hr. WS models are designed for a high-pressure of 150 PSI for hot water usage. Heat exchangers are coated with a special paint to increase lifetime usage and thermal output. Cabinets are painted for corrosion resistance and designed with shake-proof screws for additional strength and durability.
  • Reznor WS-60/85-HA11 Features
  • Steel tube heat exchanger with aluminum fins
  • Galvanized fan guard
  • Cabinet composed with shake-proof screws and molded corner sections
  • Spring mounted horizontal louvers
Specifications
General Information
Product Line
WS
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Hydronic
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Performance
Heating Capacity
64000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
85000 BTU
Maximum Air Flow
1250 CFM
Minimum Air Flow
800 CFM
Electrical Data
Phase
1
Dimensions
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
20 11/16 Inches
Product Width
20 11/16 Inches
Product Depth
18 5/16 Inches
Product Weight
55 Pounds
Shipping Weight
65 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Product Line
WS
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Hydronic
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Performance
Heating Capacity
64000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
85000 BTU
Maximum Air Flow
1250 CFM
Minimum Air Flow
800 CFM
Electrical Data
Phase
1
Dimensions
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
20 11/16 Inches
Product Width
20 11/16 Inches
Product Depth
18 5/16 Inches
Product Weight
55 Pounds
Shipping Weight
65 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(2)
+
Search Product Q&A's Answered by Bob, the Heating Product Expert
icon-social-fb1
+
I would like to incorporate this with my existing hydronic heat as I have a surplus off hot water. Is this suitable for potable water use?
Travis
from Pennsylvania
June 03, 2016
Answer
I am not aware of any hot water unit heaters that are approved for use in a potable water system. I would suggest isolating your unit heater with a heat exchanger.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
Does this unit require a thermostat directly hooked up to it, or can we use room stat in a closed loop system? I guess my question is what tells the fan to come on? Is there an internal thermostat in the unit?
Joe
from New Jersey
June 03, 2016
Answer
You will need to provide some type of control to turn the fan on and off. You can use a relay in combination with the room thermostat, or install an aquastat that monitors the water temperature in the pipe and turns on the fan once it reaches a certain temperature.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
