Reznor UDBS-250-AC2-AK5
Reznor UDBS-250-AC2-AK5
Hover to zoom
1 Of 5

Model:

UDBS-250-AC2-AK5

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Model: UDBS-250-AC2-AK5
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Reznor UDBS-250-AC2-AK5 High Static Gas Fired Unit Heater is a 208 volt, gas fired high static unit heater designed to provide efficient heating. Reznor UDBS-250-AC2-AK5 is certified for commercial and industrial use to provide a 250000 BTU/hr. output with an 82-83% thermal efficiency. Vibration isolated venter motors reduce operating noise. UDBS-250-AC2-AK5 provides a 45-75 F rise range. UDBS models use an integrated circuit board with diagnostic indicator lights to control heater operation. External gas connection allows for easy gas service connection. Reznor UDBS-250-AC2-AK5 is designed to be suspended from 4 suspension points. UDBS-250-AC2-AK5 provides improved efficiency and easier installation over previous Reznor models.
  • Reznor UDBS-250-AC2-AK5 Features
  • Certified for commercial/industrial heating
  • Titanium stabilized stainless heat exchanger
  • Multi-try direct spark ignition with 100% lockout
  • Vibration isolated venter motors
  • 4-pt suspension
  • Adjustable belt drive blower
  • Product Note

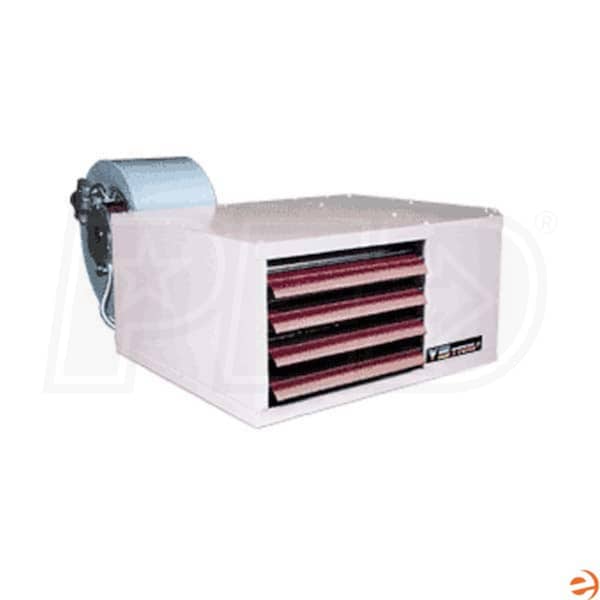

    The image may not reflect actual product features. The Reznor UDBS-250 comes with seven horizontal louvers.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

UDBS-250-AC2-AK5
specs product image PID-47316
General Information
Product Line
UDBS
Heat Exchanger Material
Stainless Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Mount Type
Suspended
Additional Model Numbers

UDBS-250-AC2-AK5, UDBS-250-AC2-AK5

Performance
Heating Capacity
208000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
250000 BTU
Thermal Efficiency
83 %
Maximum Air Flow
4270 CFM
Minimum Air Flow
2562 CFM
Electrical Data
Voltage
208 Volts
Phase
3
Frequency
60 Hz
Dimensions
Flue Connection Size
5 Inches
Gas Connection Size
3/4 Inch
Product Height
39 5/8 Inches
Product Width
38 1/8 Inches
Product Depth
63 7/16 Inches
Product Weight
335 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
