On Sale

Reznor EGEB-7-AK16
Reznor EGEB-7-AK16
Hover to zoom
1 Of 5

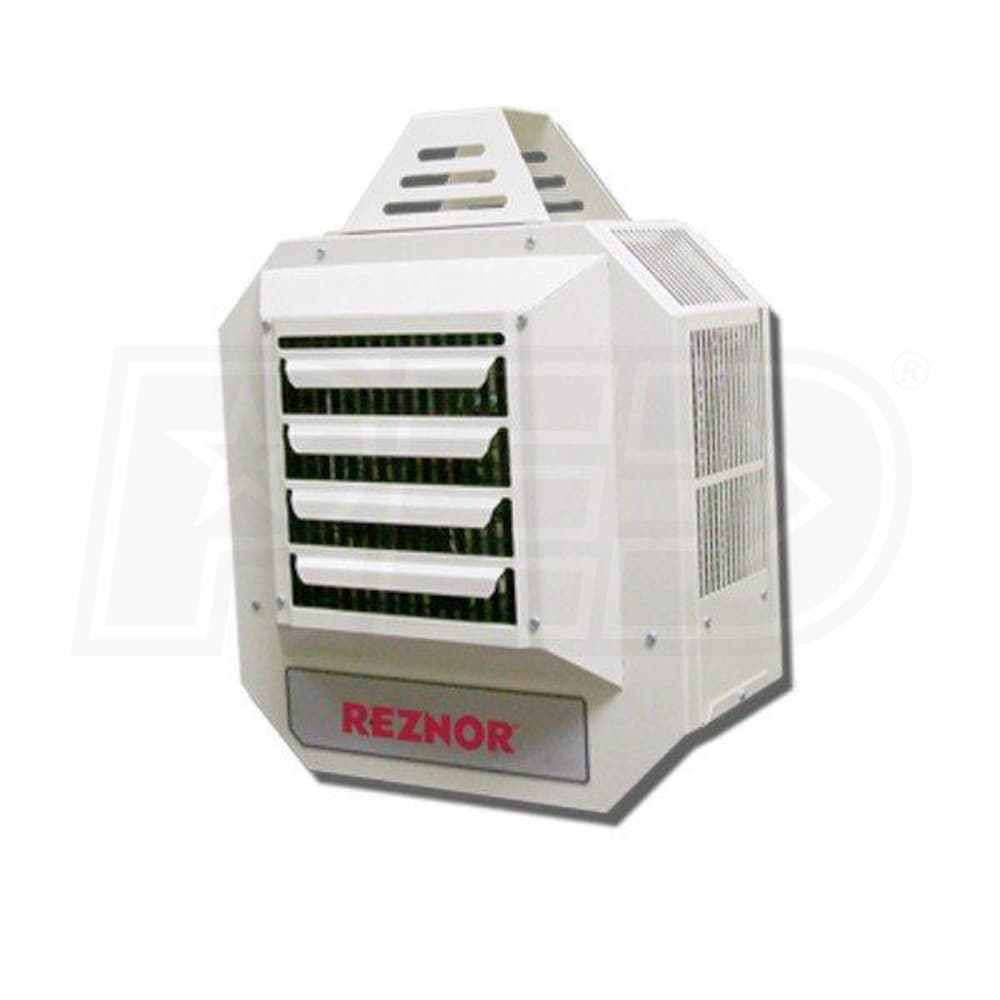

Reznor EGEB-7 Suspended Electric Unit Heater, 240V, 1 or 3 Phase - 7.5 kW (25,608 BTU)
Model: EGEB-7-AK16
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(2)
Write a Review
$833.63
Was $877.51
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Voltage
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The Reznor EGEB-7-AK16 Suspended Electric Unit Heater is a 240 volt, standard-duty suspended electric unit heater. It has an maximum heat capacity of 25608 BTU/hr. The Reznor EGEB-7-AK16 Suspended Electric Unit Heater is designed for commercial hallways, stairwells, factories, warehouses, or shipping room installation. Its exterior is coated in an epoxy/polyester powder paint which is corrosion resistant helping to maintain its appearance for years. EGEB-7-AK16 includes wall and ceiling mounting brackets for horizontal air flow mounting and 4 weld nuts for vertical air flow mounting. The EGEB-7-AK16 Suspended Electric Unit Heater has a draw-through design for more evenly heated air and greater heat transfer. Individually adjustable louvers allow for easier directed air flow.
  • Reznor EGEB-7-AK16 Features
  • Draw-through design to evenly heat air
  • 18 and 20 gauge steel cabinet
  • Individually adjustable louvers to direct airflow
  • Stainless steel heating elements with aluminum fins
  • Epoxy/polyester powder paint
  • Two speed fan switch
  • Integral Thermostat
Specifications
General Information
Type
Standard
Product Line
EGEB
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
25608 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
25608 BTU
Heating Capacity (kW)
7.5 kW
Maximum Air Flow
625 CFM
Minimum Air Flow
625 CFM
Electrical Data
Voltage
240 Volts
Frequency
60 Hz
Recommended Breaker Size
55 Amps
Current Draw
31.25 Amps
Dimensions
Product Height
24 1/2 Inches
Product Width
22 Inches
Product Depth
9 7/8 Inches
Product Weight
59 Pounds
Shipping Weight
69 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    The Reznor EGEB-7-AK16 Suspended Electric Unit Heater is a 240 volt, standard-duty suspended electric unit heater. It has an maximum heat capacity of 25608 BTU/hr. The Reznor EGEB-7-AK16 Suspended Electric Unit Heater is designed for commercial hallways, stairwells, factories, warehouses, or shipping room installation. Its exterior is coated in an epoxy/polyester powder paint which is corrosion resistant helping to maintain its appearance for years. EGEB-7-AK16 includes wall and ceiling mounting brackets for horizontal air flow mounting and 4 weld nuts for vertical air flow mounting. The EGEB-7-AK16 Suspended Electric Unit Heater has a draw-through design for more evenly heated air and greater heat transfer. Individually adjustable louvers allow for easier directed air flow.
  • Reznor EGEB-7-AK16 Features
  • Draw-through design to evenly heat air
  • 18 and 20 gauge steel cabinet
  • Individually adjustable louvers to direct airflow
  • Stainless steel heating elements with aluminum fins
  • Epoxy/polyester powder paint
  • Two speed fan switch
  • Integral Thermostat
Specifications
General Information
Type
Standard
Product Line
EGEB
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
25608 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
25608 BTU
Heating Capacity (kW)
7.5 kW
Maximum Air Flow
625 CFM
Minimum Air Flow
625 CFM
Electrical Data
Voltage
240 Volts
Frequency
60 Hz
Recommended Breaker Size
55 Amps
Current Draw
31.25 Amps
Dimensions
Product Height
24 1/2 Inches
Product Width
22 Inches
Product Depth
9 7/8 Inches
Product Weight
59 Pounds
Shipping Weight
69 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Type
Standard
Product Line
EGEB
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
25608 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
25608 BTU
Heating Capacity (kW)
7.5 kW
Maximum Air Flow
625 CFM
Minimum Air Flow
625 CFM
Electrical Data
Voltage
240 Volts
Frequency
60 Hz
Recommended Breaker Size
55 Amps
Current Draw
31.25 Amps
Dimensions
Product Height
24 1/2 Inches
Product Width
22 Inches
Product Depth
9 7/8 Inches
Product Weight
59 Pounds
Shipping Weight
69 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
(2)
+
Reznor EGEB-7-AK16 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Bob, the Heating Product Expert
icon-social-fb1
+
Is this unit thermostatically controlled and is the fan able to be used separate from heat?
Alden
from Colorado
March 24, 2016
Answer
The EGEB heaters are sold without controls. The unit can be used with remote line voltage thermostats, remote low voltage thermostat (w/ low voltage control option), or a factory installed internal thermostat can be specified. Additionally, the heater is available with a unit mounted fan switch or a 24V fan relay to control fan operation as a factory installed option.
