Revolv - 3.5 Ton Cooling - 75k BTU/Hr Heating - Heat Pump + Electric Furnace Kit - 14.0 SEER - 100% Efficiency - For Downflow Installation

Revolv - 3.5 Ton Cooling - 75k BTU/Hr Heating - Heat Pump + Electric Furnace Kit - 14.0 SEER - 100% Efficiency - For Downflow Installation
Our Price
Compare Prices
Shipping Info
Model: RSHQ424RE923CD
$3,408.00

Ships in 7-14 Business Days
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Add-Ons

Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The RSHQ424RE923CD combines a Revolv RSH heat pump with a RE9 electric furnace to provide a whole home comfort solution. Designed for easy installation in mobile and manufactured housing, these units are specifically designed to fit into tight spaces and operate with minimum combustion clearances. These systems also feature Revolv's AccuCharge® systems, to help streamline installation and simplify your home's heating and cooling.
  • AccuCharge® with FitRight® Fittings
  • All AccuCharge® units come with a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The combination of the two are engineered for superior efficiency and reliability.
  • Corrosion Resistant Finish
  • The Revolv AccuCharge® air conditioners are made of a galvanized steel with a polyester urethane coat finish. They are then sprayed with a 950 hour salt finish that has a 50% better corrosion resistant rating than comparable units.
  • Composite Base Pan
  • A composite base pan is stronger and lighter than your standard steel base pan. Being composite, it absorbs sound better and is also corrosion resistant.
  • High Pressure Switch
  • The AccuCharge® heat pumps come with a high pressure switch that protects your unit against unsafe high system pressures. It has an auto-reset feature that prevents unnecessary service visits.
  • Louvered Condenser Guard
  • The AccuCharge® air conditioners have a durable metal guard that protects the coil from extreme weather or objects hitting it and damaging your unit.
  • Nichrome Heating Elements
  • Revolv electric furnaces feature nichrome heating elements, designed to provide long lasting, efficient heating without breaking the bank.
  • Built in Coil Cabinet
  • The Revolv RE9D models come with a coil cabinet built into the unit. This means they are ready for installation without the need to buy additional parts.
  • Multi-Speed Fan
  • The RE9 uses a four-speed motor for the blower, giving you excellent airflow that can be scaled to the size of your home.
  • Factory Installed TXV Valve
  • The AccuCharge® coils come installed with a thermal expansion valve (TXV) that helps control the amount of refrigerant flow into the evaporator.
  • Mounted TXV Sensor Bulb
  • The TXV sensor bulb is what senses how much refrigerant to flow through the coil. In the AccuCharge® coils, it is mounted properly on the suction line for precise readings.
  • Failure Prevention
  • AccuCharge® coils have features to prevent premature failure of your coil. It has a built-in strainer to prevent debris from entering the coil. It also has a dry-type pan so that it doesn't hold standing water.
  • Product Includes

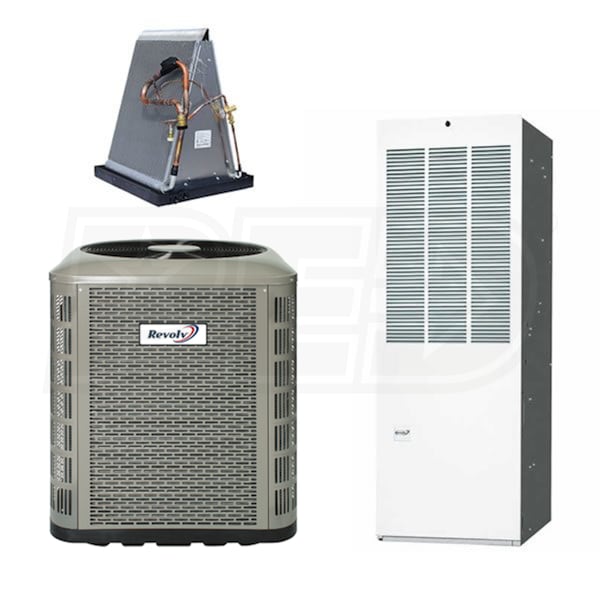

    • (1) Revolv AccuCharge® - 3.5 Ton - Heat Pump - Manufactured Home - 14.0 Nominal SEER - Single-Stage - R-410a Refrigerant (RSHQ424)
    • (1) Revolv - 75k BTU - Electric Furnace - Manufactured Home - 100% Efficiency - 23 kW - Downflow - Multi-Speed - Includes Coil Cabinet (RE9D23C4)
    • (1) Revolv AccuCharge® 14 SEER Series - 3.5 Ton - Upflow/Downflow Micro-Channel Coil - Uncased (C8QAMX42U-B)
Specifications
General Information
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Configuration Learn More Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
DOE Regional Compliance Learn More In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
No
Additional Model Numbers
RSH1442RE923CD, RSHQ424RE923CD
Performance
Cooling Capacity
40500 BTU
Heating Capacity
75000 BTU
Capacity Learn More Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Nominal Cooling Capacity
42000 BTU
SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER Learn More EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
HSPF Learn More HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.5
Efficiency
100 %
Dimensions
Product Weight
369 Pounds
Shipping Weight
387 Pounds
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
RSHQ424 Specifications+
General Information
Type
Heat Pump
Product Line
AccuCharge
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance Learn More In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling BTU
42000
Heating Capacity
42000 BTU
Capacity Learn More Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER Learn More EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
79 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
40 Amps
Dimensions
Product Height
45 1/4 Inches
Product Width
31 3/4 Inches
Product Depth
31 3/4 Inches
Product Weight
234 Pounds
Shipping Weight
244 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
7/8 Inch
Certifications
Energy Star Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
RE9D23C4 Specifications+
General Information
Type
Electric Furnace
Blower Type Learn More Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
PSC Multi-Speed
Configuration Learn More Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
Performance
Heating Capacity (kW)
23 kW
Heating BTU
75000
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
93.8 Amps
Recommended Breaker Size
125 Amps
Dimensions
Product Height
60 Inches
Product Width
20 Inches
Product Depth
24 29/48 Inches
Product Weight
112 Pounds
Shipping Weight
112 Pounds
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
C8QAMX42U-B Specifications+
General Information
Type
Evaporator Coil
Refrigerant Type
R-410A
Casing
Uncased
Style
A Coil
Configuration Learn More Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
Installation Available
No
Performance
Cooling BTU
42000
Capacity Learn More Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Dimensions
Liquid Connection Size
3/8 Inch
Suction Connection Size
7/8 Inch
Product Height
25 Inches
Product Width
18 1/8 Inches
Product Depth
19 1/2 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
