Revolv RPC1442
Revolv RPC1442
Hover to zoom
1 Of 5

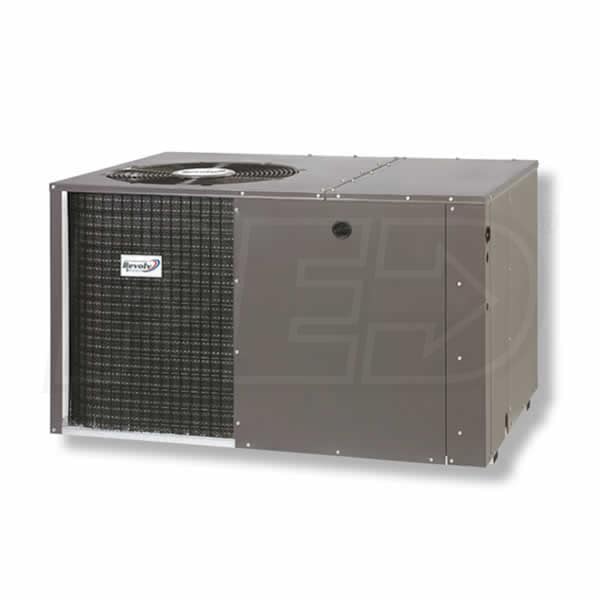

Revolv - 3.5 Ton Cooling - Packaged Air Conditioner - Manufactured Home - 14.0 SEER - Horizontal

Model:

RPC1442

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Revolv - 3.5 Ton Cooling - Packaged Air Conditioner - Manufactured Home - 14.0 SEER - Horizontal
Revolv - 3.5 Ton Cooling - Packaged Air Conditioner - Manufactured Home - 14.0 SEER - Horizontal
Model: RPC1442
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The RPC1442 combines everything you will need for whole home cooling in one convenient package. These 14 SEER systems are designed specifically for manufactured and mobile homes as they feature a compact footprint and profile to fit into any environment. The RPC is built with a galvanized steel frame and features micro-channel coils to ensure peak performance for years to come. Pair it with an optional electric heat kit to provide whole home heating as well.
  • Quality Compressor
  • Revolv packaged units come with a state of the art compressor with a built-in Hi Pressure Switch to ensure a long lasting, efficient compressor.
  • Designed With Galvanized Steel
  • Designed to withstand the elements, Revolv packaged units are built with a polyester urethane coat finish, making it 50% more corrosion resistant than comparable units.
  • Micro-Channel Coils
  • All of the Revolv models have all aluminum coils, which are highly corrosion resistant and prevent the unit from premature failure.
  • Compact Footprint and Profile
  • By combining the comrpessor and coil into a single unit, the RPC series provides an easy to install, space-saving alternative to traditional home cooling options.
  • Product Note
    Please note, this product uses RP7RE-042K as its AHRI model number.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RPC1442
specs product image PID-77206
Overview
Product Category
Packaged HVAC Unit
UPC
663132329410
General Information
Type
Air Conditioner Packaged Unit
Product Line
RPC
Product Category
Packaged HVAC Unit
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Blower Type Learn More
Blower Type
Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
ECM Multi-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Cooling BTU
42000
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
76 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
29.3 Amps
Recommended Breaker Size
45 Amps
Dimensions
Product Height
30 5/24 Inches
Product Width
35 Inches
Product Length
49 Inches
Product Weight
283 Pounds
Shipping Weight
297 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8657697
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
