Panasonic 24,000 BTU - 26PEF1U6 - Concealed Duct - Ductless Heat Pump System

Model:

26PEF1U6

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Panasonic 24,000 BTU - 26PEF1U6 - Concealed Duct - Ductless Heat Pump System
Panasonic 24,000 BTU - 26PEF1U6 - Concealed Duct - Ductless Heat Pump System
Model: 26PEF1U6
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Panasonic 26PEF1U6 Heat Pump Concealed Duct Ductless Heat Pump System - 24,000 BTU

    Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. The new 2012 line of Panasonic mini splits represents a step forward in both aesthetics and performance, allowing Panasonic to offer one of the top mini split lines on the market. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use.

    The 26PEF1U6 Mini-Split air conditioner system is a fine example of Panasonic's engineering aptitude. This 24,000 system is guaranteed to meet any need a customer may have. The efficiency offered by this system is incredibly high, allowing anyone to save money on energy bills. The indoor units look great in any home, a sleek and stylish addition to any living space. The outdoor units represent Panasonic's pinnacle in engineering skill, combining high efficiency and operating range with a low footprint. The Panasonic 26PEF1U6 Concealed Duct Ductless Heat Pump System is an incredible addition to new or existing construction.

    Panasonic 26PEF1U6 Concealed Duct Ductless Heat Pump System Features:
    • 24,000 BTU Capacity
    • Panasonic Engineering Quality and Experience
    • Concealed Duct
    • Environmentally Safe R-410A Refrigerant
    • Meets a Wide Variety of Air Quality Regulations

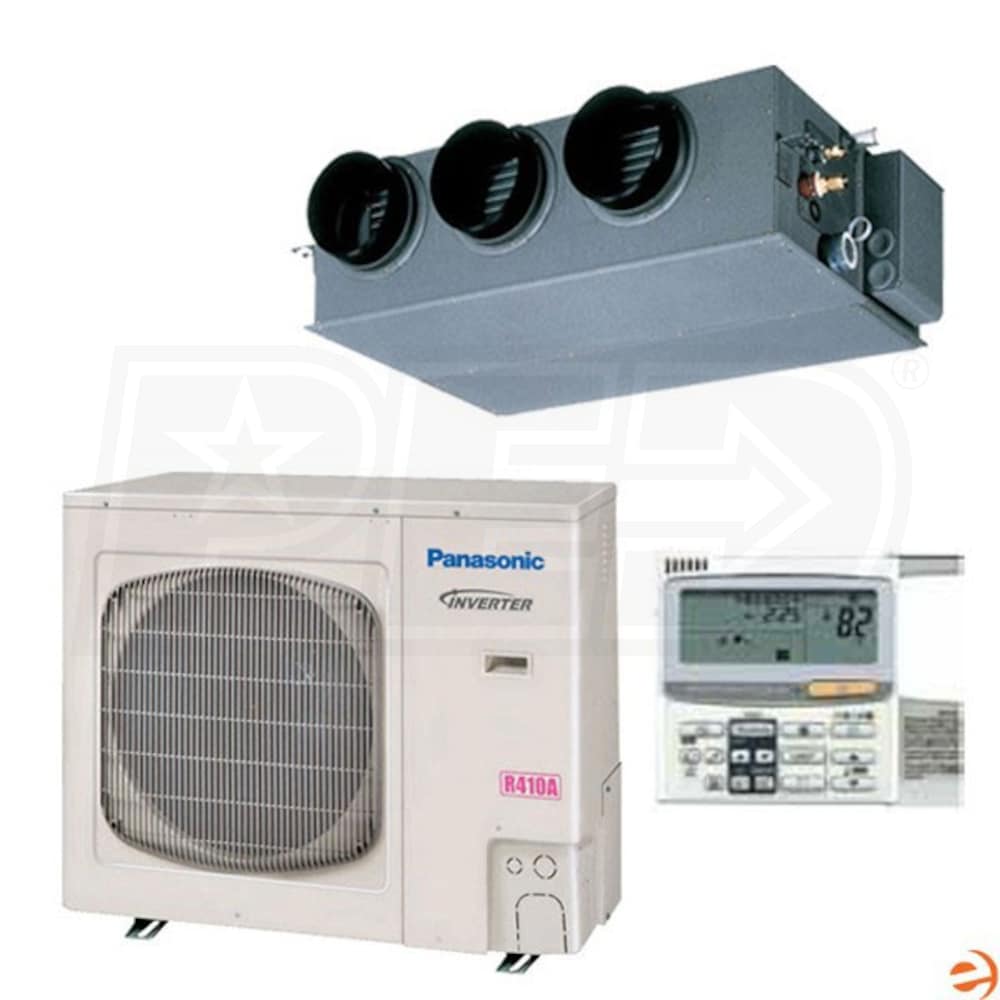

    Panasonic 26PEF1U6 Concealed Duct Ductless Heat Pump System Contents:
    • (1) U-26PE1U6 Outdoor Condenser
    • (1) S-26PF1U6 Concealed Duct Indoor Unit with Remote Control
    Panasonic 26PEF1U6 Concealed Duct Ductless Heat Pump System Warranty Information:
    • Parts Warranty: 5 years
    • Compressor Warranty: 7 years
    eComfort Note:

    To complete the Panasonic 26PEF1U6 Concealed Duct Ductless Heat Pump System, consider adding the following accessories that are required to complete every ductless heat pump system installation to your order:

    • Line Set - efficiently double insulated tubing that transfers refrigerant between indoor and outdoor units
    • Drain Tubing - a tube that drains condensate from the indoor unit to the drain system or outside
    • Connecting Wire - provides power from an Outdoor unit to the indoor Units
    • Disconnect Box & Electrical Whip Kit - provides power for an Outdoor Unit
    • Condenser Plastic Pad (optional) - designed as a mounting base for an outdoor units
    • Wall Bracket (optional) - in case you need to mount an outdoor unit on the wall

    By adding the required accessories to the Panasonic 26PEF1U6 Concealed Duct Ductless Heat Pump System you are receiving a complete solution completely ready for installation, so your contractor does not need to purchase required Panasonic Accessories to finish the installation.

California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Panasonic - 26k BTU - CAC Outdoor Condenser - Single Zone Only (U-26PE1U6)
  • (1) Panasonic S-26PF1U6 Mini Split Concealed Duct Indoor Unit - 24,000 BTU (S-26PF1U6)
26PEF1U6
specs product image PID-56163
General Information
Type
Ducted
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
System Code
2400000000
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating Capacity
24000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.9
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
8.9
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.2
Dimensions
Product Weight
199 Pounds
U-26PE1U6
General Information
Type
Outdoor Condenser
Product Line
PEF-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
26000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
165 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
30 35/48 Inches
Product Width
37 Inches
Product Depth
13 3/8 Inches
Product Weight
128 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
S-26PF1U6
General Information
Type
Ducted
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Moisture Removal
7.7 Pints/Hour
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.1
Cooling Power Input
2600 Watts
Maximum Air Flow
670 CFM
Minimum Air Flow
460 CFM
Minimum Sound Level
27 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
34 dB
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
165 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
12 11/48 Inches
Product Width
39 3/8 Inches
Product Length
24 13/16 Inches
Product Weight
71 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
