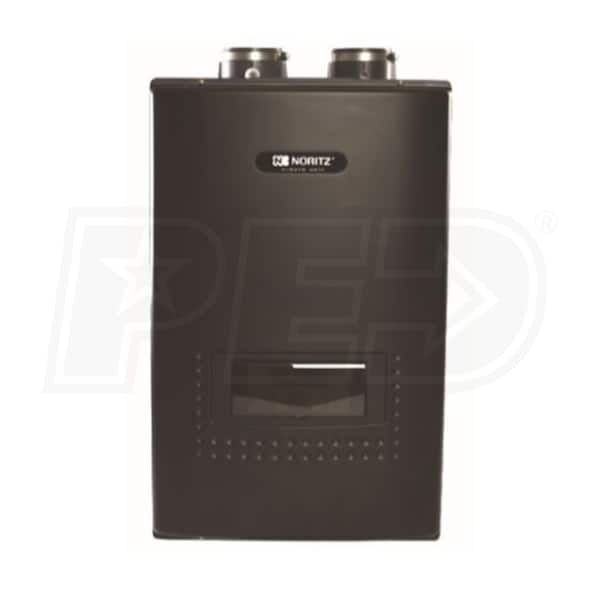

Noritz CB199 - 109K BTU - 95.1% AFUE - Combi Gas Boiler - Direct Vent

Model:

CB199DV-NG

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
View Noritz NRCB199 - 111K BTU - 95% AFUE - Combi Gas Boiler - Direct Vent
Model:
NRCB199DV-NG
$2,757.59
$1,999.00
In-Stock
Noritz CB199 - 109K BTU - 95.1% AFUE - Combi Gas Boiler - Direct Vent
Noritz CB199 - 109K BTU - 95.1% AFUE - Combi Gas Boiler - Direct Vent
Model: CB199DV-NG
Was $2,260.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    Noritz's CB Combi Gas Boiler is a highly efficient and reliable solution to both space heating and domestic hot water needs. The energy-saving performance of the CB boiler ensures that 95.1% of consumed fuel goes directly into heating your home. The CB earns the highest Energy Star rating, allowing homeowners to qualify for various state energy rebates around the country. The CB199 boiler delivers up to 9.2 gallons of domestic hot water per minute and can be used for a variety of space heating applications including radiator, baseboard, or in-floor radiant hydronic heating.
  • High Efficiency Heating and Hot Water
  • Noritz's CB line of combi boilers provide space heating and domestic water with an astounding 95.1% AFUE rating. Delivering up to 9.2 gallons of domestic hot water per minute, the CB199 doesn't compromise performance for efficiency.
  • Compact Design
  • Coming in at only 85 pounds, the CB Combi Boiler weighs significantly less than traditional boilers, making installation a breeze. Its compact size takes up as much as 80% less space than a traditional standing boiler and water heater.
  • Superior Heat Exchangers
  • Built with STS 304 stainless steel, the CB199's three heat exchangers offer higher corrosion resistance and durability than most traditional boilers.
  • Made with Safety in Mind
  • Noritz CB Combi boilers have built-in safety devices including a flame sensor, overheat prevention device, gas leak detection sensor, water leak sensor, and a scald prevention mechanism.
  • Automatic Water Feeder
  • All Noritz Combi boilers feature a built-in automatic water feeder that maintains pressure in your hydronic system, automatically filling up with water as required.
  • Product Note
    When using this model for heating 160 degree output or above, CPVC or PolyPro venting is required. Concentric vent kits are not able to be used in the application. The intake can still be PVC material.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

CB199DV-NG
specs product image PID-82297
General Information
Product Line
CB
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Stainless Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Installation Location
Indoor
Minimum Altitude
0 Feet
Maximum Altitude
10000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Sold Separately
UPC
817000013165
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
120000 BTU
Minimum Input Capacity
18000 BTU
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
109000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
95000 BTU
Minimum Flow Rate
0.5 GPM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Turndown Ratio
6.7
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/4 Inch
Flue Connection Size
3 Inches
Condensate Drain Size
1/2 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Boiler Supply
1 Inch
Boiler Return
1 Inch
Product Height
28 17/24 Inches
Product Width
17 7/24 Inches
Product Depth
14 19/24 Inches
Product Weight
90 Pounds
Shipping Weight
100 Pounds
Certifications
Energy Star Listed
Yes
AHRI Certified
Yes
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
AHRI Reference Number
10511676
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
