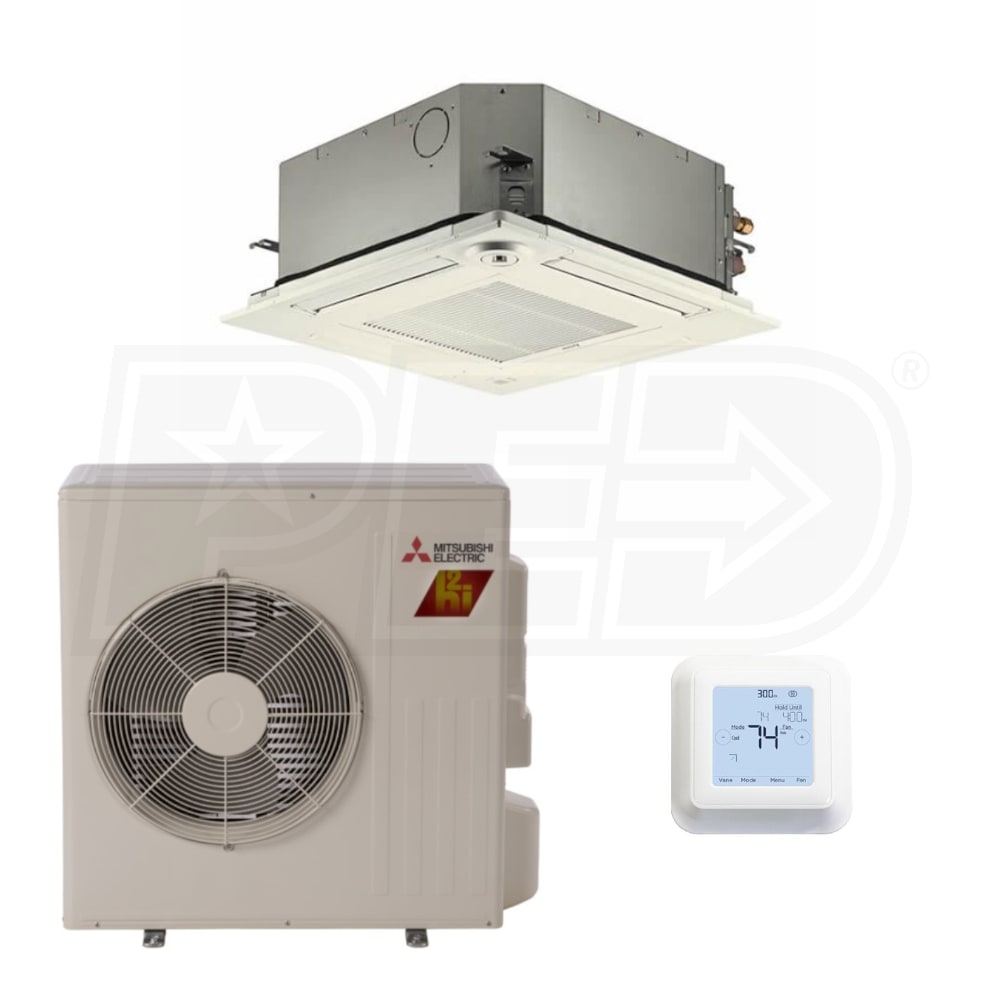

Mitsubishi - 9k BTU Cooling + Heating - M-Series H2i Ceiling Cassette Air Conditioning System - 20.2 SEER

Model:

SL-KF09NAH

Write a Review
$2,743.95
Free Shipping
&
Lift Gate
  Learn More About Free Freight
In-Stock
Ships in 1-3 Business Days
Shipping to60601
synchrony card logo
$49 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Mitsubishi - 9k BTU Cooling + Heating - M-Series H2i Ceiling Cassette Air Conditioning System - 20.2 SEER
Mitsubishi - 9k BTU Cooling + Heating - M-Series H2i Ceiling Cassette Air Conditioning System - 20.2 SEER
Model: SL-KF09NAH
$2,743.95
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Part of Mitsubishi's hyper-heating product line, the SL-KF09NAH is a packaged single zone heat pump mini split system designed to bring high-efficiency zoned comfort to homes in frigid climates. The ceiling cassette indoor unit is designed to bring discreet heating and cooling to any room in your home. Featuring Mitsubishi's 3D i-see Sensor,™ the indoor cassette thermally scans for warm and cold spots so conditioned air can be directed effectively. The outdoor condenser uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With an included wireless remote controller and base pan heater factory installed, this system is the perfect combination of convenience and comfort for any application in a sub-freezing environment.
  • H2i Technology
  • Low or negative ambient temperatures don't bother the SL-KF09NAH. It is rated for 100% heating capacity at 5 degrees F and continues to provide heating in outdoor conditions as low as -13 degrees F.
  • Precision Temperature Control Technology
  • The SUZ outdoor condenser uses inverter technology when cooling or heating your home. Rather than simply turning on and off, the outdoor condenser adjusts output based on temperature demand, resulting in efficient and precise heating and cooling.
  • 3D i-see Sensor™
  • The SLZ-KF cassette unit includes an advanced thermal sensor that scans the room for hot and cold spots as well as occupancy. Using this information, the cassette unit can be programmed to direct airflow to certain areas of the zone in specific scenarios.
  • Hot Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Vane Control
  • Optimal air flow can be achieved with the SLZ-KF thanks to the individual vane control option. This function provides access to an auto mode and a swing mode.
  • Condensate Removal System
  • The SLZ-KF contains an internal drain mechanism capable of lifting condensate 33". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Scheduling Options
  • The MHK2 wireless remote controller kit supports either a 5-2 or a 5-1-1 programmable schedule with four separate temperatures available to each period, making it easy to stay comfortable and efficient without constantly adjusting your system's settings.
  • Product Includes
    • (1) Mitsubishi - 9k - M-Series H2i Univseral Outdoor Condenser - Single Zone Only (SUZ-KA09NAHZ.TH)
    • (1) Mitsubishi - 9k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (SLZ-KF09NA.TH-NG)
    • (1) Mitsubishi RedLINK - Wireless Remote Controller Kit - Programmable - Wall Mounted (MHK2)
    • (1) Mitsubishi SLP-18FAU Ceiling Cassette Grille For Mitsubishi SLZ-KF-NA Mini Split Units - With 3D i-see Sensor (SLP-18FAEU)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.

Specifications

Product Includes
  • (1) Mitsubishi - 9k - M-Series H2i Univseral Outdoor Condenser - Single Zone Only (SUZ-KA09NAHZ.TH)
  • (1) Mitsubishi - 9k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (SLZ-KF09NA.TH-NG)
  • (1) Mitsubishi RedLINK - Wireless Remote Controller Kit - Programmable - Wall Mounted (MHK2)
  • (1) Mitsubishi SLP-18FAU Ceiling Cassette Grille For Mitsubishi SLZ-KF-NA Mini Split Units - With 3D i-see Sensor (SLP-18FAEU)
SL-KF09NAH
specs product image PID-107672
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
9
Outdoor Unit Size
9000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
11000 BTU
SEER Learn More
20.2
EER Learn More
15.0
HSPF Learn More
10.0
Cooling Power Input
600 Watts
Heating Power Input
820 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
160 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
204627031
SUZ-KA09NAHZ.TH
General Information
Type
Outdoor Condenser
Product Line
SUZ H2i
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
9000
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
65 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
34 5/8 Inches
Product Width
38 9/16 Inches
Product Depth
13 Inches
Product Weight
129 Pounds
Shipping Weight
148 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
SLZ-KF09NA-NG
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Indoor Unit Size(s) Learn More
9
Installation Location
Indoor
Grille
Not Included
Required Grille Model
SLP-18FAEU
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
335 CFM
Minimum Air Flow
207 CFM
Minimum Sound Level
25 dB
Maximum Sound Level Learn More
31 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 1/2 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Mini Split Controller
Product Line
RedLINK
Programmable
Yes
Power Source
AA Batteries
Interface
Touchscreen
Performance
Minimum Operating Temperature
32 F
Maximum Operating Temperature
120 F
Dimensions
Product Height
4 1/12 Inches
Product Width
4 1/12 Inches
Product Depth
1 1/16 Inches
SLP-18FAEU
General Information
Type
Grille
Product Line
M-Series
Dimensions
Product Height
6/15 Inch
Product Width
24 29/48 Inches
Product Depth
24 29/48 Inches
Product Weight
5.3 Pounds
