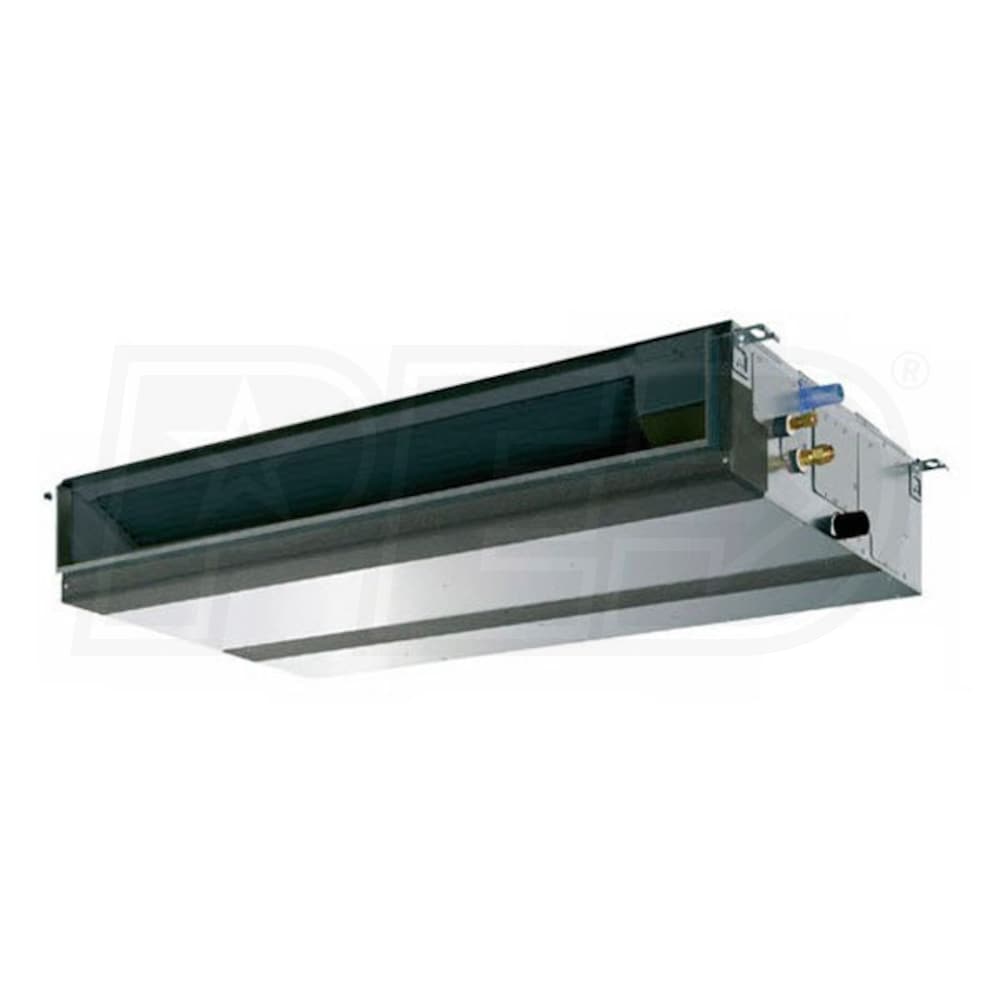

Mitsubishi - 12k BTU - M-Series Concealed Duct Unit - For Multi or Single-Zone

Mitsubishi - 12k BTU - M-Series Concealed Duct Unit - For Multi or Single-Zone
Model: SEZ-KD12NA4R1.TH
$982.00
In-Stock
Ships Monday, Aug 20th
Free Shipping
Free Lift Gate Service -
Capacity (BTU/h)
Add-Ons

In-Stock
Ships Monday, Aug 20th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The SEZ-KD12NA4R1.TH is a concealed duct heat pump mini split indoor unit for use in single zone and multi-zone systems. This unit is easily hidden in short-run ducting and operates quietly, making it the perfect choice for unobtrusive zoned comfort. With the SEZ-KD12NA4R1.TH, a small air register is the only evidence of that a powerful and efficient mini split is servicing your room. With multiple operating modes and multiple fan speeds, this unit fits the needs of nearly any room. Whether you are designing a primary heating and cooling system or supplementing an existing one, the SEZ-KD12NA4R1.TH is an excellent addition.
  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Condensate Removal System
  • The SEZ-KD12NA4R1.TH contains an internal drain mechanism capable of lifting condensate 21-11/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Product Compatible With
  • Mitsubishi MXZ-2B20NA-1 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-3C24NA Mini-Split Outdoor Condenser
  • Mitsubishi MXZ-3C30NA Mini Split Outdoor Condenser
  • Mitsubishi MXZ-4C36NA Mini Split Outdoor Condenser
  • Mitsubishi MXZ-5C42NA Mini Split Outdoor Condenser
  • Mitsubishi MXZ-8C48NA Mini Split Outdoor Condenser
  • Product Note
    This product requires a compatible outdoor condenser and the following accessories for indoor unit installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.

Specifications
General Information
Type
Concealed Duct Unit
Product Line
M-Series
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Installation Location
Indoor
Performance
Nominal Capacity
12000 BTU
Moisture Removal
2.4 Pints/Hour
Minimum Air Flow
247 CFM
Maximum Air Flow
388 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
33 dB
Minimum Sound Level
23 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
0.25 Inches
Gas Connection Size
0.375 Inches
Product Height
7.875 Inches
Product Width
39 Inches
Product Depth
27.5625 Inches
Product Weight
50 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The SEZ-KD12NA4R1.TH is a concealed duct heat pump mini split indoor unit for use in single zone and multi-zone systems. This unit is easily hidden in short-run ducting and operates quietly, making it the perfect choice for unobtrusive zoned comfort. With the SEZ-KD12NA4R1.TH, a small air register is the only evidence of that a powerful and efficient mini split is servicing your room. With multiple operating modes and multiple fan speeds, this unit fits the needs of nearly any room. Whether you are designing a primary heating and cooling system or supplementing an existing one, the SEZ-KD12NA4R1.TH is an excellent addition.
  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Condensate Removal System
  • The SEZ-KD12NA4R1.TH contains an internal drain mechanism capable of lifting condensate 21-11/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Product Compatible With
  • Mitsubishi MXZ-2B20NA-1 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-3C24NA Mini-Split Outdoor Condenser
  • Mitsubishi MXZ-3C30NA Mini Split Outdoor Condenser
  • Mitsubishi MXZ-4C36NA Mini Split Outdoor Condenser
  • Mitsubishi MXZ-5C42NA Mini Split Outdoor Condenser
  • Mitsubishi MXZ-8C48NA Mini Split Outdoor Condenser
  • Product Note
    This product requires a compatible outdoor condenser and the following accessories for indoor unit installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.

Specifications
General Information
Type
Concealed Duct Unit
Product Line
M-Series
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Installation Location
Indoor
Performance
Nominal Capacity
12000 BTU
Moisture Removal
2.4 Pints/Hour
Minimum Air Flow
247 CFM
Maximum Air Flow
388 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
33 dB
Minimum Sound Level
23 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
0.25 Inches
Gas Connection Size
0.375 Inches
Product Height
7.875 Inches
Product Width
39 Inches
Product Depth
27.5625 Inches
Product Weight
50 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+
Specifications
General Information
Type
Concealed Duct Unit
Product Line
M-Series
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Installation Location
Indoor
Performance
Nominal Capacity
12000 BTU
Moisture Removal
2.4 Pints/Hour
Minimum Air Flow
247 CFM
Maximum Air Flow
388 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
33 dB
Minimum Sound Level
23 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
0.25 Inches
Gas Connection Size
0.375 Inches
Product Height
7.875 Inches
Product Width
39 Inches
Product Depth
27.5625 Inches
Product Weight
50 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(1)
+
Mitsubishi SEZ-KD12NA4R1.TH Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
Can you create multiple duct runs from one concealed unit?
Dave
from Missouri
May 25, 2016
Answer
The SEZ concealed units use low static blowers that are designed to be used with short, generously-sized duct systems. It is possible to serve more than one register from a single unit, but your installer will need to determine the appropriate size, length, and layout of the duct system to ensure proper air distribution.
