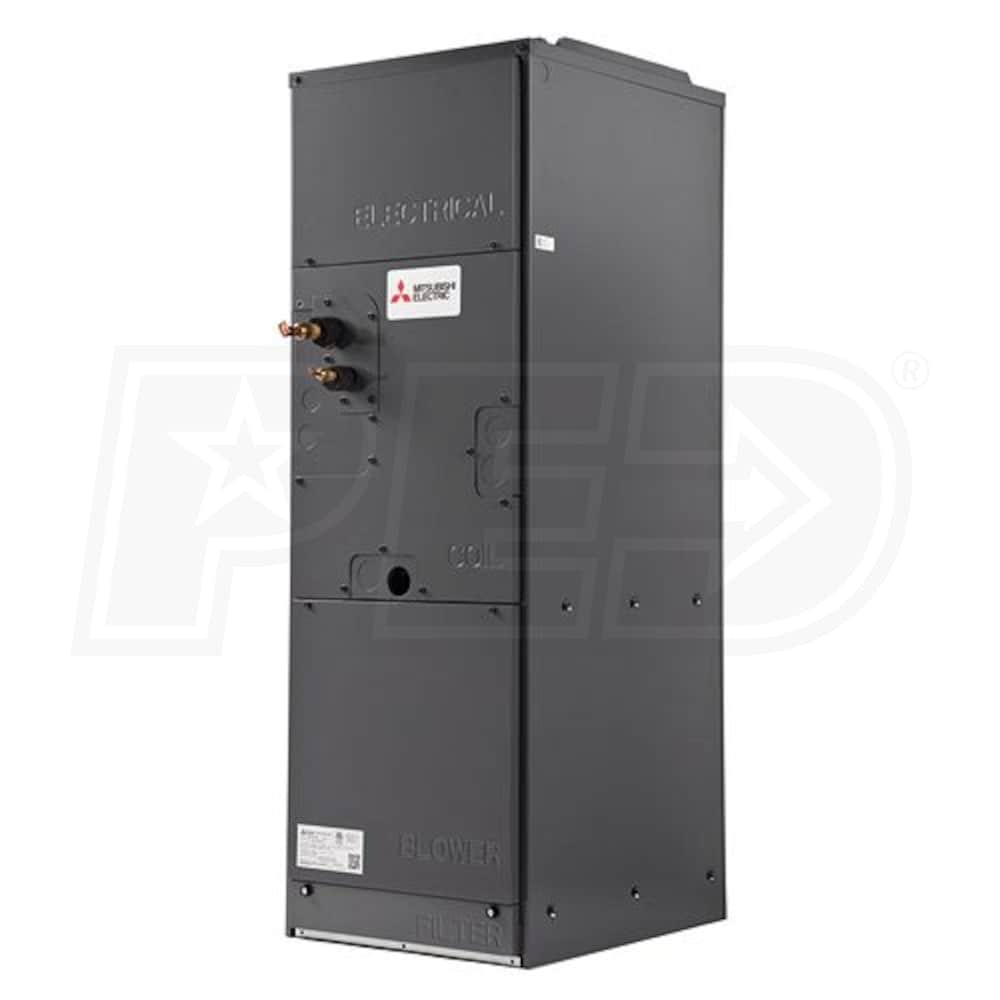

Mitsubishi - 24k BTU - P-Series Multi-Position Air Handler - Single Zone Only

Model:

PVA-A24AA7

Write A Review
Not For Individual Sale
Continue Shopping With These Categories
Mitsubishi - 24k BTU - P-Series Multi-Position Air Handler - Single Zone Only
Mitsubishi - 24k BTU - P-Series Multi-Position Air Handler - Single Zone Only
Model: PVA-A24AA7
$2,412.75
Was $2,557.50
Not For Individual Sale
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    This product requires a compatible outdoor condenser for functionality. For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions.
  • Efficient ECM Motor
  • Highly efficient enclosed motor for optimum performance.
  • Adjustable Static Pressure
  • Selectable static pressure settings with varying fan speeds.
  • Insulated Cabinet
  • 1 inch insulation reduces condensation and improves efficiency.
  • Easy Maintenance Design
  • Blow through design allows for simple coil cleaning.
  • Versatile Installation Options
  • Multi-position installation with optional electric heat kit and controls for customization.
  • Product Note
    • This product requires a compatible Mitsubishi mini split outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.


    Mitsubishi products include a 5-year parts warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at metahvac.com.

Specifications

PVA-A24AA7
specs product image PID-84646
General Information
Type
Ducted Vertical Air Handler
Product Line
P-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating BTU
28000
Moisture Removal
3.7 Pints/Hour
Maximum Air Flow
875 CFM
Minimum Air Flow
613 CFM
Minimum Sound Level
32 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
40 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
54 1/4 Inches
Product Width
21 Inches
Product Depth
21 5/8 Inches
Product Weight
141 Pounds
Shipping Weight
141 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
