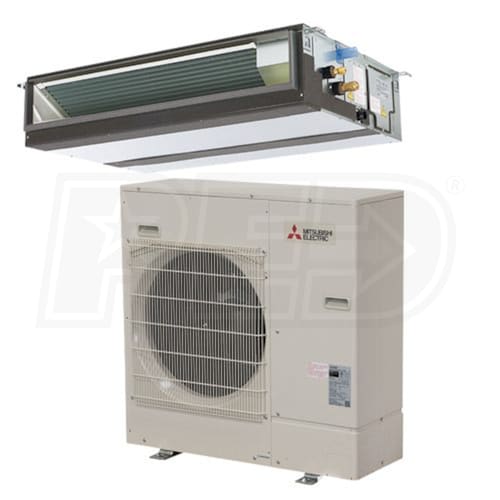

Mitsubishi - 42k BTU Cooling + Heating - P-Series H2i Concealed Duct Air Conditioning System - 14.3 SEER

Model:

PEZ-HA42NHA

Write a Review
$8,070.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Backordered
Estimated Availability March 17, 2022
Shipping to60601
synchrony card logo
$101 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Mitsubishi - 42k BTU Cooling + Heating - P-Series H2i Concealed Duct Air Conditioning System - 14.3 SEER
Mitsubishi - 42k BTU Cooling + Heating - P-Series H2i Concealed Duct Air Conditioning System - 14.3 SEER
Model: PEZ-HA42NHA
$8,070.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Part of Mitsubishi's hyper-heating product line, the PEZ-HA42NHA4 is a packaged single zone heat pump mini split system designed to bring high-efficiency zoned temperature control to large homes and businesses in frigid climates while taking advantage of existing ductwork. A concealed duct indoor unit, PEAD-A42AA7, is paired with an outdoor condenser that uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With the PEAD-A42AA7, a small air register is the only evidence of that a powerful and efficient mini split is servicing your room. As part of Mitsubishi's commercial P-Series, the condenser is constructed with industrial-grade materials to ensure consistent performance in the harshest conditions, making this system ideal for critical applications that require constant conditioning in a sub-freezing environment.
  • Precision Temperature Control Technology
  • The PUZ-HA42NHA outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.
  • H2i Technology
  • The PUZ-HA42NHA maintains heating operation with outdoor temperatures as low as -13 F. The PEZ-HA42NHA also features hot-start heat-pump technology to ensure that no cold air escapes during warm up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Condensate Removal System
  • The PEAD-A42AA contains an internal drain mechanism capable of lifting condensate 27-9/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Product Includes
    • (1) Mitsubishi - 42k BTU - P-Series H2i Outdoor Condenser - Single Zone Only (PUZ-HA42NKA1)
    • (1) Mitsubishi - 42k BTU - P-Series Concealed Duct Unit - For Single-Zone (PEAD-A42AA7)
    Product Note
    This product requires the following accessories for installation:
    • Thermostat - Mitsubishi P-Series mini splits do not include a thermostat for system control. Recommended thermostats can be found under the "Accessories" tab.
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.

Specifications

Product Includes
  • (1) Mitsubishi - 42k BTU - P-Series H2i Outdoor Condenser - Single Zone Only (PUZ-HA42NKA1)
  • (1) Mitsubishi - 42k BTU - P-Series Concealed Duct Unit - For Single-Zone (PEAD-A42AA7)
PEZ-HA42NHA
specs product image PID-62800
General Information
Type
Concealed Duct
Product Line
P-Series
Product Sub-line
Hyper-Heating
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
36
Outdoor Unit Size
42000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
42000
Cooling Capacity
42000 BTU
Heating Capacity
48000 BTU
SEER Learn More
14.3
EER Learn More
10.0
HSPF Learn More
10.8
Cooling Power Input
4200 Watts
Heating Power Input
3800 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
393 Pounds
Shipping Weight
397 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
201754492
PUZ-HA42NKA1
General Information
Type
Outdoor Condenser
Product Line
P-Series
Operating Mode Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Variable-Speed
Performance
Cooling BTU
42000
Maximum Sound Level Learn More
51 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
37 Amps
Recommended Breaker Size
44 Amps
Dimensions
Maximum Line Length
245 Feet
Refrigerant Charge
13.25 Pounds
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
52 3/4 Inches
Product Width
41 3/8 Inches
Product Depth
14 Inches
Product Weight
287 Pounds
Shipping Weight
295 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
PEAD-A42AA7
General Information
Type
Concealed Duct
Product Line
P-Series
Operating Mode Learn More
Heating and Cooling
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
42
Motor Type
Variable-Speed
Configuration Learn More
Single-Zone
Performance
Cooling BTU
42000
Cooling Capacity
42000 BTU
Maximum Air Flow
1483 CFM
Minimum Air Flow
1042 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
3.5 Amps
Recommended Breaker Size
30 Amps
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
9 7/8 Inches
Product Width
55 1/8 Inches
Product Depth
28 7/8 Inches
Product Weight
106 Pounds
Shipping Weight
106 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
