Features
Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center for alternate options.
Specifications
MUZ-HM18NA-U1
General Information
Type
Outdoor Condenser
Product Line
HM-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Heating Capacity
18000 BTU
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
65 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/8 Inches
Product Width
34 1/4 Inches
Product Depth
13 9/16 Inches
Product Weight
81 Pounds
Shipping Weight
86 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Reviews
(7)
Mitsubishi MUZ-HM18NA-U1 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Bob, the eComfort Product Expert
How-To Articles
eComfort Boosts Comfort and Energy Savings at Historic Home
Owning a historic home can be very rewarding. But those rewards come with respo...
How to Pick the Perfect Mini Split Ceiling Cassette Unit
Many of us like it when our heating and cooling equipment is out of sight and o...
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

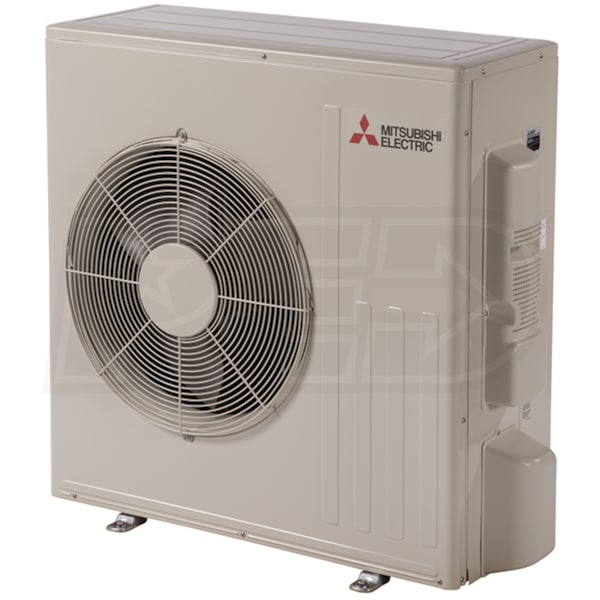

Mitsubishi - 18k BTU - Outdoor Condenser - Single Zone Only
