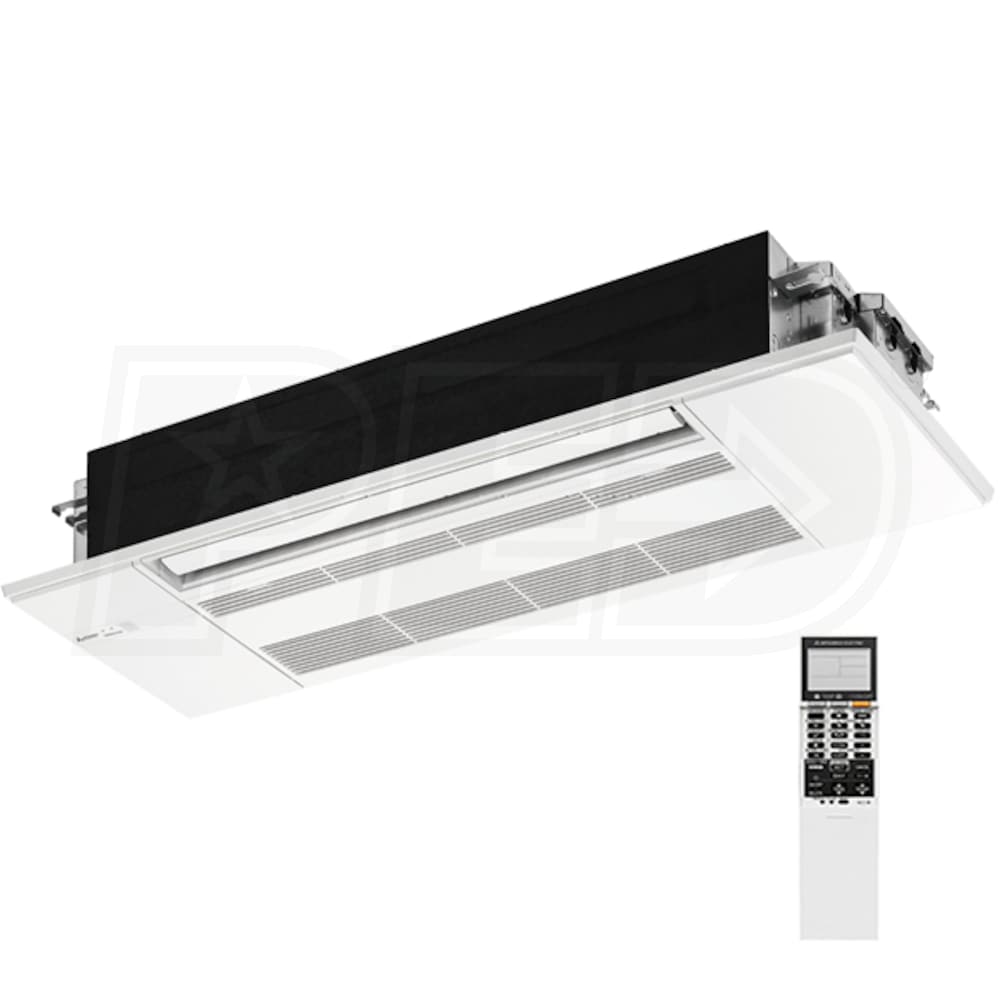

Mitsubishi - 18k BTU - M-Series One-Way Ceiling Cassette with Grille - For Multi or Single-Zone

Model:

MLZ-KP18NA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Mitsubishi - 18k BTU - M-Series One-Way Ceiling Cassette with Grille - For Multi or Single-Zone
Mitsubishi - 18k BTU - M-Series One-Way Ceiling Cassette with Grille - For Multi or Single-Zone
Model: MLZ-KP18NA
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The MLZ-KP18NA is a ceiling cassette indoor unit for use in multi or single-zone systems. The low-profile design is paired with quiet operations that provide comfort without disrupting your space. The only visible portion of the unit is its grille, which clocks in at a slender depth of 15/16". With multiple operating modes, multiple fan speeds, and the ability to fit between standard 16" joists, this unit can accommodate the needs of nearly any room. Whether you are designing a primary heating and cooling system or supplementing an existing one, the MLZ-KP18NA is an excellent addition.
  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Vane Control
  • Optimal air flow can be achieved with the MLZ-KP18NA thanks to the vane control option. This function provides access to an auto mode and a swing mode.
  • Condensate Removal System
  • The MLZ-KP18NA contains an internal drain mechanism capable of lifting condensate 19-11/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Serviceability
  • The MLZ-KP18NA is designed to fit between standard 16" joists and be serviced from below, making installation and maintenance easier than ever.
  • Product Compatible With
  • Mitsubishi MXZ-3C24NA2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-3C30NA2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-4C36NAHZ Mini Split Outdoor Condenser
  • Mitsubishi MXZ-4C36NA2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-5C42NA2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-3C24NAHZ2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-3C30NAHZ2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-5C42NAHZ Mini Split Outdoor Condenser
  • Mitsubishi MXZ-8C48NA Mini Split Outdoor Condenser
  • Mitsubishi MXZ-8C60NA-U1 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-8C48NAHZ Mini Split Outdoor Condenser
  • Product Includes
    • (1) Mitsubishi - 18k BTU - M-Series One-Way Ceiling Cassette without Grille - For Multi or Single-Zone (MLZ-KP18NA)
    • (1) Mitsubishi MLP-444W Ceiling Cassette Grille For Mitsubishi MLZ-KP Mini Split Units (MLP-444W)

Specifications

Product Includes
  • (1) Mitsubishi - 18k BTU - M-Series One-Way Ceiling Cassette without Grille - For Multi or Single-Zone (MLZ-KP18NA)
  • (1) Mitsubishi MLP-444W Ceiling Cassette Grille For Mitsubishi MLZ-KP Mini Split Units (MLP-444W)
MLZ-KP18NA
specs product image PID-82599
Overview
Product Category
Mini Split System Components
Additional Model Numbers

MLZ-KP18NAG, MLZ-KP18NA

General Information
Type
Ceiling Cassette
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Included
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Grille
Included
Required Grille Model
MLP-444W
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
417 CFM
Minimum Air Flow
212 CFM
Minimum Sound Level
26 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 1/2 Inches
Product Width
45 11/16 Inches
Product Depth
15 1/8 Inches
Product Weight
34 Pounds
Shipping Weight
44 Pounds
Grille Depth
15/16 Inch
Grille Width
16 11/16 Inches
Grille Length
47 1/4 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MLZ-KP18NA
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Grille
Not Included
Required Grille Model
MLP-444W
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
417 CFM
Minimum Air Flow
212 CFM
Minimum Sound Level
26 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 5/16 Inches
Product Width
43 3/8 Inches
Product Depth
14 3/16 Inches
Product Weight
34 Pounds
Grille Depth
15/16 Inch
Grille Width
16 11/16 Inches
Grille Length
47 1/4 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MLP-444W
General Information
Type
Grille
Product Line
M-Series
Dimensions
Product Weight
5 Pounds
Grille Depth
15/16 Inch
Grille Width
16 11/16 Inches
Grille Length
47 1/4 Inches
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
