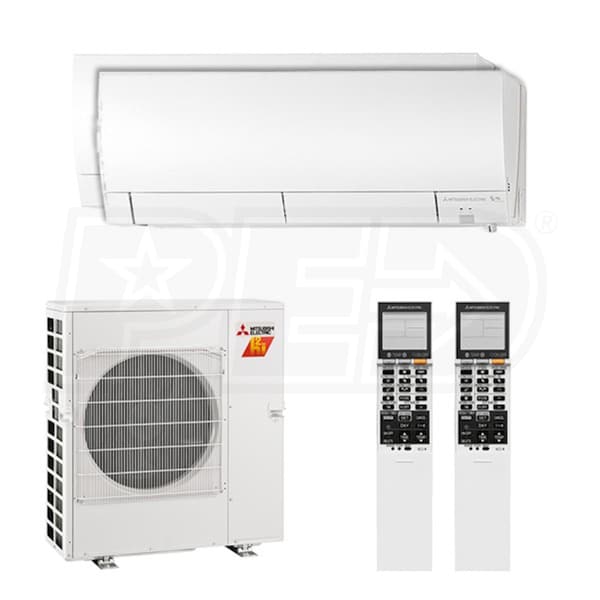

Mitsubishi Wall Mounted 2-Zone H2i System - 20,000 BTU Outdoor - 9k + 9k Indoor - 17.0 SEER

Model:

M2H20H09090000-B

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Mitsubishi Wall Mounted 2-Zone H2i System - 20,000 BTU Outdoor - 9k + 9k Indoor - 17.0 SEER
Mitsubishi Wall Mounted 2-Zone H2i System - 20,000 BTU Outdoor - 9k + 9k Indoor - 17.0 SEER
Model: M2H20H09090000-B
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    With the Mr. Slim series from Mitsubishi Electric you can enjoy ideal levels of comfort in the rooms you use most with Mitsubishi's multiroom system. Each room (zone) operates independently. People in different rooms the kitchen, master bedroom, or living room can With the Mr. Slim series from Mitsubishi Electric you can enjoy temperature settings that make each of them most comfortable. If youre looking for a complete comfort solution for several different rooms, the MXZ multi-room system is the right choice. The system is flexible enough to conform to a particular cooling and heating need and offers numerous different indoor unit combinations. An MXZ multi-room system is an excellent choice for supplementing capacity to a current system, conditioning newly furnished spaces, or new additions and replacing a system within a home. Homeowners can also benefit from lower energy costs year-round while staying comfortable thanks to Mitsubishi Electrics energy-efficient technologies that are a part of every system that we make.
  • H2i Technology
  • Low and negative ambient temperatures don't bother the MXZ-2C20NAHZ2. It is rated for 100% heating capacity at 5 degrees F and continues to provide heating in outdoor conditions as low as -13 degrees F.
  • Integrated Base Pan Heater
  • MXZ-C outdoor condensers have a factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.
  • Precision Temperature Control Technology
  • This outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, these components provide precise temperature control and incredible efficiency.
  • i-see Sensor
  • Each MSZ-FH has an i-see Sensor 3D that monitors its zone for changes in temperature. If an underserved area is detected, an MSZ-FH will temporarily direct airflow to that zone. It also enters energy saving mode if no human heat signatures are detected.
  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying indoor unit fan operation until the heat exchanger has warmed up.
  • Advanced Filtration System
  • With three unique filters inside the MSZ-FH indoor units, the air in your zones is not only being conditioned, but it is also actively being cleaned. These filters remove odors, nanoparticles, and bacteria from re-entering your home.
  • Smart Set
  • Mitsubishi's Smart Set function allows you to save a cooling and heating profile consisting of a temperature, a fan speed, and an airflow direction for each indoor unit. These are easily activated with the Smart Set button on the remote controller.
  • Powerful Mode
  • The powerful setting on the MSZ-FH indoor units makes it easy to get your zones to the perfect temperature quickly. When activated, a unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, an MSZ-FH mini split indoor unit can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When an indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Vane Control
  • Optimal air flow can be achieved with the MSZ-FH units thanks to independent vane control and two vane control options, standard and wide. Auto mode selects the best vane position based on operating mode while swing mode cycles through each vane position.
  • Recommended line set sizes for indoor unit connectivity:
  • MSZ-FH09NA: 1/4" x 3/8" Line Set (Qty 2)
  • Product Includes
    • (1) Mitsubishi - 20k BTU - M-Series H2i Outdoor Condenser - For 2 Zones (MXZ-2C20NAHZ2)
    • (2) Mitsubishi FH-Series 9k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH09NA)
    Product Note
    All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.

Specifications

Product Includes
  • (1) Mitsubishi - 20k BTU - M-Series H2i Outdoor Condenser - For 2 Zones (MXZ-2C20NAHZ2)
  • (2) Mitsubishi FH-Series 9k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH09NA)
M2H20H09090000-B
specs product image PID-56836
General Information
Type
Wall Mounted
Product Line
M-Series
Product Sub-line
Hyper-Heating
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
2
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
9 + 9
Base Pan Heater Included
Yes
Outdoor Unit Size
20000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
SEER Learn More
17.0
EER Learn More
13.5
HSPF Learn More
9.8
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
245 Pounds
Shipping Weight
249 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7451974
MXZ-2C20NAHZ2
General Information
Type
Outdoor Condenser
Product Line
M-Series H2i
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
2
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Base Pan Heater Included
Yes
Performance
Cooling BTU
20000
Maximum Sound Level Learn More
58 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
29 Amps
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
164 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Product Height
41 7/24 Inches
Product Width
37 5/12 Inches
Product Depth
13 Inches
Product Weight
187 Pounds
Shipping Weight
197 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
MSZ-FH09NA
General Information
Type
Wall Mounted
Product Line
FH-Series
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Moisture Removal
0.6 Pints/Hour
Maximum Air Flow
381 CFM
Minimum Air Flow
137 CFM
Minimum Sound Level
20 dB
Maximum Sound Level Learn More
42 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 11/16 Inches
Product Width
36 7/16 Inches
Product Depth
9 3/16 Inches
Product Weight
29 Pounds
Shipping Weight
35 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
5 Years
