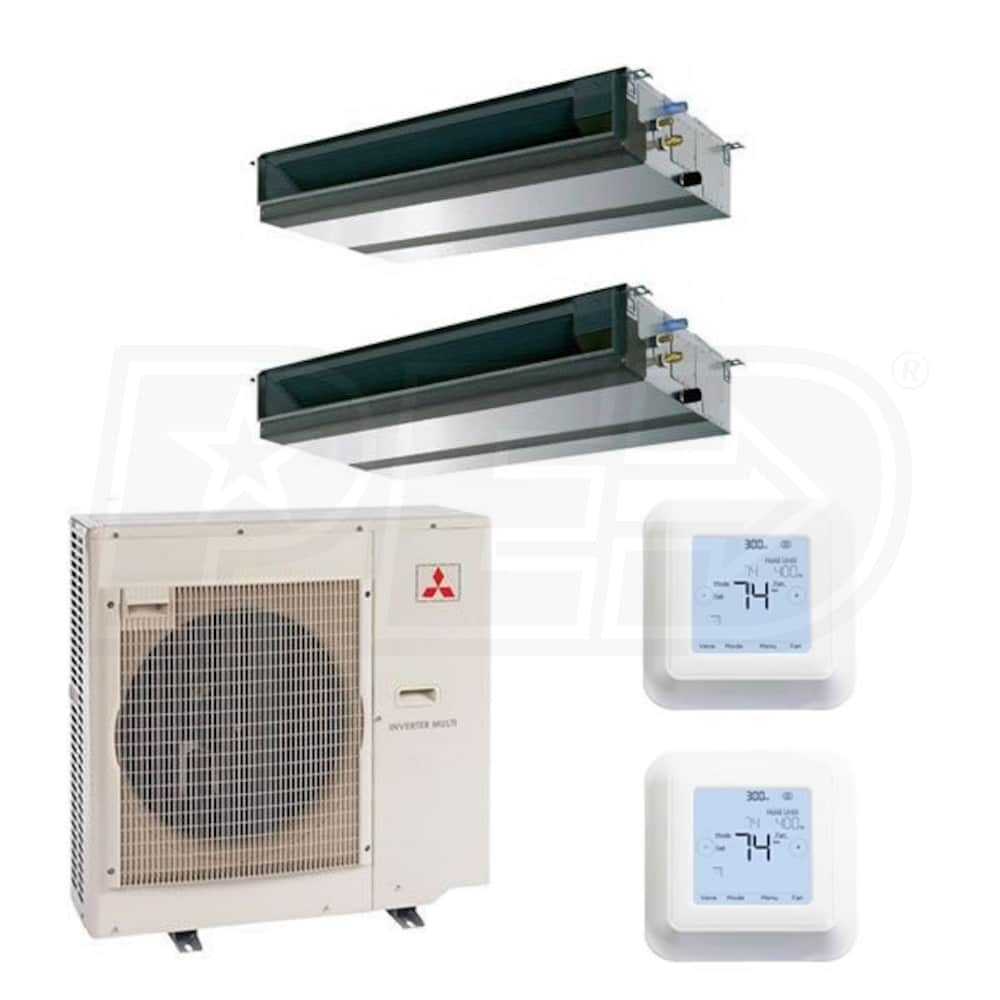

Mitsubishi Concealed Duct 2-Zone System - 20,000 BTU Outdoor - 9k + 9k Indoor - 15.5 SEER

Mitsubishi Concealed Duct 2-Zone System - 20,000 BTU Outdoor - 9k + 9k Indoor - 15.5 SEER
Our Price
Compare Prices
Shipping Info
Model: M2H20D09090000-A
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (4)
Write A Review
$3,887.10

Ships in 2-5 Business Days
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Add-Ons
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 4
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. This is a two zone mini split system designed to give you individual control over the temperature in multiple rooms while taking advantage of existing ductwork. An efficient MXZ-2C20NA2 outdoor condenser, built with advanced technology, is combined with unobtrusive concealed duct SEZ-KD indoor units and two wireless remote controllers for the perfect marriage of convenience and comfort. With the concealed duct units, small air registers are the only evidence that a powerful and efficient mini split system is servicing your rooms. With multiple operating modes and multiple fan speeds, this is a system that fits the needs of nearly any home.
  • Precision Temperature Control Technology
  • The MXZ-2C20NA2 outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.
  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Condensate Removal System
  • The included SEZ-KD compact duct indoor units contain an internal drain mechanism capable of lifting condensate 21-11/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Advanced Remote Controller
  • The MHK1 wireless remote controller kits support dual set point control and multiple scheduling options. The Optimal Start function learns how quickly your zone is cooled and heated to ensure the zone is always the right temperature at the right time.
  • Recommended line set sizes for indoor unit connectivity:
  • SEZ-KD09NA4R1.TH: 1/4" x 3/8" Line Set (Qty 2)
  • Product Includes
    • (1) Mitsubishi - 20k BTU - M-Series Outdoor Condenser - For 2 Zones (MXZ-2C20NA2)
    • (2) Mitsubishi 9,000 BTU Ducted Horizontal Heat Pump Air Handler (SEZ-KD09NA4R1.TH)
    • (2) Mitsubishi RedLINK - Wireless Remote Controller Kit - Programmable - Wall Mounted (MHK2)
    Product Note
    All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Specifications
General Information
Type
Concealed Duct
Product Line
M-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
2
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9 + 9
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
15.5
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.1
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.5
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
230 Pounds
Shipping Weight
234 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
3585566

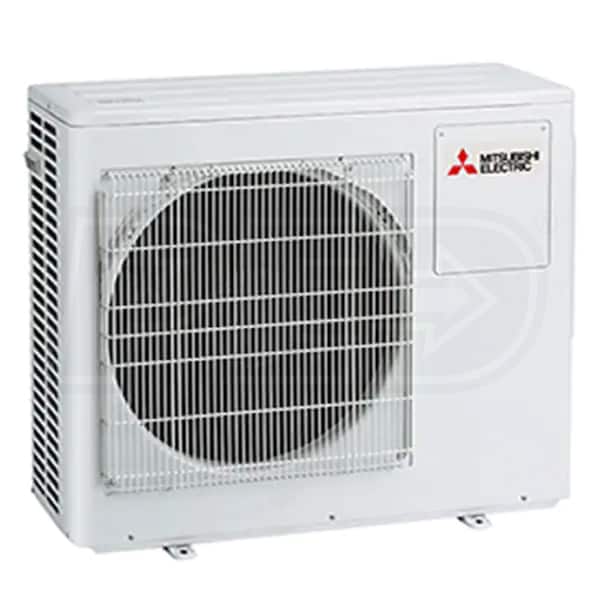

MXZ-2C20NA2 Specifications+
General Information
Type
Outdoor Condenser
Product Line
M-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
2
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
20000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
54 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
17.2 Amps
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
164 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Product Height
27 5/16 Inches
Product Width
33 1/16 Inches
Product Depth
13 Inches
Product Weight
126 Pounds
Shipping Height
33 1/2 Inches
Shipping Width
40 Inches
Shipping Depth
18 1/2 Inches
Shipping Weight
147 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
SEZ-KD09NA4R1 Specifications+
General Information
Type
Concealed Duct
Product Line
M-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
8100 BTU
Moisture Removal
1.5 Pints/Hour
Maximum Air Flow
317 CFM
Minimum Air Flow
194 CFM
Minimum Sound Level
23 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
30 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 7/8 Inches
Product Width
31 1/8 Inches
Product Depth
27 9/16 Inches
Product Weight
52 Pounds
Shipping Weight
62 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MHK2 Specifications+
General Information
Type
Wireless Remote
Product Line
RedLINK
Programmability
Programmable
Power Source
AA Batteries
Interface
Touchscreen
Performance
Minimum Operating Temperature
32 F
Maximum Operating Temperature
120 F
Dimensions
Product Height
4 1/12 Inches
Product Width
4 1/12 Inches
Product Depth
1 1/16 Inches
Features
Features
    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. This is a two zone mini split system designed to give you individual control over the temperature in multiple rooms while taking advantage of existing ductwork. An efficient MXZ-2C20NA2 outdoor condenser, built with advanced technology, is combined with unobtrusive concealed duct SEZ-KD indoor units and two wireless remote controllers for the perfect marriage of convenience and comfort. With the concealed duct units, small air registers are the only evidence that a powerful and efficient mini split system is servicing your rooms. With multiple operating modes and multiple fan speeds, this is a system that fits the needs of nearly any home.
  • Precision Temperature Control Technology
  • The MXZ-2C20NA2 outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.
  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Condensate Removal System
  • The included SEZ-KD compact duct indoor units contain an internal drain mechanism capable of lifting condensate 21-11/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Advanced Remote Controller
  • The MHK1 wireless remote controller kits support dual set point control and multiple scheduling options. The Optimal Start function learns how quickly your zone is cooled and heated to ensure the zone is always the right temperature at the right time.
  • Recommended line set sizes for indoor unit connectivity:
  • SEZ-KD09NA4R1.TH: 1/4" x 3/8" Line Set (Qty 2)
  • Product Includes
    • (1) Mitsubishi - 20k BTU - M-Series Outdoor Condenser - For 2 Zones (MXZ-2C20NA2)
    • (2) Mitsubishi 9,000 BTU Ducted Horizontal Heat Pump Air Handler (SEZ-KD09NA4R1.TH)
    • (2) Mitsubishi RedLINK - Wireless Remote Controller Kit - Programmable - Wall Mounted (MHK2)
    Product Note
    All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
