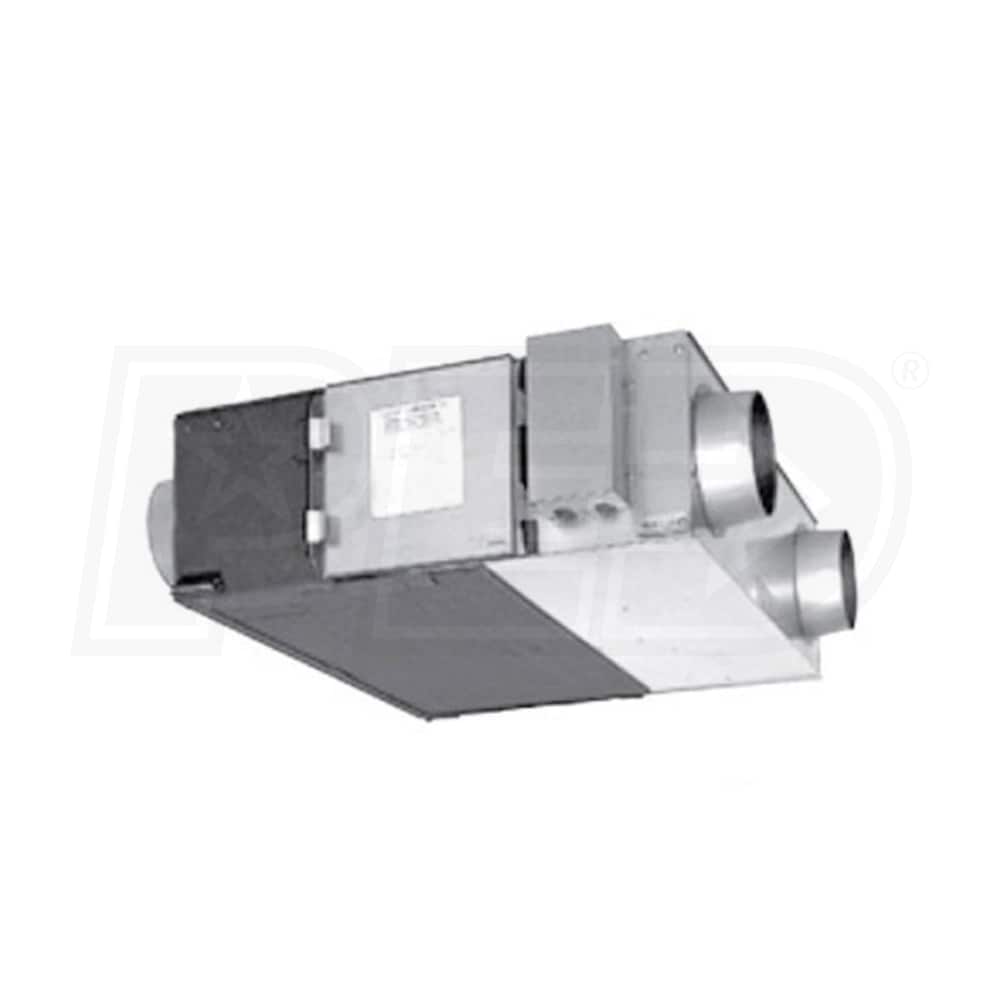

Mitsubishi LGH-F300RVX-E
Mitsubishi LGH-F300RVX-E
Hover to zoom
1 Of 5

Mitsubishi Lossnay - 300 CFM - Energy Recovery Ventilator - Side Ports - 7-9/16" Duct

Model:

LGH-F300RVX-E

Write a Review
$1,822.50
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Tuesday, Apr 20th
Shipping to60601
Shipping Details
  • Lift Gate Service Available - $0.00 Service Charge Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
$304 / Month
Suggested monthly payments with 6 month financing.
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Mitsubishi Lossnay - 300 CFM - Energy Recovery Ventilator - Side Ports - 7-9/16
Mitsubishi Lossnay - 300 CFM - Energy Recovery Ventilator - Side Ports - 7-9/16" Duct
Model: LGH-F300RVX-E
$1,822.50
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    The LGH-F300RVX-E-E1 is part of Mitsubishi's Lossnay line of energy recovery ventilators. In applications where air is the heat transfer medium, a Lossnay unit provides a number of benefits. The primary function of the LGH-F300RVX-E is to improve the ventilation of your heating and cooling system while extracting energy from your system's exhaust and transferring it to the incoming air. This not only cleans your air, it also minimizes the impact on your heating and cooling system. Salvaging this energy that would normally be wasted has the added benefit of transferring moisture, meaning that the Lossnay unit also contributes humidity control to your system. Finally, the LGH-F300RVX-E includes washable MERV 6 filters that keep the core clean by capturing outside pollutants.

Specifications

LGH-F300RVX-E
General Information
Type
ERV
Product Line
Lossnay
Ports Quantity
4
Port Location
Side
Housing Material
Galvanized Steel
Core Material
Lossnay Core
Performance
Maximum Air Flow
300 CFM
Minimum Air Flow
75 CFM
Total Recovery Efficiency
79 %
Minimum Sound Level
18 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
34 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
7.5625 Inches
Product Height
12 3/8 Inches
Product Width
40 Inches
Product Depth
34 15/16 Inches
Product Weight
75 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
