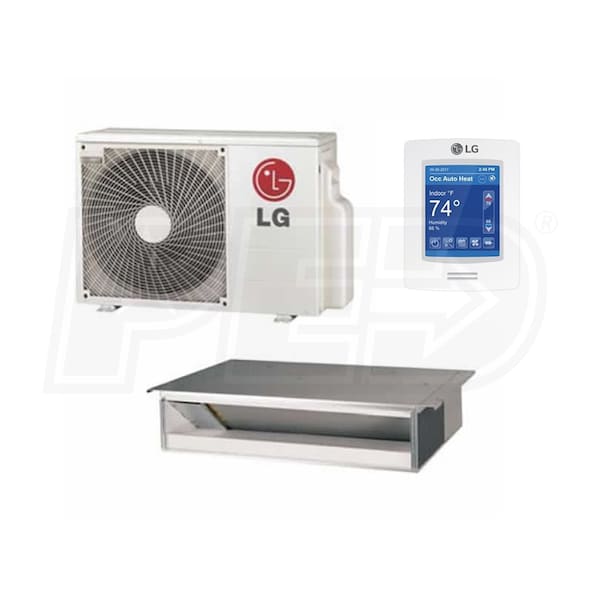

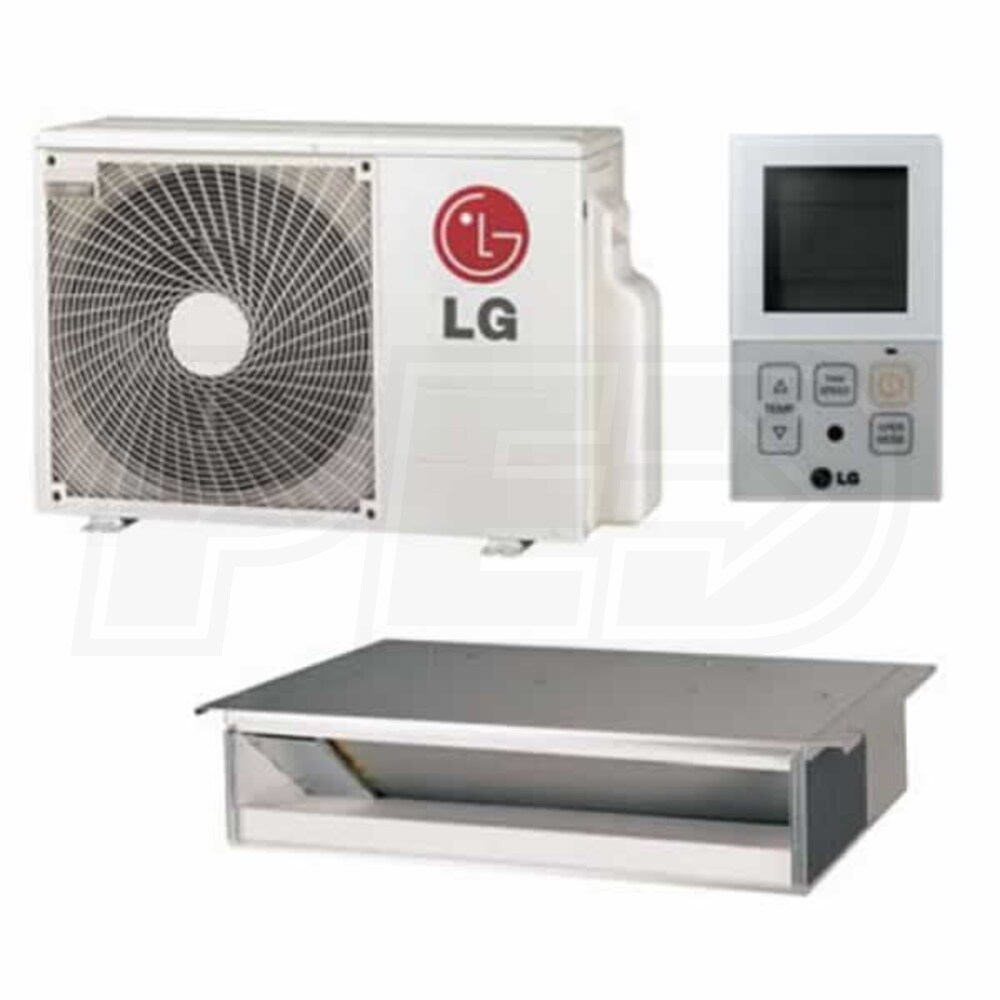

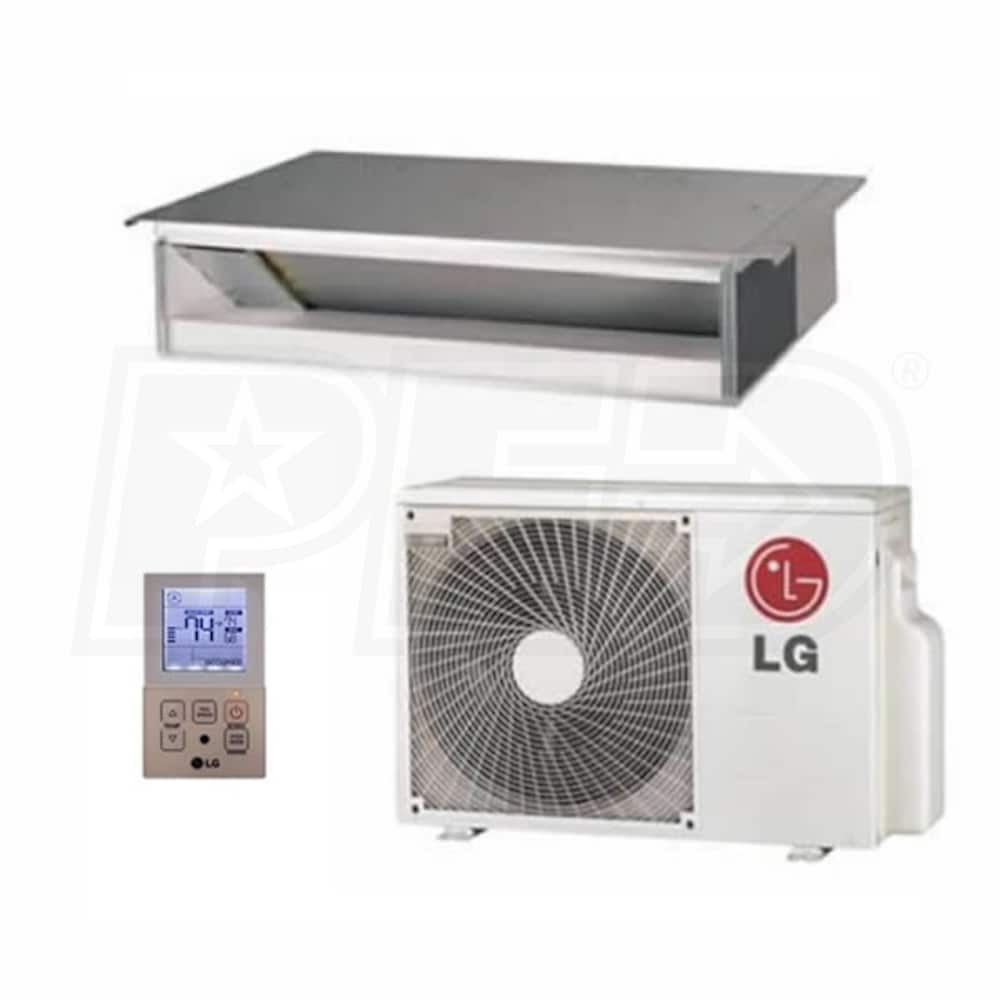

LG - 9k BTU Cooling + Heating - Low-Static Concealed Duct Air Conditioning System - 18.5 SEER
Model: LD097HV4
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Inverter Technology
- LG's ductless heat pump systems are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser carefully regulate the refrigerant flow and reduce energy consumption.
- Gold Fin Protection
- To ensure the reliability and longevity of the LUU097HV4's heat exchanger, LG employs a Gold Fin coating that protects against corrosion and improves durability.
- Quiet Design
- The LDN097HV4 can operate at volumes as low as 23 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
- Automated Operation
- Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
- Condensate Protection
- Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift and automatic overflow shutoff protects the LDN097HV4 through reliable, effective condensate removal.
- Sleep Mode
- With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
- Improved Air Quality
- The LDN097HV4 features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
- Hot Start
- When the hot start function is enabled, the LDN097HV4's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
- Dehumidify
- LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. LG's Concealed Duct systems, such as this LD097HV4, have several advantages over wall mounted systems. The LDN097HV4 is a mini split indoor unit designed for installation is short-run ducting with low static pressures. If you're looking for a low-profile alternative to wall mounted ductless heat pump systems, LG's Low-Static Concealed Duct units are a great choice.
Product Includes
Product Note
This product requires the following accessories for installation:
Specifications
General Information
Type
Concealed Duct
Product Sub-line
Low-Static Ducted
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Outdoor Unit Size
9000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling Capacity
9000 BTU
Heating Capacity
15000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.5
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.7
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.3
Cooling Power Input
0.71 Watts
Heating Power Input
1.43 Watts
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11.9 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Weight
121 Pounds
Shipping Weight
135 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8931561
LUU097HV Specifications+
LDN097HV4 Specifications+
PREMTBVC1 Specifications+
PZCWRC1 Specifications+
Features
Features
- Inverter Technology
- LG's ductless heat pump systems are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser carefully regulate the refrigerant flow and reduce energy consumption.
- Gold Fin Protection
- To ensure the reliability and longevity of the LUU097HV4's heat exchanger, LG employs a Gold Fin coating that protects against corrosion and improves durability.
- Quiet Design
- The LDN097HV4 can operate at volumes as low as 23 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
- Automated Operation
- Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
- Condensate Protection
- Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift and automatic overflow shutoff protects the LDN097HV4 through reliable, effective condensate removal.
- Sleep Mode
- With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
- Improved Air Quality
- The LDN097HV4 features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
- Hot Start
- When the hot start function is enabled, the LDN097HV4's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
- Dehumidify
- LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. LG's Concealed Duct systems, such as this LD097HV4, have several advantages over wall mounted systems. The LDN097HV4 is a mini split indoor unit designed for installation is short-run ducting with low static pressures. If you're looking for a low-profile alternative to wall mounted ductless heat pump systems, LG's Low-Static Concealed Duct units are a great choice.
Product Includes
Product Note
This product requires the following accessories for installation:
Specifications
General Information
Type
Concealed Duct
Product Sub-line
Low-Static Ducted
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Outdoor Unit Size
9000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling Capacity
9000 BTU
Heating Capacity
15000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.5
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.7
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.3
Cooling Power Input
0.71 Watts
Heating Power Input
1.43 Watts
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11.9 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Weight
121 Pounds
Shipping Weight
135 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8931561
LUU097HV Specifications+
LDN097HV4 Specifications+
PREMTBVC1 Specifications+
PZCWRC1 Specifications+
Product Specs
+−
Specifications
General Information
Type
Concealed Duct
Product Sub-line
Low-Static Ducted
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Outdoor Unit Size
9000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling Capacity
9000 BTU
Heating Capacity
15000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.5
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.7
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.3
Cooling Power Input
0.71 Watts
Heating Power Input
1.43 Watts
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11.9 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Weight
121 Pounds
Shipping Weight
135 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8931561
LUU097HV Specifications+
LDN097HV4 Specifications+
PREMTBVC1 Specifications+
PZCWRC1 Specifications+
