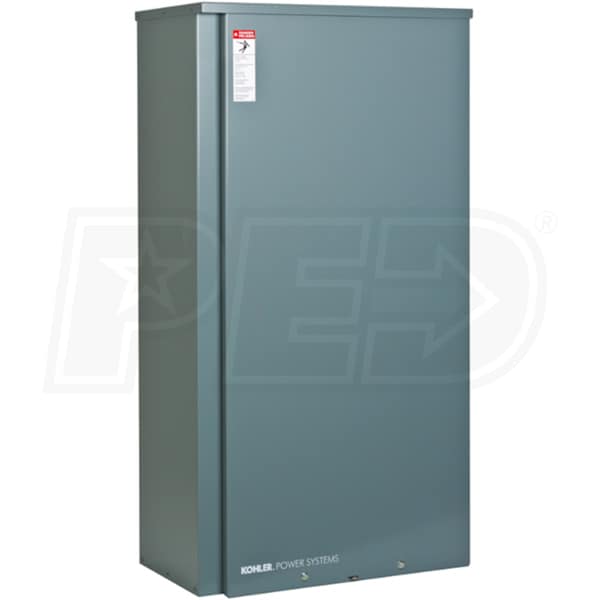

Kohler RXT Series 400-Amp Outdoor Automatic Transfer Switch (Service Disconnect)
Model:
RXT-JFNC-400ASEQS3
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
4
Model: GM78529-KP1-QS
$125.00
Factory-Direct
Model: GM92001-KP1-QS
$130.00
Only 4 In-Stock
Model: GM79141-KP3-QS
$309.00
Only 1 In-Stock
Model: GM81529-KP1-QS
$297.00
Factory-Direct
Features
- Kohler RXT Series 400-Amp Automatic Transfer Switch
- Only compatible with Kohler generators with RDC2/DC2 controllers
- Service Entrance Rated
- Includes disconnect circuit breakers on both sources
- Corrosion-Resistant NEMA 3R Aluminum Enclosure
- Approved for indoor or outdoor installations
- Switch can be padlocked for additional safety
- Standard Features
- Allows utility voltage display on RDC2/DC2 controller
- Interface board for connection to the RDC2/DC2 controller
- Double throw inherently interlocked design
- Combined Interface / Load Management Board
- Built-In Load Shed - Manage (2) HVAC loads
- Manage up to (4) Non-Essential loads***
- Added Safety
- Contractor manually operable for maintenance purposes
- Rated at 400-Amps @ 240-Volts
- ***Requires PRM (Sold Separately)
- 5-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
RXT-JFNC-400ASEQS3

General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
101 Pounds
Consumer Warranty
5 Years
Product Depth
12.9 Inches
Product Width
22 Inches
Product Height
42.3 Inches
UPC
650531125262
Additional Model Numbers
RXT-JFNC-0400ASE, RXT-JFNC-400ASEQS3
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Reviews
(2)
Kohler RXT-JFNC-400ASEQS3 Reviews & Ratings

Good ATS But Needs Better Packaging
By Adam B
South Carolina
Purchased 01/31/2025 |
Review Posted 04/21/2025
The ATS is like most other ATS's, it transfers power sources...They do need to work on better packaging on the units as one of ours the top was not packed very well. The damage wasn't visible from the outside, but the paint was completely worn off the top side back corner of the ATS.
Was this review helpful?
Rating Breakdown
4/5
2/5
4/5
2/5
Cons:
Expensive

Wiring Of The Kohler RXT Transfer Switch
By Jim M.
Hamilton, New Jersey
Purchased 09/06/2013 |
Review Posted 10/21/2013
For a 400 amp rated auto transfer switch, I was suprised that the main feeder lugs were so small. I had to replace the large wires from the meter to the transfer switch with smaller parallel service conductors which is not something that I anticipated on the job. Other wise the transfer switch was an easy installation and works well
Jim M. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Durable, Easy To Use, Easy To Store
