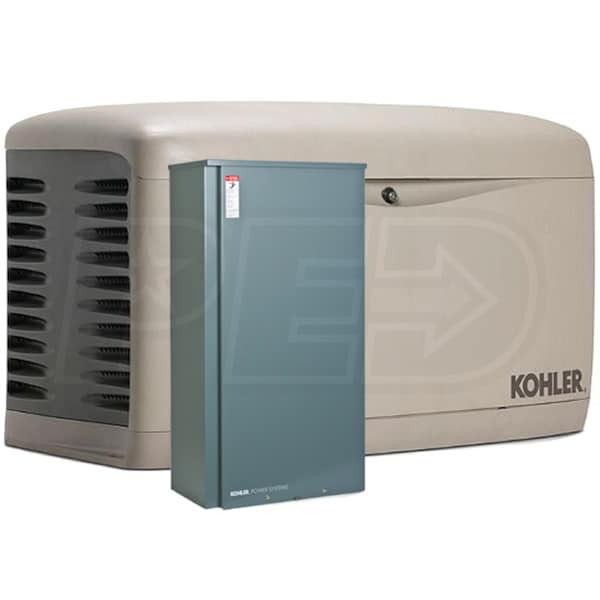

Kohler 20RESCL-200SELS 20kW Composite Standby Generator System (200A Service Disc. w/ Load Shedding)

Model:

20RESCL-200SELS

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Kohler 20RESCL-200SELS 20kW Composite Standby Generator System (200A Service Disc. w/ Load Shedding)
Kohler 20RESCL-200SELS 20kW Composite Standby Generator System (200A Service Disc. w/ Load Shedding)
Model: 20RESCL-200SELS
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Kohler 20RESCL Air-Cooled Standby Generator System
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • Premium 5-Year / 2000 Hour Limited Warranty
  • Backed by Kohler's extraordinary reliability & performance
  • RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch
  • Mounts between meter and main service panel
  • Built-In Load Shed - Manage (2) HVAC + (4) Non-Essential loads***
  • Fast Response Time & PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Kohler generators restore power in as little as 10 seconds
  • Cleaner Power for Sensitive Electronics
  • Protects sophisticated electronics with low distortion (THD)
  • RDC2 Controller
  • Provides advanced control, system monitoring & diagnostics
  • 2.5-Amp 120V battery charger - eliminates separate 6-Amp charger
  • 2-Line Backlit LCD Digital Display & Real-Time Clock To Set Weekly Exercise
  • No More Codes - Easy to read local data access in all lighting conditions
  • Includes OnCue Plus Remote Monitoring
  • Real-time power status and the ability to manage your entire backup system
  • Kohler Command PRO® OHV Engine
  • Runs on clean-burning Natural Gas or LPG
  • Hydraulic valve lifters eliminate routine valve adjustments
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx 69 dB(A) @ 23 ft.
  • Exclusive 100% Corrosion-Proof Composite Enclosure* & Polymer Base
  • Will not rust - even in harsh seaside environments
  • ^^^Not Compatible For Off-Grid Applications^^^^
  • Approved for stationary standby applications in locations served by a reliable utility source
  • *Note - Must Be Installed At Least 5' From Structure
  • ***Requires PRM (Sold Separately)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

20RESCL-200SELS
specs product image PID-66479
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
500 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
UPC
650531162557
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 Run (64 Test) dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (500 CCA)
Enclosure
Composite
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
