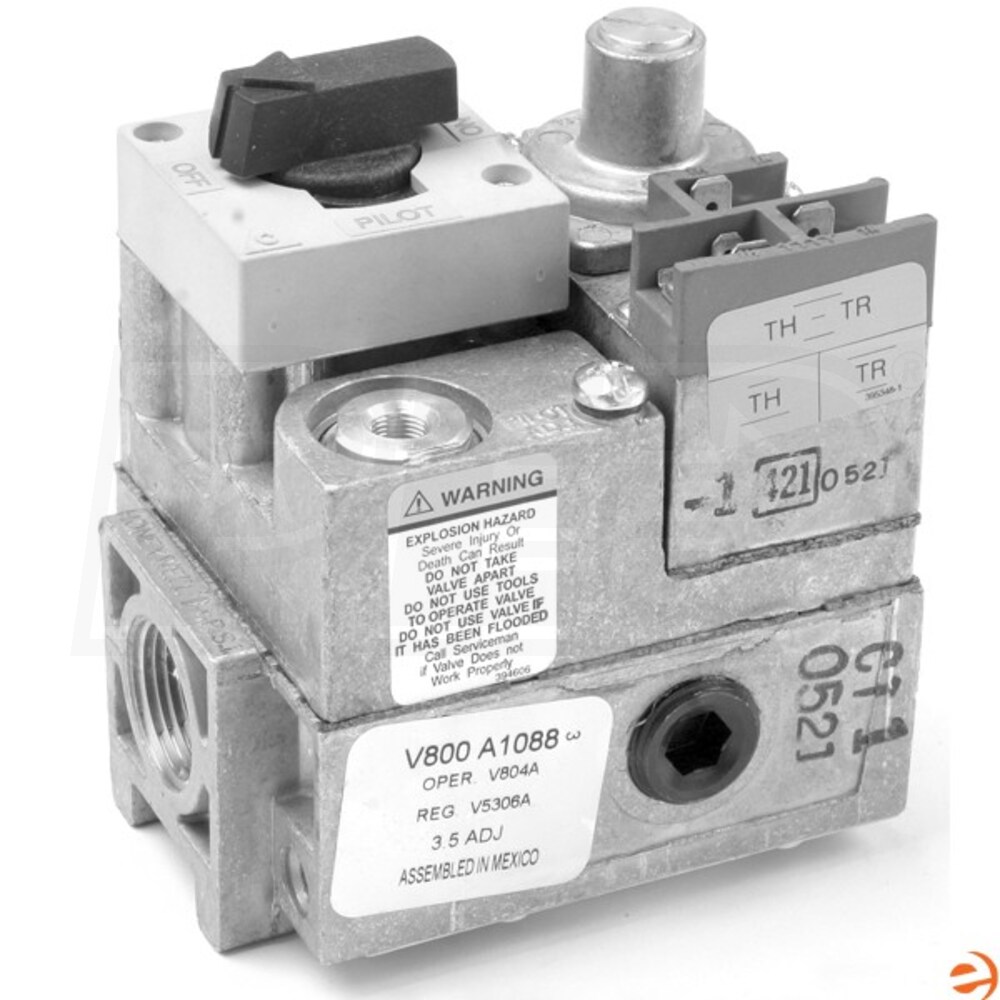

Honeywell Low Voltage Combination Gas Control, NG, Step Opening - 3/4" In x 3/4" Out
Honeywell Low Voltage Combination Gas Control, NG, Step Opening - 3/4" In x 3/4" Out
+
Share This Product
-
Product Description
-
Reviews
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Complete Safety Shutoff on Pilot Flame Failure
- Easy installation
- LITE-RITE (OFF-PILOT-ON) lighting sequence
- Manual Gas Valve
- Safety Shutoff
- Single millivoltage operator
- Pressure Regulator
- Pilot Gas Filter and Flow Adjustment
- Pressure Tapping
- Thermocouple Connector
- Parts: 1 Year
Honeywell Low Voltage Combination Gas Control, NG, Step Opening - 3/4" In x 3/4" Out
The Honeywell V800C1052 Low Voltage Combination Gas Control is a great component of gas fired standing pilot appliances. Designed for 30mV thermocouples, the Honeywell V800C1052 Low Voltage Combination Gas Control is easy to install, adjust and service as they are all accessible from the top of unit.
Honeywell V800C1052 Low Voltage Combination Gas Control Features:
Honeywell V800C1052 Low Voltage Combination Gas Control Includes:
Honeywell V800C1052 Low Voltage Combination Gas Control Warranty:
Specifications
General Information
Product Line
V800
Gas Type
Natural Gas
Opening Characteristic
Step Opening
Ignition Type
Standing Pilot
Gas Conversion Kit
Not Convertible
UPC
085267109406
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Height
4 3/4 Inches
Product Width
3 3/16 Inches
Product Length
4 1/16 Inches
Product Weight
3.15 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
- Complete Safety Shutoff on Pilot Flame Failure
- Easy installation
- LITE-RITE (OFF-PILOT-ON) lighting sequence
- Manual Gas Valve
- Safety Shutoff
- Single millivoltage operator
- Pressure Regulator
- Pilot Gas Filter and Flow Adjustment
- Pressure Tapping
- Thermocouple Connector
- Parts: 1 Year
Honeywell Low Voltage Combination Gas Control, NG, Step Opening - 3/4" In x 3/4" Out
The Honeywell V800C1052 Low Voltage Combination Gas Control is a great component of gas fired standing pilot appliances. Designed for 30mV thermocouples, the Honeywell V800C1052 Low Voltage Combination Gas Control is easy to install, adjust and service as they are all accessible from the top of unit.
Honeywell V800C1052 Low Voltage Combination Gas Control Features:
Honeywell V800C1052 Low Voltage Combination Gas Control Includes:
Honeywell V800C1052 Low Voltage Combination Gas Control Warranty:
Specifications
General Information
Product Line
V800
Gas Type
Natural Gas
Opening Characteristic
Step Opening
Ignition Type
Standing Pilot
Gas Conversion Kit
Not Convertible
UPC
085267109406
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Height
4 3/4 Inches
Product Width
3 3/16 Inches
Product Length
4 1/16 Inches
Product Weight
3.15 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
