Honeywell Line Voltage Zone Valve, Sweat Connection, 1/2" Pipe
Honeywell Line Voltage Zone Valve, Sweat Connection, 1/2" Pipe
+
Share This Product
-
Product Description
-
Reviews
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- May be installed without disassembling the valve
- Compact construction for easy installation
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
- Motor may be replaced without removing the valve body or draining the system
- Suitable for heating and cooling applications
- Parts: 1 Year
Honeywell Line Voltage Zone Valve, Sweat Connection, 1/2" Pipe

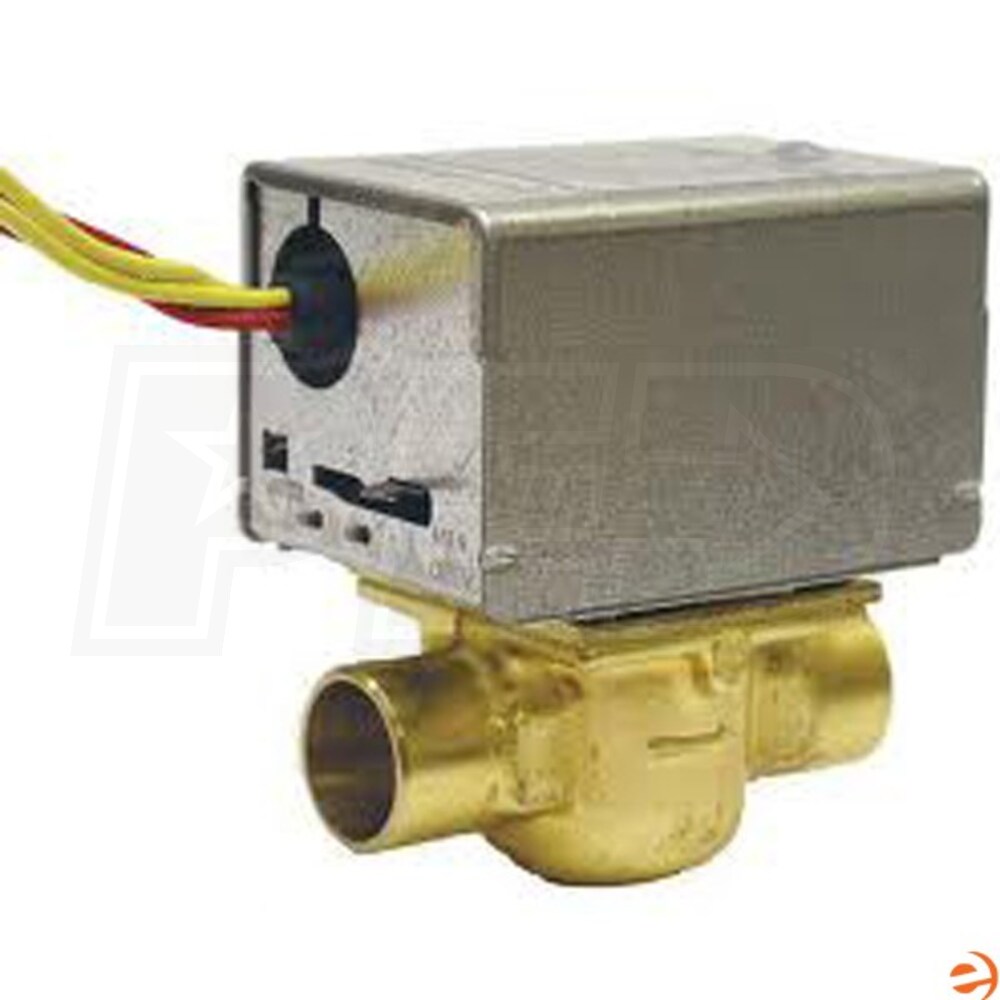

The Honeywell V4043B1059 Line Voltage Zone Valve consists of an actuator motor and valve assembly for controlling the flow of hot or chilled water. The Honeywell V4043B1059 Line Voltage Zone Valve has a Cv of 3.5. It has a connection size of 0.5 inches and is a Sweat connection.
Honeywell V4043B1059 Line Voltage Zone Valve Features:
Honeywell V4043B1059 Line Voltage Zone Valve Warranty:
Specifications
General Information
Product Line
V4043
Valve Type
Zone
Connection Type
Sweat
Body Pattern
Two-way, Straight -Through
Maximum Differential Pressure Range
20 PSI
UPC
085267103695
Performance
CV Value
3.5
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
50/60 Hz
Dimensions
Connection Size
1/2 Inch
Product Height
3 9/16 Inches
Product Width
2 3/4 Inches
Product Length
3 3/4 Inches
Product Weight
2.15 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
- May be installed without disassembling the valve
- Compact construction for easy installation
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
- Motor may be replaced without removing the valve body or draining the system
- Suitable for heating and cooling applications
- Parts: 1 Year
Honeywell Line Voltage Zone Valve, Sweat Connection, 1/2" Pipe
The Honeywell V4043B1059 Line Voltage Zone Valve consists of an actuator motor and valve assembly for controlling the flow of hot or chilled water. The Honeywell V4043B1059 Line Voltage Zone Valve has a Cv of 3.5. It has a connection size of 0.5 inches and is a Sweat connection.
Honeywell V4043B1059 Line Voltage Zone Valve Features:
Honeywell V4043B1059 Line Voltage Zone Valve Warranty:
Specifications
General Information
Product Line
V4043
Valve Type
Zone
Connection Type
Sweat
Body Pattern
Two-way, Straight -Through
Maximum Differential Pressure Range
20 PSI
UPC
085267103695
Performance
CV Value
3.5
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
50/60 Hz
Dimensions
Connection Size
1/2 Inch
Product Height
3 9/16 Inches
Product Width
2 3/4 Inches
Product Length
3 3/4 Inches
Product Weight
2.15 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
