Honeywell High Capacity Thermostatic Radiator Valve, 4.6 Cv, Horizontal Angle Body, 1/2" Threaded, 127,000 BTU

Model:

V110F1002

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Honeywell High Capacity Thermostatic Radiator Valve, 4.6 Cv, Horizontal Angle Body, 1/2
Honeywell High Capacity Thermostatic Radiator Valve, 4.6 Cv, Horizontal Angle Body, 1/2" Threaded, 127,000 BTU
Model: V110F1002
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Honeywell High Capacity Thermostatic Radiator Valve, 4.6 Cv, Horizontal Angle Body, 1/2" Threaded, 127,000 BTU

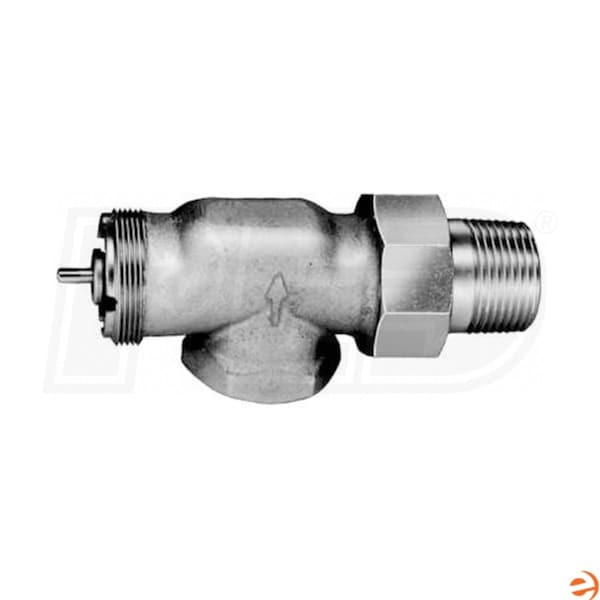

    The Honeywell V110F1002 High Capacity Thermostatic Radiator Valve provides precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements. The Honeywell V110F1002 High Capacity Thermostatic Radiator Valve is a Horizontal Angle body pattern valve with a 0.5 inch NPT connection. It has a Cv of 4.6.

    Honeywell V110F1002 High Capacity Thermostatic Radiator Valve Features:
    • Designed with the higher capacity normally required by North American heating systems
    • Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
    • Nickel-plated bronze casted body with working parts in cartridge insert for ease of service
    • All working parts are replaceable using service tool (MT100C1011)
    • Valves normally open without control mounted
    • Valves may be used with T104 Thermostat Actuators
    • Meets ASHRAE Standard 102-1989
    Honeywell V110F1002 High Capacity Thermostatic Radiator Valve Warranty:
    • Parts: 1 Year

Specifications

V110F1002
specs product image PID-34383
General Information
Product Line
V110
Valve Type
Thermostatic
Connection Type
NPT
Body Pattern
Horizontal Angle
UPC
085267103275
Performance
CV Value
4.6
Dimensions
Connection Size
1/2 Inch
Product Weight
0.9 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
