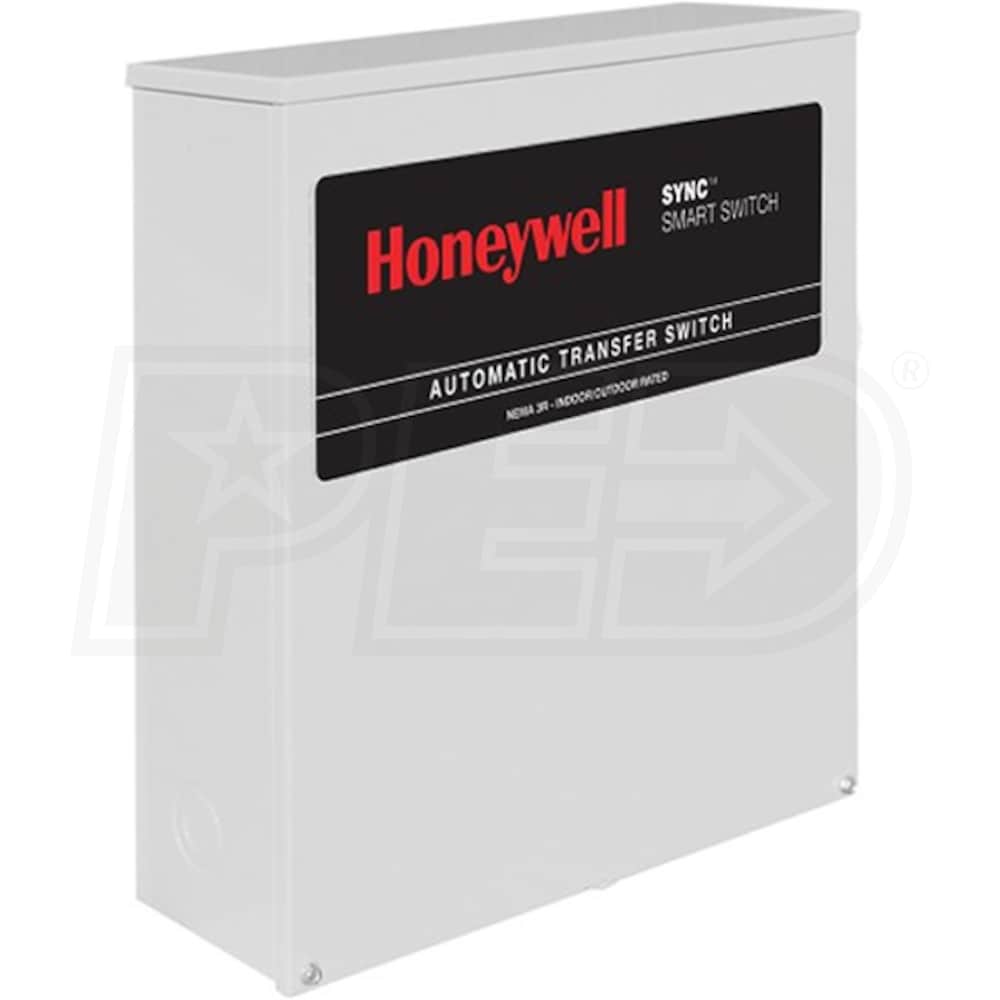

Honeywell™ 100-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management
Model:
RXSK100A3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Honeywell™ 100-Amp Smart Automatic Transfer Switch
- Designed speficially for Honeywell™ SYNC™ Controllers
- Designed For Standard Installation*
- Requires a sub-panel for overload protection
- DPM Technology So Your Generator Works Smarter
- Cycles power on and off as needed for different appliances
- Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
- Air conditioners, water heaters, well pumps, etc. (24 VAC controlled)
- Up To (8) Smart Management Modules (SMM) (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads & lock-out non-essential loads
- NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable & pad-lockable weather-proof enclosure
- Electrostatically applied and baked powder coating paint (Gray)
- Tech Spec Summary: Only For Use w/ Honeywell Generators
- Load Transition Type: Open Transition
- Withstand Rating: 10,000 Amps --- Lug Range: 1/0 - #14
- Best-In-Class 5-Year Limited Warranty - UL Listed
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RXSK100A3
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
24000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
20 Inches
Product Width
14.5 Inches
Product Height
7 Inches
