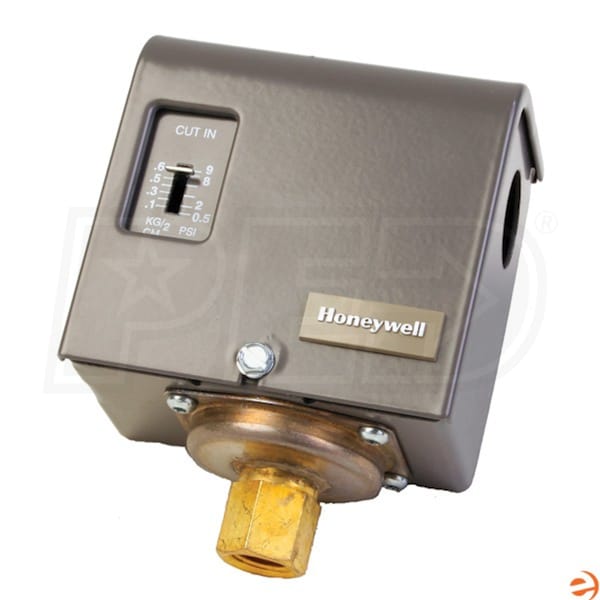

Honeywell Pressuretrol Controller For Suspension Type Unit Heaters, 0.5 to 9 PSI

Honeywell Pressuretrol Controller For Suspension Type Unit Heaters, 0.5 to 9 PSI
Our Price
Compare Prices
Shipping Info
Model: PA404B1023
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    Honeywell Pressuretrol Controller For Suspension Type Unit Heaters, 0.5 to 9 PSI

    The Honeywell PA404B1023 Pressuretrol Controller For Suspension Type Unit Heaters is a series 40 pressuretrol controller for use in 24, 10, 240 or 277 volt control circuits or in self powered (millivoltage) applications.

    Honeywell PA404B1023 Pressuretrol Controller For Suspension Type Unit Heaters Features:
    • Pressure actuated high limit, safety control for steam heating boilers it breaks an electrical circuit to shut down the burner if steam pressure rises above a safe level
    • Used with suspension-type unit heaters to make the fan circuit when a pressure rise indicates the presence of steam
    • Each model contains an SPST MICRO SWITCH snap-acting switch
    • Sensitive pressure-actuated diaphragm expands or contracts with pressure variations, moving a lever mechanism which operates the snap switch
    • A screw on top of the case allows set point adjustment without removing the cover
    • Differential is adjusted by means of a dial located inside the case
    Honeywell PA404B1023 Pressuretrol Controller For Suspension Type Unit Heaters Warranty:
    • Parts: 1 Year
Specifications
General Information
Product Line
PA404
UPC
085267064316
Performance
Minimum Operating Pressure
0.5 PSI
Maximum Operating Pressure
9 PSI
Dimensions
Product Height
4.47 Inches
Product Width
3.38 Inches
Product Length
2.25 Inches
Product Weight
1.1 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features

    Honeywell Pressuretrol Controller For Suspension Type Unit Heaters, 0.5 to 9 PSI

    The Honeywell PA404B1023 Pressuretrol Controller For Suspension Type Unit Heaters is a series 40 pressuretrol controller for use in 24, 10, 240 or 277 volt control circuits or in self powered (millivoltage) applications.

    Honeywell PA404B1023 Pressuretrol Controller For Suspension Type Unit Heaters Features:
    • Pressure actuated high limit, safety control for steam heating boilers it breaks an electrical circuit to shut down the burner if steam pressure rises above a safe level
    • Used with suspension-type unit heaters to make the fan circuit when a pressure rise indicates the presence of steam
    • Each model contains an SPST MICRO SWITCH snap-acting switch
    • Sensitive pressure-actuated diaphragm expands or contracts with pressure variations, moving a lever mechanism which operates the snap switch
    • A screw on top of the case allows set point adjustment without removing the cover
    • Differential is adjusted by means of a dial located inside the case
    Honeywell PA404B1023 Pressuretrol Controller For Suspension Type Unit Heaters Warranty:
    • Parts: 1 Year
Specifications
General Information
Product Line
PA404
UPC
085267064316
Performance
Minimum Operating Pressure
0.5 PSI
Maximum Operating Pressure
9 PSI
Dimensions
Product Height
4.47 Inches
Product Width
3.38 Inches
Product Length
2.25 Inches
Product Weight
1.1 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Product Line
PA404
UPC
085267064316
Performance
Minimum Operating Pressure
0.5 PSI
Maximum Operating Pressure
9 PSI
Dimensions
Product Height
4.47 Inches
Product Width
3.38 Inches
Product Length
2.25 Inches
Product Weight
1.1 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
