Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- 2017 - Honeywell 22kW (LPG) / 19.5kW (NG) Air-Cooled Standby Generator
- Operates on clean burning Natural Gas or LP (Vapor)
- 5-Year Premium Limited Warranty - 24/7•365 Customer Support
- Have your questions answers when it's convenient for you
- Requires Honeywell Automatic Transfer Switch (Sold Separately)
- Provides fully automatic operation & total system compatibility
- PrecisionPower™ Electrical Technology - Less Than 5% THD
- Utility quality power that won't harm electronics & micro-chip based appliances
- State-Of-The-Art Power Maximizing Regulation System
- Optimized for fast response time to varying loads & +/- 1% Digital Voltage Reg.
- SYNC™ 2.0 Generator Controller w/ 2-Line LCD Screen
- Easily view logs of history, maintenance and events
- Includes Mobile Link™ Wi-Fi Remote Monitoring*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection and wireless router
- 999cc Generac OHVI G-Force Engine
- Specifically designed for the demanding environment standby generators endure
- Full pressure lubrication system w/ 2 year oil change interval
- Aluminum Enclosure w/ Rhino Coat™ Finish
- Withstands winds up to 150 mph & provides protection from the elements
- WhisperCheck™ Self-Test Mode
- Lower RPM test mode for 5 or 12 mins.; Runs quieter and lower fuel consumption
- Flexible Installation Options - *Check Local Building Codes
- Allows for installation as close as 18" to the home*
- Direct-to-dirt Composite Mounting Pad, eliminates the need for a gravel base
- Engineered & Built In The USA*
- *Built in the USA using domestic and foreign parts
- Additional Features:
- Includes Base Fascia & 1' Flex Fuel Line Connector
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
7065
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
466 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48.5 Inches
Product Width
25.5 Inches
Product Height
28.6 Inches
UPC
696471070651
Additional Model Numbers
70652, 7065
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
228 ft³/hr
NG Fuel Consumption @ 100% Load
327 ft³/hr
LP Fuel Consumption @ 50% Load
2.53 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
91.6 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Transfer Switch
Automatic (Not Included)
Battery
Not Included (540 CCA)
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Reviews
Honeywell 7065 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(2)
Product Questions
Answered by Jared, the Generator Expert
Is this a Generac Guardian 22 kw generator with a Honeywell label? If so, is it compatible with a Generac 200-amp transfer switch?
jim
from California
September 28, 2020
Is this better than a Generac or Cummins?
A.
from New Jersey
September 25, 2020
How-To Articles
Types of Generators for Your Home
Most people tend to think of their home as a castle and as homeowners, it's up...
How to Buy a Standby Generator
No one likes power outages. All it takes is one to ruin your family's plans. &n...
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

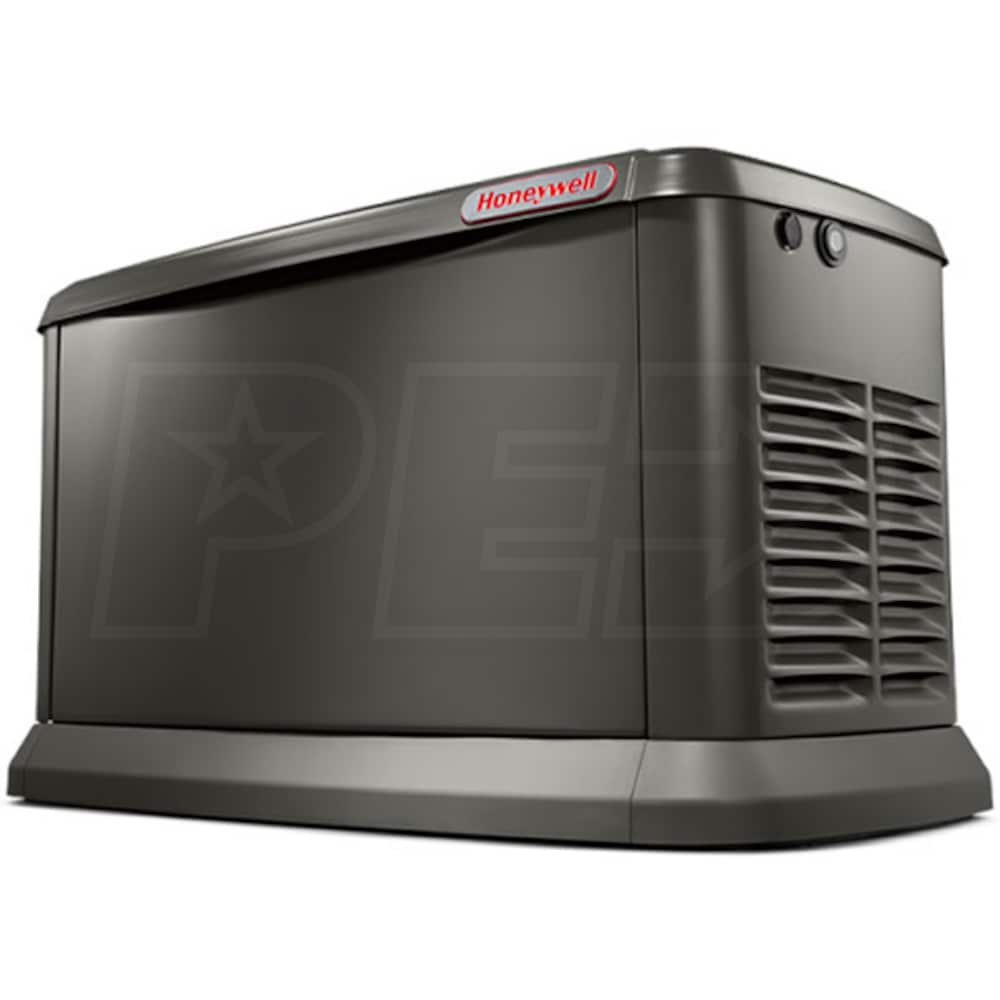

Honeywell™ 22 kW Air-Cooled Aluminum Home Standby Generator w/ Wi-Fi
