Product Description
+−
Features
Features

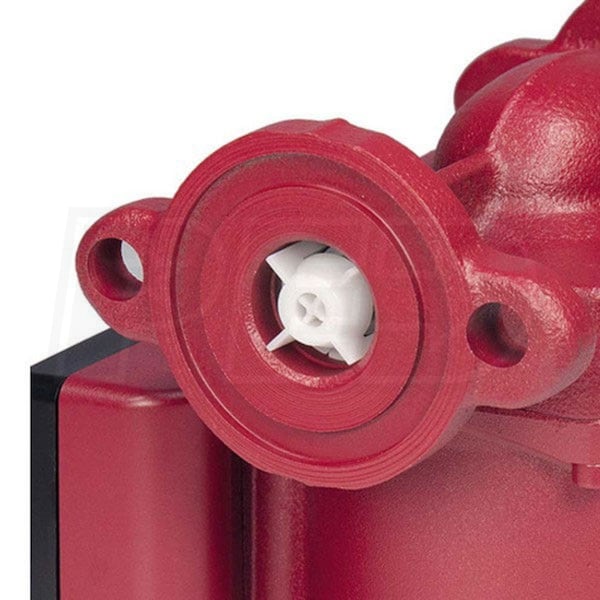

- Durable Cast Iron Construction
- The Grundfos UPS15-58FC is crafted from cast iron, which gives the pump both extended lifespan and protection against corrosion.
- Whisper Quiet Operation
- The UPS15-58FC pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
- Resilient Wet-Rotor Fluid Movement
- The wet rotor design of the UPS15-58FC lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.

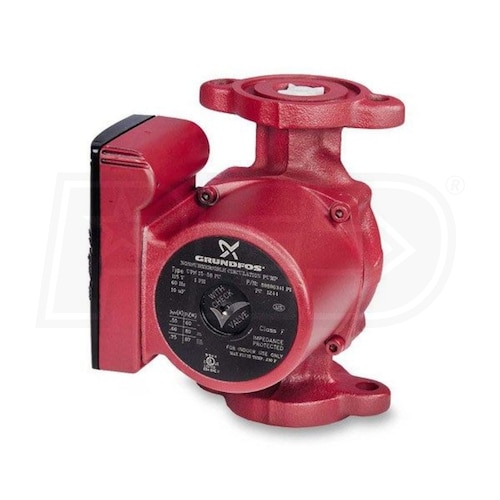

Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UPS15-58FC is a three speed circulator with an integrated flow check valve, limiting water flow to a single direction. Solid cast iron construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
Specifications
General Information
Product Line
UPS15-58
Motor Type
Multi-Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Cast Iron
Drive Type
Wet Rotor
UPC
05700395855203
Additional Model Numbers
59896341, UPS 15-58FC
Performance
Maximum Head
19.4 Feet
Maximum Flow Rate
17.2 GPM
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
1/25
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.75 Amps
Dimensions
Product Height
5 1/4 Inches
Product Width
4 3/16 Inches
Product Depth
6 1/2 Inches
Product Weight
7 Pounds
Flange Connection
GF 15/26
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Features
Features
- Durable Cast Iron Construction
- The Grundfos UPS15-58FC is crafted from cast iron, which gives the pump both extended lifespan and protection against corrosion.
- Whisper Quiet Operation
- The UPS15-58FC pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
- Resilient Wet-Rotor Fluid Movement
- The wet rotor design of the UPS15-58FC lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UPS15-58FC is a three speed circulator with an integrated flow check valve, limiting water flow to a single direction. Solid cast iron construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
Specifications
General Information
Product Line
UPS15-58
Motor Type
Multi-Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Cast Iron
Drive Type
Wet Rotor
UPC
05700395855203
Additional Model Numbers
59896341, UPS 15-58FC
Performance
Maximum Head
19.4 Feet
Maximum Flow Rate
17.2 GPM
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
1/25
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.75 Amps
Dimensions
Product Height
5 1/4 Inches
Product Width
4 3/16 Inches
Product Depth
6 1/2 Inches
Product Weight
7 Pounds
Flange Connection
GF 15/26
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Product Specs
+−
Specifications
General Information
Product Line
UPS15-58
Motor Type
Multi-Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Cast Iron
Drive Type
Wet Rotor
UPC
05700395855203
Additional Model Numbers
59896341, UPS 15-58FC
Performance
Maximum Head
19.4 Feet
Maximum Flow Rate
17.2 GPM
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
1/25
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.75 Amps
Dimensions
Product Height
5 1/4 Inches
Product Width
4 3/16 Inches
Product Depth
6 1/2 Inches
Product Weight
7 Pounds
Flange Connection
GF 15/26
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Bob, the Heating Product Expert
+−
What position of the motor speed switch on this pump is for the low speed?
Sasha
from New York
April 05, 2016
Answer
Fully counter-clockwise is the low speed and turning clockwise will increase the pump speed. The manufacturer says it is important to start the motor in high speed and decrease after pump is running. "After a long shutdown period, multi-speed pumps should be started on speed 3 and then adjusted to the regular setting."
+−
How much electricity does this pump use?
MARC
from Michigan
March 08, 2016
Answer
The maximum amp. draw is .75 amps. The three speeds use .55, .66 and .75 respectively. or the equivalent of approximately a 60 watt, a 75 watt and a 100 watt light bulb. It is a 115volt unit.
