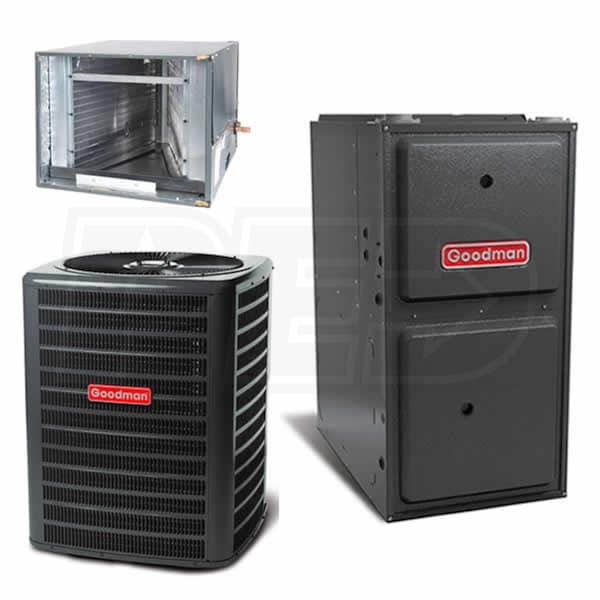

Goodman - 3.0 Ton Cooling - 120k BTU/Hr Heating - Heat Pump + Furnace Kit - 14.0 SEER - 96% AFUE - For Horizontal Installation

Goodman - 3.0 Ton Cooling - 120k BTU/Hr Heating - Heat Pump + Furnace Kit - 14.0 SEER - 96% AFUE - For Horizontal Installation
Our Price
Compare Prices
Shipping Info
Model: GSZ1436GMEC96120H
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (2)
Write A Review
$3,390.00
Only 3 In-Stock
Ships Tuesday, Dec 11th
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Cooling Capacity (Tons) ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
Furnace Capacity (BTU/h)
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Add-Ons

Only 3 In-Stock
Ships Tuesday, Dec 11th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    A Goodman high efficiency heat pump and furnace package is the perfect way to upgrade your home's HVAC system. This kit contains a GSZ heat pump with an advanced coil design to maximize efficiency. The heat pump is paired with a two stage GMEC furnace equipped with an ECM multi-speed motor. This pair was specifically chosen to provide high efficiency comfort, year round. A cased coil is included, making this kit an affordable, efficient, whole home solution.
  • Quiet Comfort
  • The wire fan discharge grille and condenser fan motor of the DSZC line were designed to reduce noise levels without compromising performance. This model also has a high-capacity discharge muffler and a high-density foam sound blanket.
  • SmartShift
  • Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives this unit a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operations.
  • UltraTech Compressor
  • A two-stage Copeland UltraTech scroll compressor provides the DSZC with incredibly reliable refrigerant flow. The second stage increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Condensate Management
  • The CHPF features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operational.
  • Advanced Heat Exchanger Design
  • The GMEC furnace employs a dual-diameter tubular heat exchanger design. Aluminized steel is used in construction for efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance dependability and longevity.
  • Secondary Heat Exchanger
  • This furnace produces additional heat without using more fuel by directing combustion gases through a secondary heat exchanger before they are vented. To prevent damage, this secondary heat exchanger is made of corrosion-resistant stainless steel.
  • Multi-Speed ECM Motor
  • The GMEC comes equipped with a leading edge ECM motor with multi-speed functionality. This allows the furnace to operate at more efficient capacities than a standard PSC motor based on heating demands.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Includes
    • (1) Goodman GSZ14 - 3 Ton - Heat Pump - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (GSZ140361)
    • (1) Goodman GMEC96 - 120k BTU - Two-Stage Gas Furnace - 96% AFUE (GMEC961205DN)
    • (1) Goodman CHPF - 4-5 Ton - Horizontal A Coil - Cased - 24.5" Width Cabinet (CHPF4860D6)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
Specifications
General Information
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling and Heating
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
35000 BTU
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Nominal Heating Capacity
120000 BTU
Nominal Cooling Capacity
36000 BTU
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
HSPF ? HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.5
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
96 %
Dimensions
Shipping Weight
430 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7995355
GSZ140361 Specifications
General Information
Type
Heat Pump
Product Line
GSZ14
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling and Heating
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages ? Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Nominal Capacity
36000 BTU
Heating Capacity
36000 BTU
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
74 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20.4 Amps
Recommended Breaker Size
35 Amps
Dimensions
Product Height
36 1/4 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
183 Pounds
Shipping Weight
199 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
3/4 Inch
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
GMEC961205DN Specifications
General Information
Type
Gas Furnace
Product Line
GMEC96
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Two Stage
Blower Type ? Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
ECM Multi-Speed
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
Performance
Nominal Heating Capacity
120000 BTU
High Fire Input
120000 BTU
High Fire Output
115200 BTU
Low Fire Input
84000 BTU
Low Fire Output
80640 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
96 %
Maximum Air Flow
2000 CFM
Low NOx Emissions ? NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
13.3 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 Inches
Product Height
34 1/2 Inches
Product Width
24 1/2 Inches
Product Depth
28 3/4 Inches
Shipping Weight
154 Pounds
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7423790
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
20 Years
CHPF4860D6 Specifications
General Information
Type
Evaporator Coil
Product Line
CHPF
Refrigerant Type
R-22 or R-410a
Casing
Cased
Shape
A Coil
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4-5 Tons
Nominal Minimum Cooling Capacity
48000 BTU
Nominal Cooling Capacity
60000 BTU
Dimensions
Liquid Connection Size
3/8 Inch
Suction Connection Size
7/8 Inch
Product Height
24 1/2 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Shipping Weight
77 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    A Goodman high efficiency heat pump and furnace package is the perfect way to upgrade your home's HVAC system. This kit contains a GSZ heat pump with an advanced coil design to maximize efficiency. The heat pump is paired with a two stage GMEC furnace equipped with an ECM multi-speed motor. This pair was specifically chosen to provide high efficiency comfort, year round. A cased coil is included, making this kit an affordable, efficient, whole home solution.
  • Quiet Comfort
  • The wire fan discharge grille and condenser fan motor of the DSZC line were designed to reduce noise levels without compromising performance. This model also has a high-capacity discharge muffler and a high-density foam sound blanket.
  • SmartShift
  • Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives this unit a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operations.
  • UltraTech Compressor
  • A two-stage Copeland UltraTech scroll compressor provides the DSZC with incredibly reliable refrigerant flow. The second stage increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Condensate Management
  • The CHPF features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operational.
  • Advanced Heat Exchanger Design
  • The GMEC furnace employs a dual-diameter tubular heat exchanger design. Aluminized steel is used in construction for efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance dependability and longevity.
  • Secondary Heat Exchanger
  • This furnace produces additional heat without using more fuel by directing combustion gases through a secondary heat exchanger before they are vented. To prevent damage, this secondary heat exchanger is made of corrosion-resistant stainless steel.
  • Multi-Speed ECM Motor
  • The GMEC comes equipped with a leading edge ECM motor with multi-speed functionality. This allows the furnace to operate at more efficient capacities than a standard PSC motor based on heating demands.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Includes
    • (1) Goodman GSZ14 - 3 Ton - Heat Pump - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (GSZ140361)
    • (1) Goodman GMEC96 - 120k BTU - Two-Stage Gas Furnace - 96% AFUE (GMEC961205DN)
    • (1) Goodman CHPF - 4-5 Ton - Horizontal A Coil - Cased - 24.5" Width Cabinet (CHPF4860D6)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
