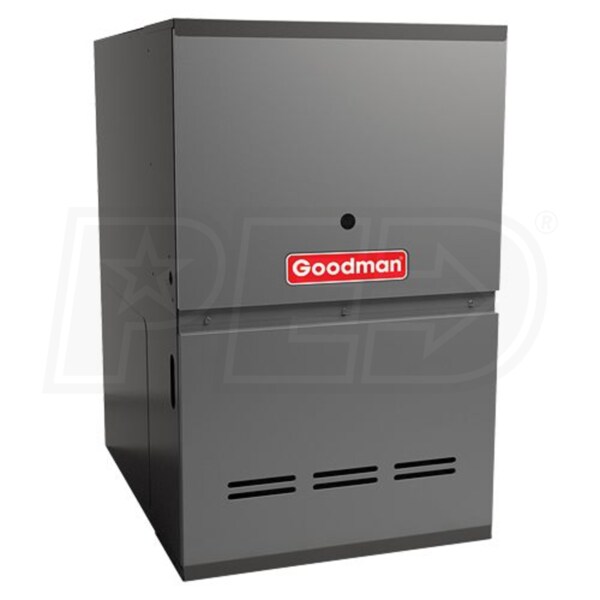

Goodman GCVC80 - 80k BTU - Two-Stage Gas Furnace - 80% AFUE

Model:

GCVC80803BX

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
View Goodman GCVC80 - 80k BTU - Two-Stage Gas Furnace - 80% AFUE
Model:
GCVC800803BX
$1,426.00
Factory-Direct
Goodman GCVC80 - 80k BTU - Two-Stage Gas Furnace - 80% AFUE
Goodman GCVC80 - 80k BTU - Two-Stage Gas Furnace - 80% AFUE
Model: GCVC80803BX
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Goodman's GCVC80 furnaces feature high-quality construction and efficient operation at a great value. The GCVC80 is equipped with an advanced variable-speed blower motor, which scales circulation to the specific demands of your application in real-time. The GCVC80 was designed with multiple options for the unit's gas, electric, and venting connections and orientation, ensuring a painless and quick installation. It even features a self-diagnosing control board that makes maintenance a breeze. If you're looking for consistent comfort and incredible efficiency from a two-stage furnace, it's tough to beat Goodman's GCVC80.
  • Advanced Heat Exchanger Design
  • The GCVC80 furnace employs a reliable heavy-duty tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
  • Variable Speed ECM Motor
  • The GCVC80 features an efficient and quiet variable speed motor that ramps up or down according to the heating or cooling demand, providing accurate temperature control and keeping money spent on utility bills in your pocket.
  • Quiet Comfort
  • The blower and gas valve of the GCVC80 were selected for their incredibly low sound levels. Additionally, this unit offers an airflow system and fan speed options that allow it to operate quietly while providing consistent comfort.
  • Secure Cabinet
  • All GCVC80 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is insulated to prevent heat loss and the return side of the cabinet is solid and airtight.
  • ComfortBridge Technology
  • This furnace is equipped with Goodman's ComfortBridge technology that continuously monitors system performance for customized indoor comfort.
  • Extended Warranty
  • Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GCVC80803BX
General Information
Type
Gas Furnace
Product Line
GCVC80
Fuel Type Learn More
Natural Gas
Vent Type Learn More
Chimney Vent
Modulating/Staging Learn More
Two Stage
Blower Motor
ECM Variable-Speed
Configuration Learn More
Downflow/Horizontal
Gas Conversion Kit
Available
Installation Available
Yes
UPC
663051567290
Performance
AFUE Learn More
80 %
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
64000 BTU
Low Fire Input
56000 BTU
Low Fire Output
44800 BTU
Maximum Air Flow
1200 CFM
Ultra Low NOx Emissions Learn More
No
Low NOx Emissions Learn More
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.75 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
4 Inches
Cabinet Width
17 1/2 Inches
Product Height
33 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 Inches
Product Weight
109 Pounds
Shipping Weight
109 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
202274190
Warranty Information
Unit Replacement Warranty
10 Years
Parts Warranty Learn More
10 Years
Heat Exchanger Warranty
Lifetime Years
