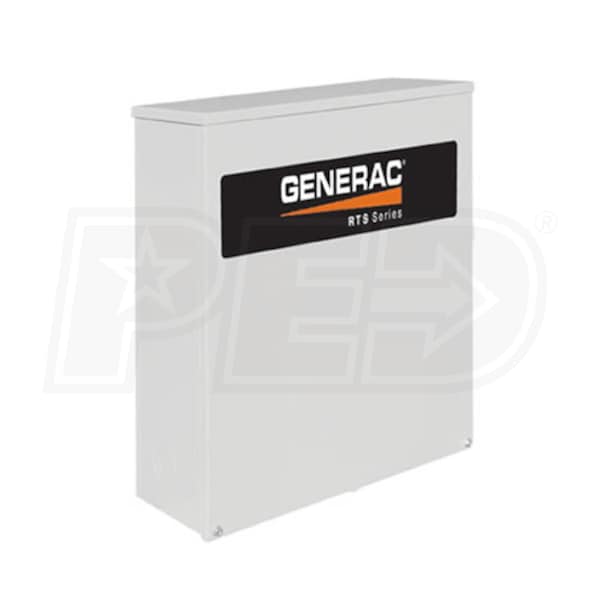

Generac 400-Amp Automatic Transfer Switch (120/240V 3-Phase)

Generac 400-Amp Automatic Transfer Switch (120/240V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: RTSN400J3
$1,939.00
$324 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Add-Ons
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Generac 3-Phase Automatic Transfer Switch
  • Only works with Generac 120/240V 3-Phase generators
  • Fully Automatic Operation
  • Standard Installation
  • May require a sub-panel or disconnect for serviceability
  • Larger Applications
  • Nema 3R Aluminum Enclosure
  • For Use With Generac Generators Only
  • UL Listed 2200
Specifications
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
107 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
36 Inches
Product Width
24 Inches
Product Height
10 Inches
UPC
696471114430
Features
Features
  • Generac 3-Phase Automatic Transfer Switch
  • Only works with Generac 120/240V 3-Phase generators
  • Fully Automatic Operation
  • Standard Installation
  • May require a sub-panel or disconnect for serviceability
  • Larger Applications
  • Nema 3R Aluminum Enclosure
  • For Use With Generac Generators Only
  • UL Listed 2200
Specifications
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
107 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
36 Inches
Product Width
24 Inches
Product Height
10 Inches
UPC
696471114430
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
107 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
36 Inches
Product Width
24 Inches
Product Height
10 Inches
UPC
696471114430
