Fujitsu - 30k BTU Cooling + Heating - Multi-Position Air Handler System - 18.5 SEER

Model:

30RGLXM

Write a Review
$4,475.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
In-Stock
Ships Tuesday, May 18th
Shipping to60601
$56 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Fujitsu - 30k BTU Cooling + Heating - Multi-Position Air Handler System - 18.5 SEER
Fujitsu - 30k BTU Cooling + Heating - Multi-Position Air Handler System - 18.5 SEER
Model: 30RGLXM
$4,475.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 30RGLXM air handling system. The multi-position, space saving AMUG30LMAS air handler is paired with a revolutionary side discharge outdoor unit to provide you with high efficiency and quiet operation.
  • Multi-Position Installation
  • With a true multi-position design, install the AMUG30LMAS up flow, down flow or horizontal.
  • Inverter Technology
  • The 30RGLX outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change. This enables the system to maintain a more stable temperature.
  • Wi-Fi Compatible
  • The 30RGLXM can be controlled from anywhere using your mobile device or smart home device. Download the FGLair app to easily control your system from anywhere.
  • Product Includes

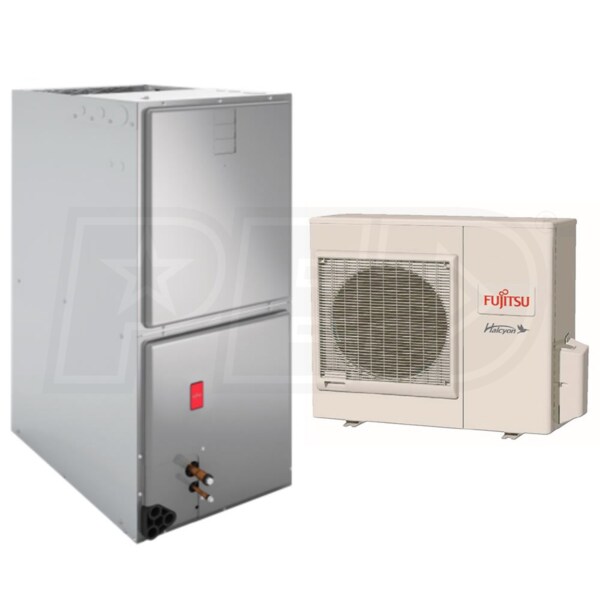

    • (1) Fujitsu - 30k BTU - Outdoor Condenser - For Single Zone (AOU30RGLX)
    • (1) Fujitsu - 30k BTU - Multi-Position Air Handler - Single Zone (AMUG30LMAS)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. A thermostat is not included and is required. Please see the Accessories Tab to purchase.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Fujitsu - 30k BTU - Outdoor Condenser - For Single Zone (AOU30RGLX)
  • (1) Fujitsu - 30k BTU - Multi-Position Air Handler - Single Zone (AMUG30LMAS)
30RGLXM
General Information
Type
Ducted Vertical Air Handler
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
30
Outdoor Unit Size
30000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Heating Capacity
32000 BTU
SEER Learn More
18.5
EER Learn More
10.1
HSPF Learn More
10.3
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-5 F
Minimum Outdoor Temperature for Cooling
-5 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
16.1 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Certifications
AHRI Certified
Yes
AHRI Reference Number
205123808
AOU30RGLX
General Information
Type
Outdoor Condenser
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Outdoor Unit Size
30000 BTU
Performance
Cooling BTU
30000
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
AMUG30LMAS
General Information
Type
Ducted Vertical Air Handler
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
30
Installation Location
Indoor
Performance
Cooling BTU
30000
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
