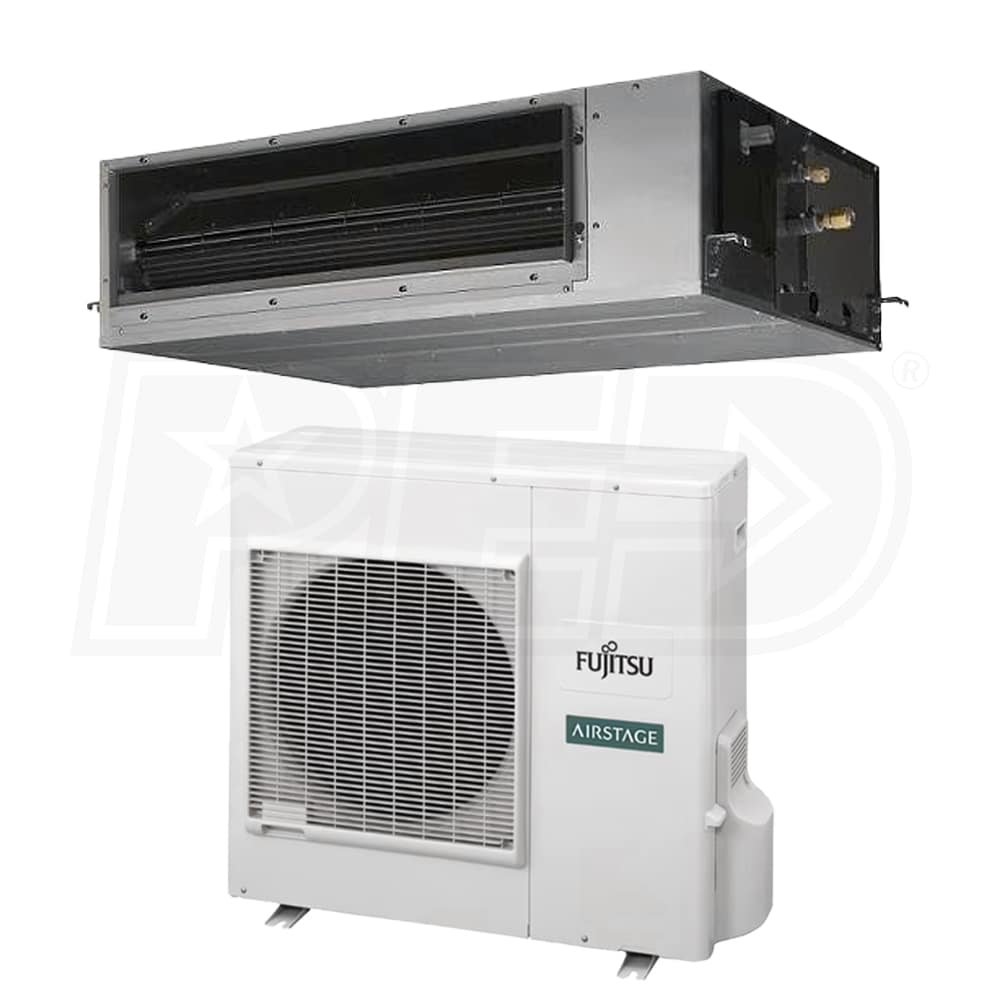

Fujitsu - 30k BTU Cooling + Heating - Mid-Static Concealed Duct Air Conditioning System - 16.5 SEER

Model:

30RGLXD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Fujitsu - 30k BTU Cooling + Heating - Mid-Static Concealed Duct Air Conditioning System - 16.5 SEER
Fujitsu - 30k BTU Cooling + Heating - Mid-Static Concealed Duct Air Conditioning System - 16.5 SEER
Model: 30RGLXD
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 30RGLXD concealed duct mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the 30RGLXD mini split system is a reliable and efficient choice. The concealed duct indoor unit installs easily in ductwork, where it can provide comfort without disrupting the design of your room. The Fujitsu 30RGLXD is a low-profile addition to any home or business.
  • Inverter Technology
  • The AOU30RGLX outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change.
  • Low Ambient Heating
  • Fujitsu's low temperature heating technology allows this condenser to safely maintain its rated capacity in outdoor temperatures as low as -5 degrees Fahrenheit. The ARU30RGLX can operate in heating mode in conditions as low as -5 degrees Fahrenheit.
  • Product Includes

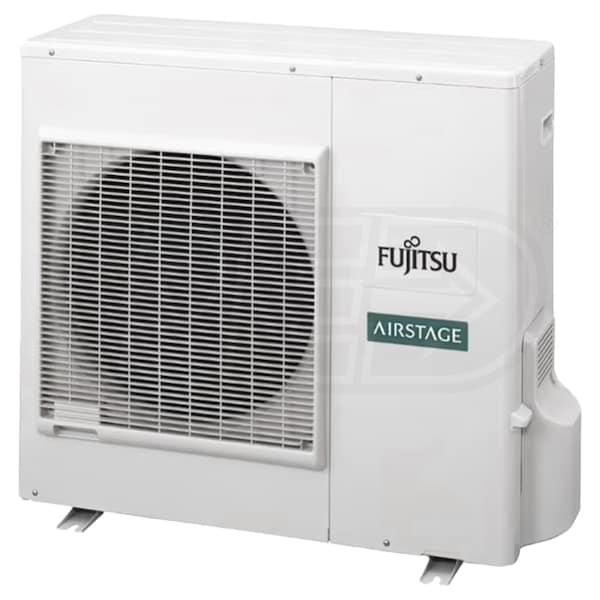

    • (1) Fujitsu - 30k BTU - Outdoor Condenser - For Single Zone (AOU30RGLX)
    • (1) Fujitsu 30k Mid Static Concealed Duct - Single Zone Only (ARU30RGLX)
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Fujitsu - 30k BTU - Outdoor Condenser - For Single Zone (AOU30RGLX)
  • (1) Fujitsu 30k Mid Static Concealed Duct - Single Zone Only (ARU30RGLX)
30RGLXD
specs product image PID-123396
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Concealed Duct
Product Category
Mini Split Heat Pump System
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Installation Location
Indoor
Outdoor Unit Size
30000 BTU
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Heating Capacity
32000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.5
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
10.6
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.4
Maximum Air Flow
1001 CFM
Minimum Air Flow
630 CFM
Minimum Operating Temperature
-5 F
Minimum Sound Level
29 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
37 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
-5 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20.8 Amps
Recommended Breaker Size
30 Amps
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
5/8 Inch
Product Weight
227 Pounds
Shipping Weight
262 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
202537548
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
AOU30RGLX
General Information
Type
Outdoor Condenser
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Outdoor Unit Size
30000 BTU
Performance
Cooling BTU
30000
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ARU30RGLX
General Information
Type
Concealed Duct
Product Line
Halcyon
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30000
Installation Location
Indoor
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Air Flow
1001 CFM
Minimum Air Flow
630 CFM
Minimum Sound Level
29 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
37 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
